P3 Flex LED Video Wall
This customer wanted to purchase flex LED video wall for the shopping mall to beautify the inner room and attract more customer traffic. Therefore, we recommended our P3 flexibel LED module to him, which is perfect for indoor viewing distance, and has high-standard visual effects and product quality.
Xingwei provides high-quality flex LED video walls to customers in various methods including flexible scrolling LED display, flexible LED display curtain, and so on.
The flexible LED display we provide owns high-standard components such as professional driving IC, high-quality refresh rate, great color uniformity, great flexibility, etc. The flexible LED module sizes include three types including 240*120mm, 320mm*160mm, and 256*128mm.

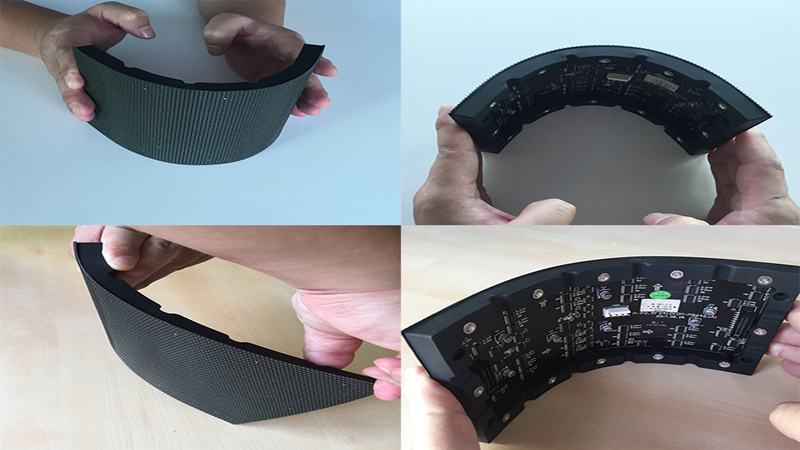

High Flexibility
The high flexibility allows these flexible LED modules higher potentials to achieve different sizes and shapes, which makes LED display screens constructed by them freer and more suitable for different structures and rooms of the bearing buildings.
Based on this specialty, they can give enjoyable visual effects to viewers but not make any concession of functions themselves at the same time.
Multiple Availble Pixel Pitches
Xingwei provides flexible LED display screen with various pixel pitches including P1.25, P1.5625, P2, P2.5, P3, P4, P5, and so on. The multiple choices make Xingwei flexible LED screens both suitable for indoor and outdoor applications and achieving ideal visual effects.
Frontal Services Avaliable
It adopts highly magnetic magets, which allows frontal services for the LED display screen. This installation and maintenance method can facilitate the whole process of installation a lot, saving time and energy for users. Only serveral seconds, you can disassemble or assemble the module well.

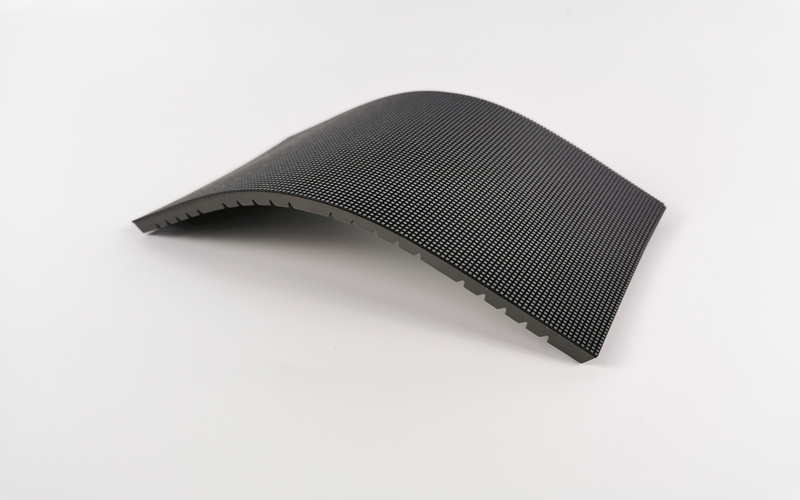

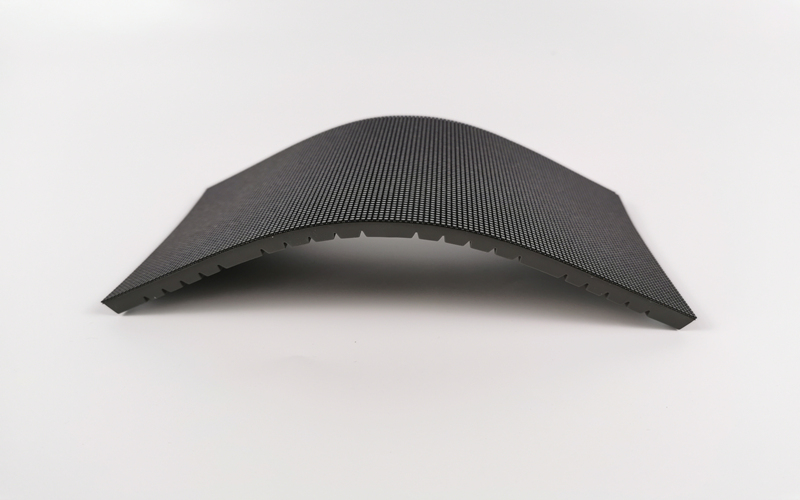

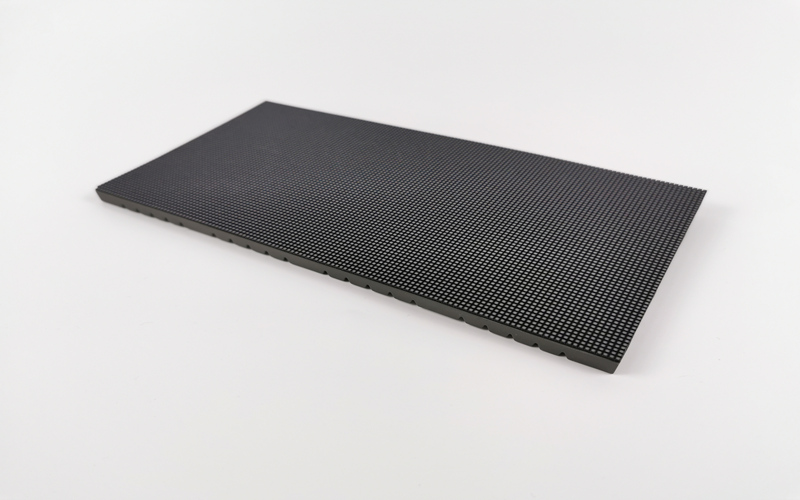

Product Images
Specification
| Pixel Pitch | LED Type | Density（dot/㎡） | Module Pixel | Module Size（mm） | Driving Mode | Brightness(Nits) |
| 240*120mm Series | ||||||
| 1.25mm | SMD1010 | 640000 | 192*96 | 240*120mm | 1/64Scan | 700-900 |
| 1.5625mm | SMD1212 | 409600 | 128*96 | 200*150mm | 1/48Scan | 700-900 |
| 1.579mm | SMD1212 | 409600 | 152*76 | 240*120mm | 1/38Scan | 700-900 |
| 1.667mm | SMD1212 | 360000 | 144*72 | 240*120mm | 1/36Scan | 700-900 |
| 1.875mm | SMD1212 | 284444 | 128*64 | 240*120mm | 1/32Scan | 700-900 |
| 1.875mm | SMD1515 | 284444 | 128*64 | 240*120mm | 1/32Scan | 700-900 |
| 2mm | SMD1515 | 250000 | 120*60 | 240*120mm | 1/30Scan | 700-900 |
| 2.5mm | SMD1515 | 160000 | 96*48 | 240*120mm | 1/24Scan | 700-900 |
| 3mm | SMD2121 | 111111 | 80*40 | 240*120mm | 1/20Scan | 700-900 |
| 4mm | SMD2121 | 62500 | 60*30 | 240*120mm | 1/15Scan | 700-900 |
| 320*160mm Series | ||||||
| 1.86mm | SMD1212 | 288906 | 172*86 | 320*160mm | 1/43Scan | 700-900 |
| 2mm | SMD1515 | 250000 | 160*80 | 320*160mm | 1/40Scan | 700-900 |
| 2.5mm | SMD1515 | 160000 | 128*64 | 320*160mm | 1/32Scan | 700-900 |
| 3.076mm | SMD1515 | 105625 | 104*52 | 320*160mm | 1/26Scan | 700-900 |
| 5mm | SMD2121 | 40000 | 64*32 | 320*160mm | 1/16Scan | 700-900 |
| 256*128mm Series | ||||||
| 2mm | SMD1515 | 250000 | 128*64 | 256*128mm | 1/32Scan | 700-900 |
| 4mm | SMD2121 | 62500 | 64*32 | 256*128mm | 1/16Scan | 700-900 |
Xingwei offers our customers with high-quality flex LED video wall with multiple sizes and pixel pitches, which has excellent visual effect, reliable components and professional post-services and after-sales service. For more information, welcome contact us or turn to our LED FAQ page for more information!
