MA-Y SERIES LED SCREEN
MAY500 Series Rental LED Display
- 500*500mm LED Display Cabinet
- P2.604mm, P2.976mm, P3.91mm, P4.81mm
- Indoor or Outdoor is Available
- Front or Rear Dual Maintanance
- 3 Years Warranty and 5% Spare Part
MAY500 Series Rental LED Screen
Xingwei MAY 500 Series Indoor & outdoor led display is Xingwei latest rental LED display product with unique design and feature. the back cover is Removable the display visual effect is better, the image and video is more clean with uniformity color.

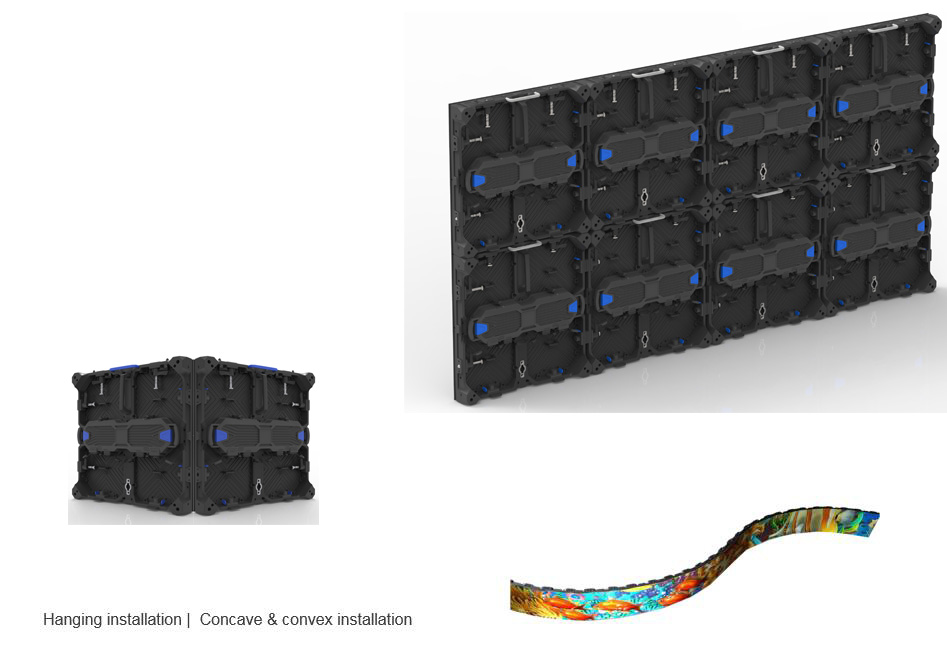

Put it in the shape you want - 90 Degree Curved LED Display
With the ability to be seamlessly spliced at a 45-degree angle, the LEEMAN Rental Cabinet offers a stunning, high-definition display that is sure to impress.
Seamless 3D Curved Visual Effect
Available in seamless curve cabinet, specially designed for walls with curves to deliver stunning and immersive visual experience.
LIGHTWEIGHT AND THIN

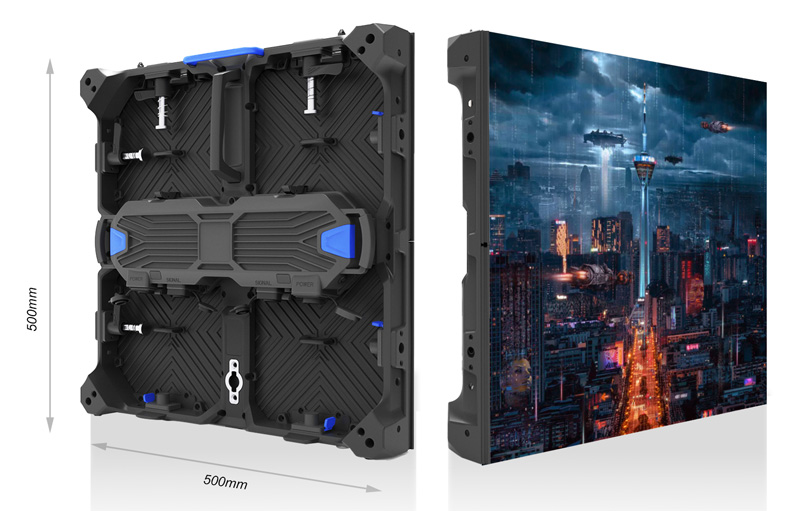

Xingwei MAY500 Series LED display cabinet is portable and good stability with weight of 7.1kg of indoor led display and 7.5kg of outdoor LED display, the cabinet thickness is only 80mm. the cabinet size is 500×500mm. the feature of lightweight make the LED display is easy to carry, transport and install,saving good amount of money on your labor costs.

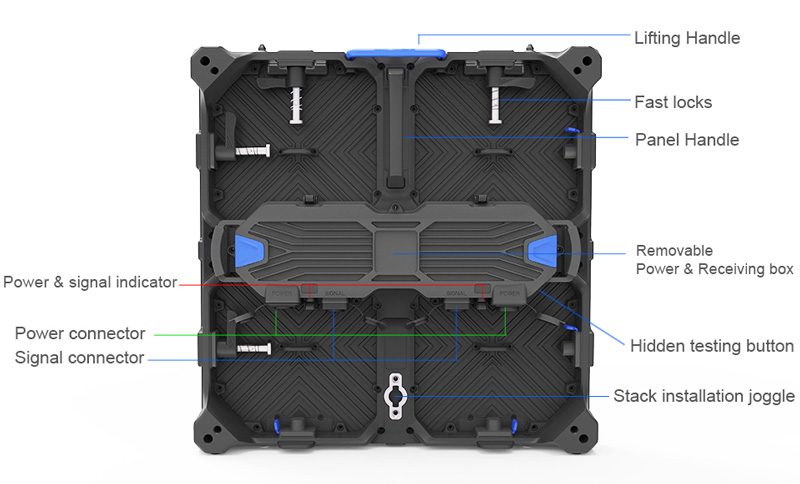

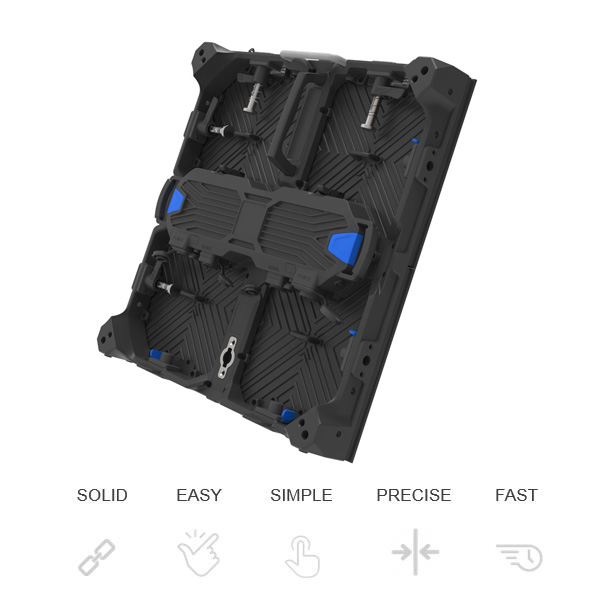

PERFECT STRUCTURE

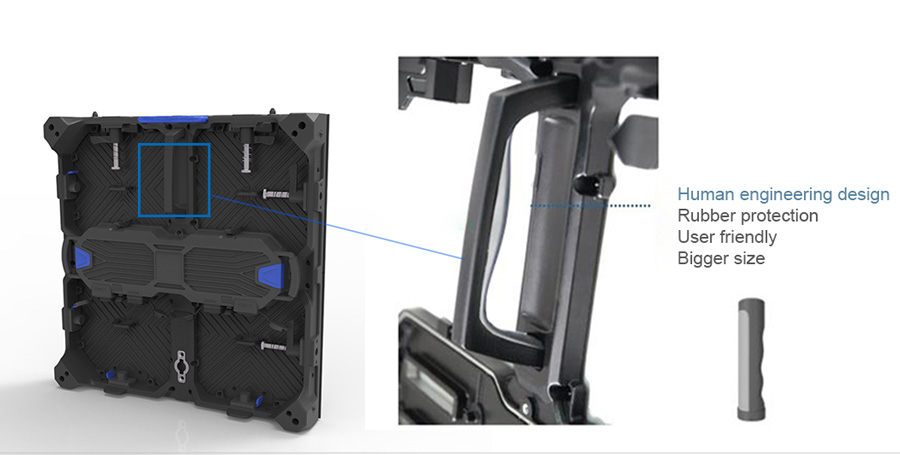

Xingwei MAY 500 Series LED display with perfect cabinet from lifting handle, fast locks, panel handle, removable power & receiving box,hidden test button, stack installation joggle, power & signal indicator, power connector, signal connector.

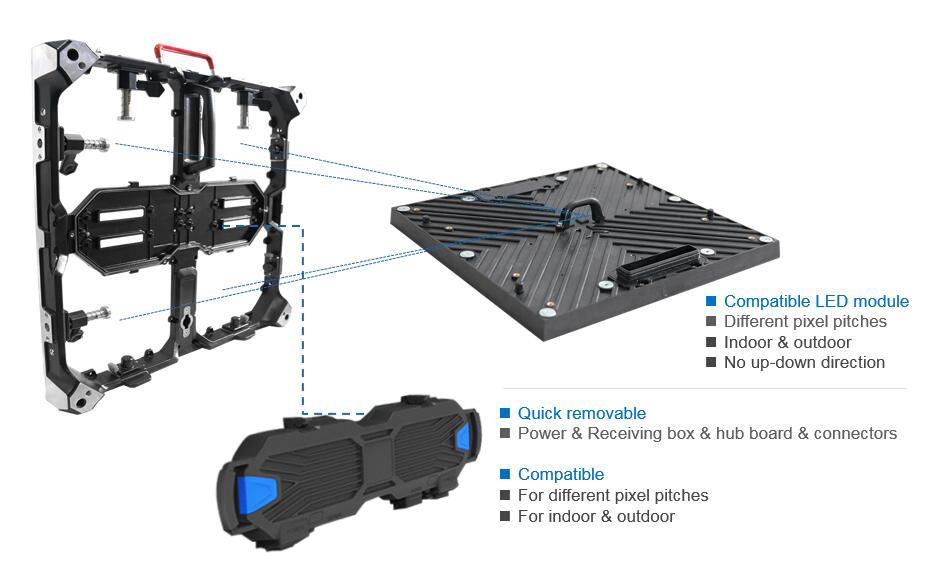

QUICK REMOVABLE

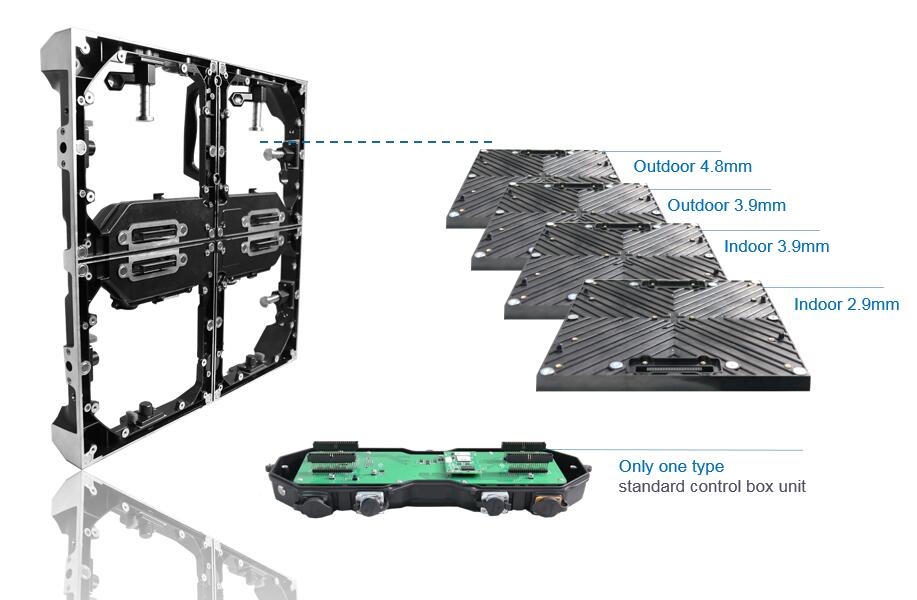

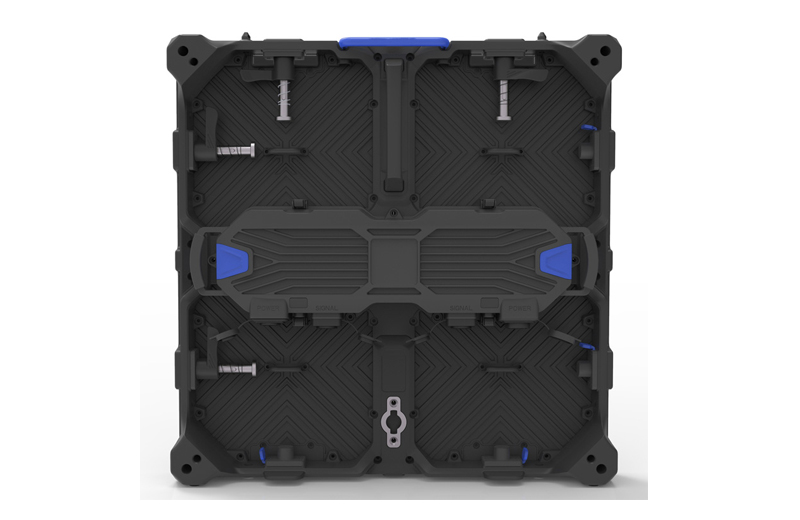

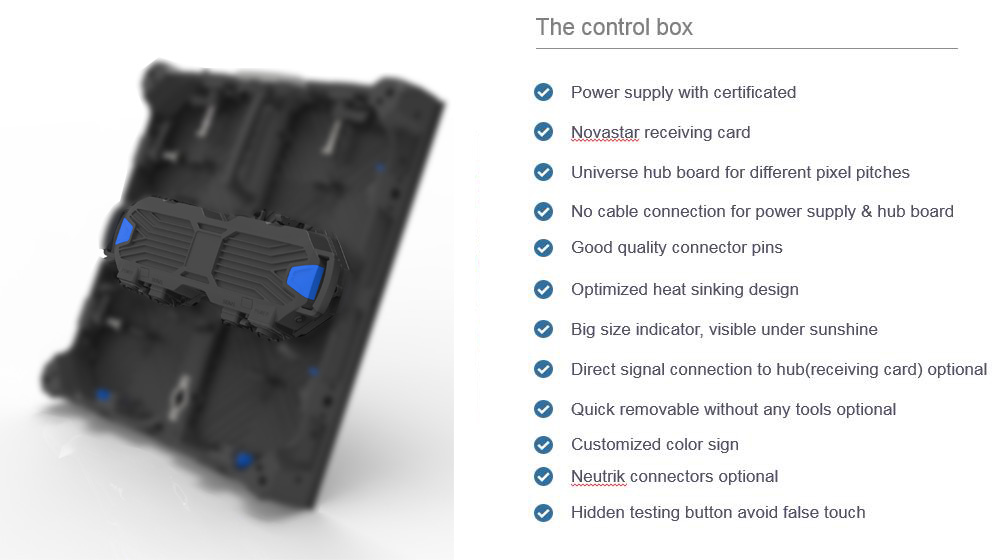

Xingwei MAY 500 Series LED Screen is designed with quick removable back cover for Power & Receiving box & hub board & connectors.the procuct is for different pixel pitches of indoor & outdoor installation.

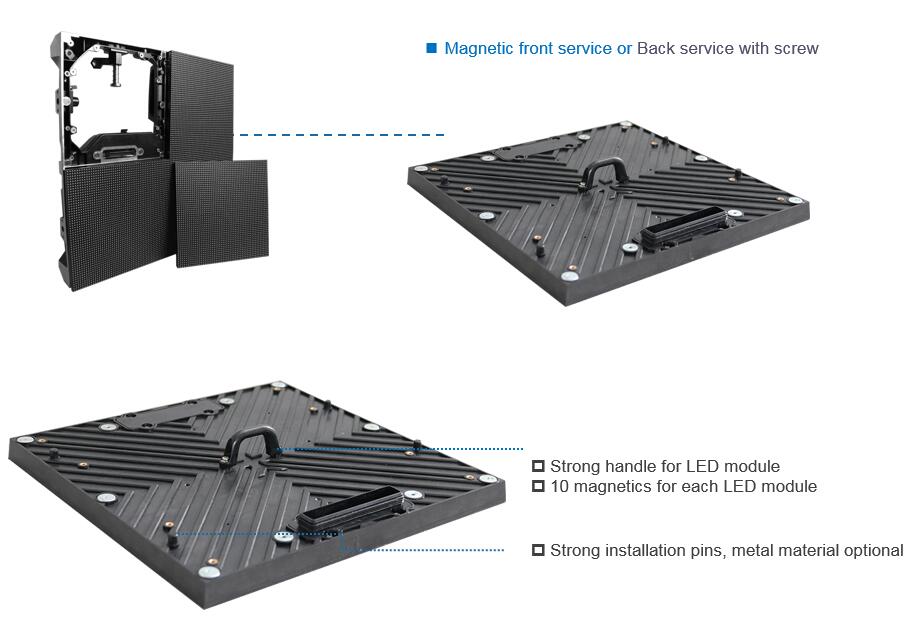

FRONT SERVICE OR BACK SERVICE

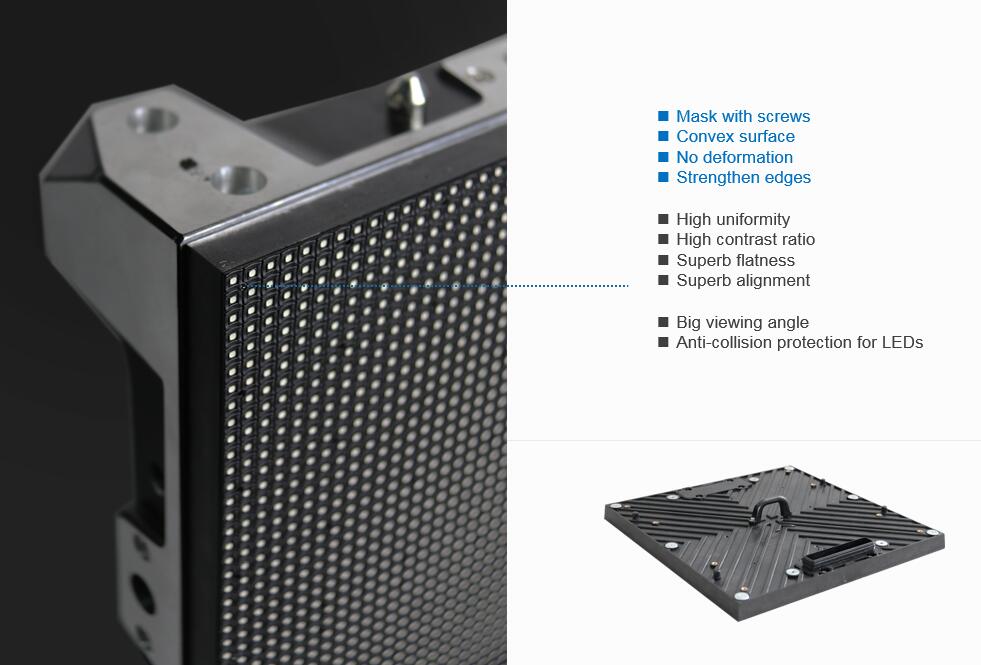

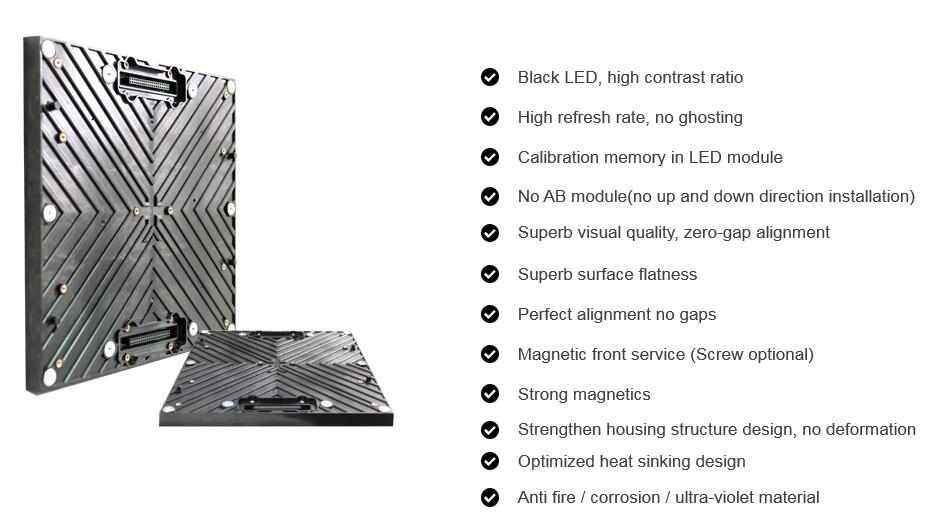

Xingwei MAY 500 Series LED Display is designed with Magnetic front service or Back service with screw. Strong handle for LED module.There are 10 magnetics for each led display module with strong installation pins.

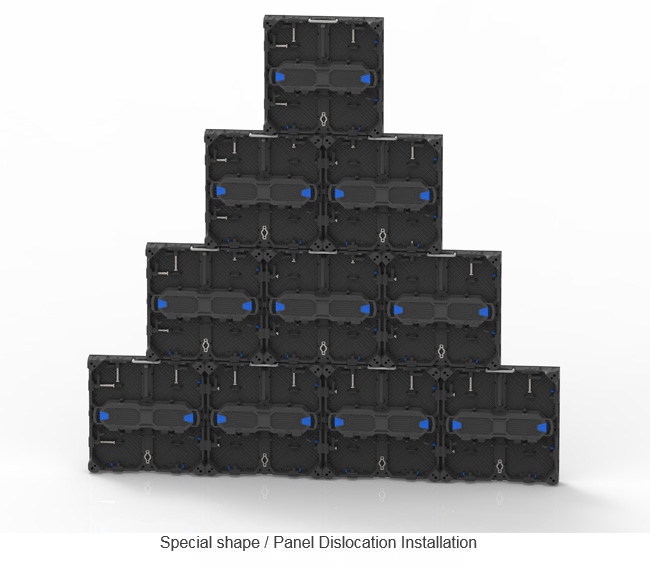

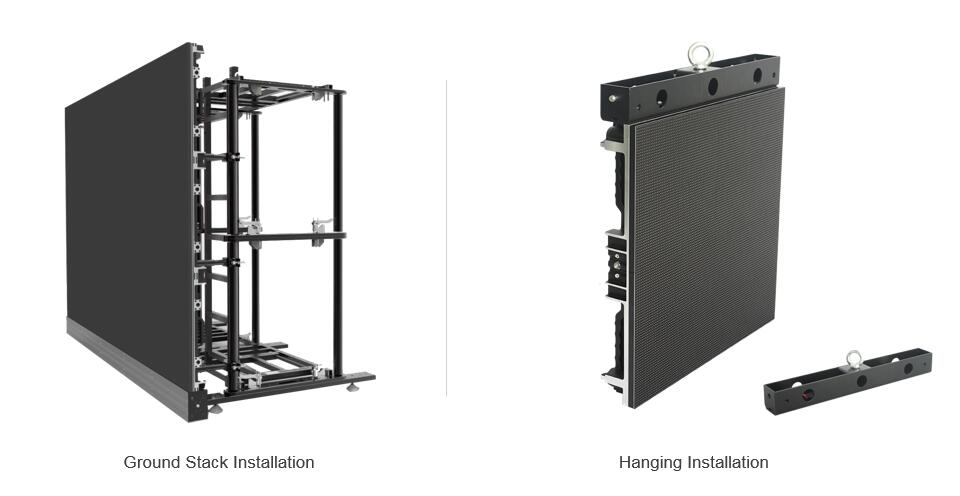

Flexible Installation
Thanks to the user-friendly cabinet design, MAY display can be either supported on an installation structure, fixed on wall with or without maintenance access, making application more flexible. It also has 500x1000mm dimension. You can use the 500x500 and 500x1000 together. They are compatible.
Specifications
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
|---|---|---|---|---|
| Pixels per cabinet | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) | 104×104 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |||
| Brightness | ≥1000 nits; | |||
| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Refresh rate | 960-1,920Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V / 50-60Hz | |||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||
| Dimensions | 500 x 500 x 80 mm (WxHxD)/ 19.6 x 19.6 x 3.14 inch (WxHxD) | |||
| Weight / Tile | 7.5 kg / 16.53 lbs | |||
| Serviceability | Front and back service | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
| Warranty | 2 years standard product warranty | |||
Tech Support
Xingwei LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
