In this post we are going to review Xingwei LED the latest rental LED screen series – ME series. It has many features that make it own high visual performance and high-cost effectiveness at the same time. The reasons that make us eagerly recommend the ME series to you are as follows, but not limited to:
Super high cost-effectiveness as an economic rental LED screen series;
Excellent screen body design, including thoughtful corner protectors, as well as lightweight design for convenient transportation and installation;
Versatile design available, capable of forming right-angle screens and curved installation;
Easy maintenance is ensured with front and rear maintenance options for indoor displays, and rear maintenance for outdoor LED displays;
Multiple pixel pitches are available, including P1.953, P2.604, P3.91, and more;
More......
Just see this introduction video below to know some details.
Click to Jump
1. Product Features

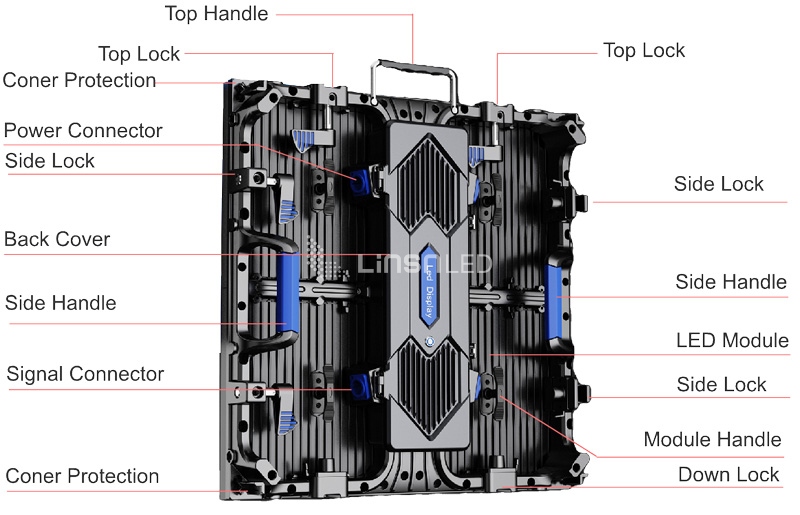

ME series rental LED screen supports two sizes – 500*500mm and 500*1000mm to meet various installation environments and spaces. The special corner protector can protect LEDs from damage with a flexible mechanism design. Moreover, the fast lock system includes top locks, side locks, and down locks making sure the cabinet connection is fast and safe. Also, ME LED cabinet supports both front and back maintenance for indoor LED screen and rear maintenance for outdoor screens. Portable and highly stable, weighing only 7.25kg for the 500*500mm cabinet and 12.5kg for the 500*1000mm cabinet, with a thickness of 80mm. The lightweight design allows for easy carrying, transportation, and installation of the LED display, effectively reducing labor costs.Two Sizes Available - 500*500/1000mm
Perfect Design with Corner Protector

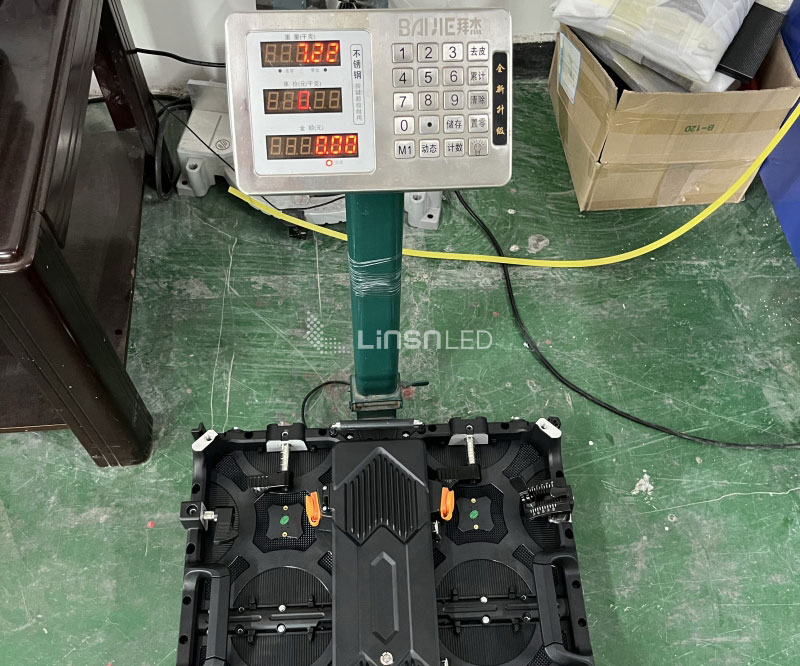

Super Light-weight and Thin

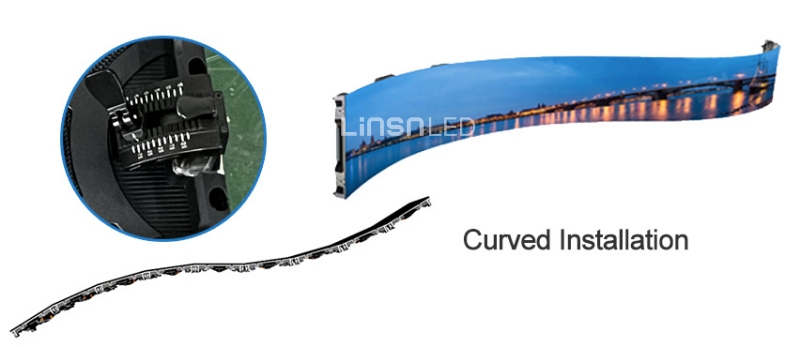

Curved Installation, Right-angle LED Screen Supported
To cater to diverse requirements, our LED display is specifically designed for curved installations. It can be curved at 5° intervals, ranging from -10° to 15°. Also, right-angle LED display is supported.
In order to create a circular LED display, a total of 36 cabinets are required. This design provides flexibility and allows for creativity in shaping your display to suit your specific needs!
High Cost-effective Rental LED Display
One notable feature of the ME series is its high cost-effectiveness, without compromising on image quality and operational performance.
It supports fine pixel pitch including P1.953, P2.604, and so on with a high refresh rate 3840-7,680Hz.
The brightness level of outdoor LED screens can reach 4500-5000 nits, and the brightness uniformity is>98%.
If you are looking for a cost-effective rental screen, don’t hesitate. Contact us to learn more about the ME series and its features！
2. Specification of ME Series
| Pixel pitch | 1.953mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm | |
|---|---|---|---|---|---|---|
| Pixels per cabinet (500*500mm) | 256×256 (HxV) | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) | 104×104 (HxV) | |
| Pixels per cabinet (500*1000mm) | 256×512 (HxV) | 192×384 (HxV) | 168×336 (HxV) | 128×256 (HxV) | 104×208 (HxV) | |
| LED lifetime | 100,000h | |||||
| Brightness | Indoor:600-800 nits, Outdoor:4500-5000 nits | |||||
| Module size | 250*250mm | |||||
| Module resolution | 128*128dots | 96*96dots | 84*84dots | 64*64dots | 52*52dots | |
| Refresh rate | 3840-7,680Hz | |||||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||||
| Brightness uniformity | >98% | |||||
| Dimming | 0-100% | |||||
| Grey Level | 14 bits | |||||
| Avg Power consumption | 400 W/m² | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² | |
| Max Power consumption | 720 W/m² | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² | |
| Operation power voltage | 100-240V / 50-60Hz | |||||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||||
| Operational humidity | 10-80% | |||||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||||
| Dimensions | 500 x 500 x 80 mm /500 x 1000 x 80 mm(WxHxD) | |||||
| Weight | 7.25kg(500 x 500mm cabinet)/ 12.5kg (500 x 1000mm cabinet) | |||||
| Serviceability | Frontal & Rear Service Indoor. Rear Service For Outdoor. | |||||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||||
| Warranty | 3 years standard product warranty | |||||
3. View of ME Series

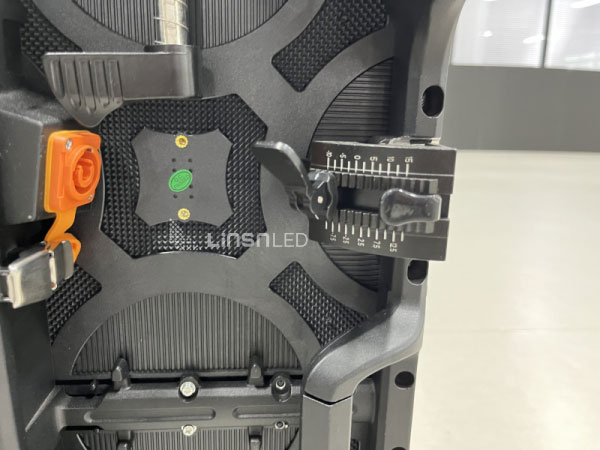

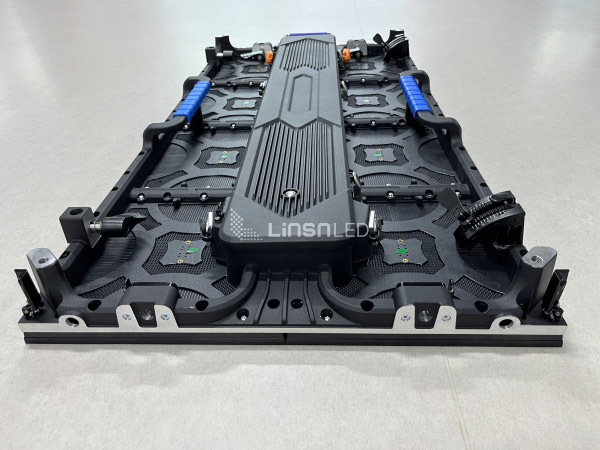

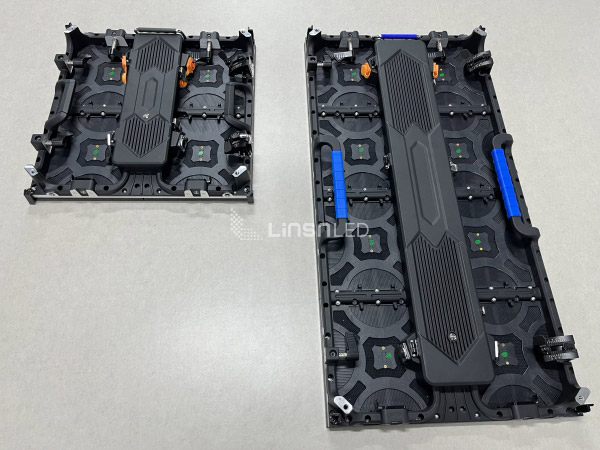

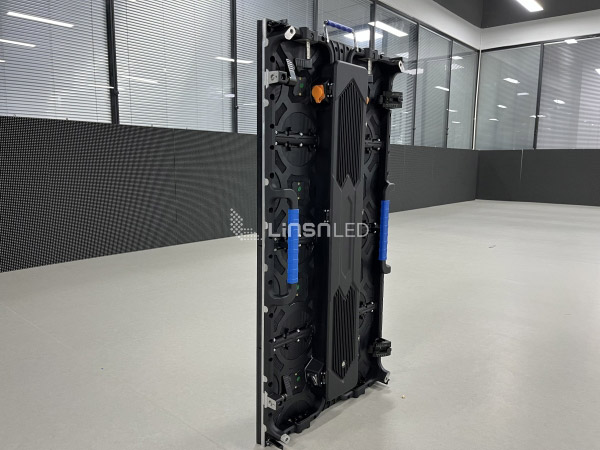

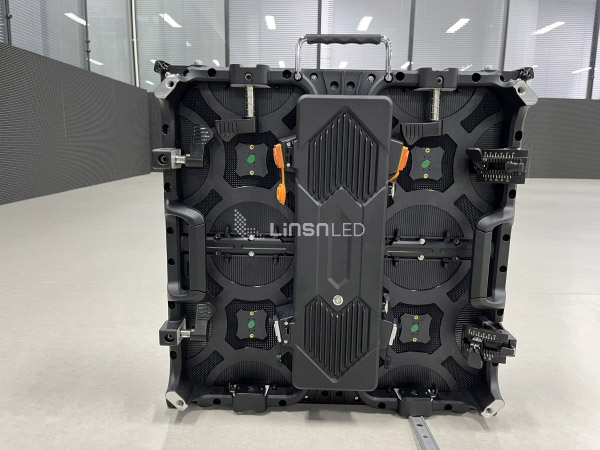

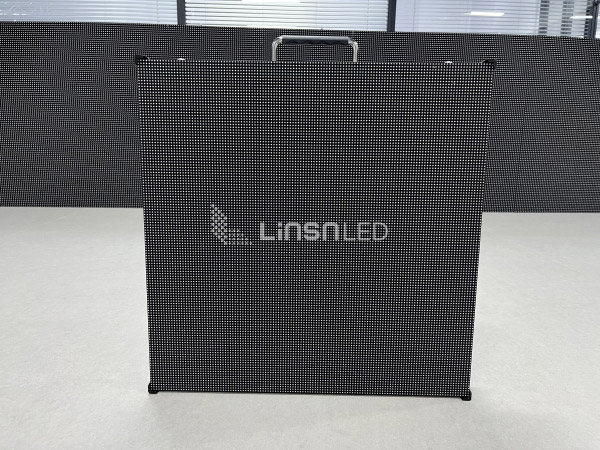

Front View Back View Two Sizes Compared 500*1000mm Cabinet 500*1000mm Cabinet Curved Lock
4. Aging Test
As you can see, the ME series offers high cost-effectiveness, excellent design, and strong display quality! Do you want to learn more information or get a detailed quotation? Simply fill out the simple form on the right side!
