N169S Series
16:9 600×337.5mm HD LED Display
- 600×337.5mm Size Cabinet
- SMD 3 in 1 LED Encapsulation technology
- Frontal Service Design for Easy Installation
- CE, RoHS, FCC Approved
- 3 Year Warranty and 5% Spare Part
Ultra HD Visual Effect
Single-point color correction technology, to achieve a true color reduction, smaller pixel pitch, the world is unfolds in your eyes.

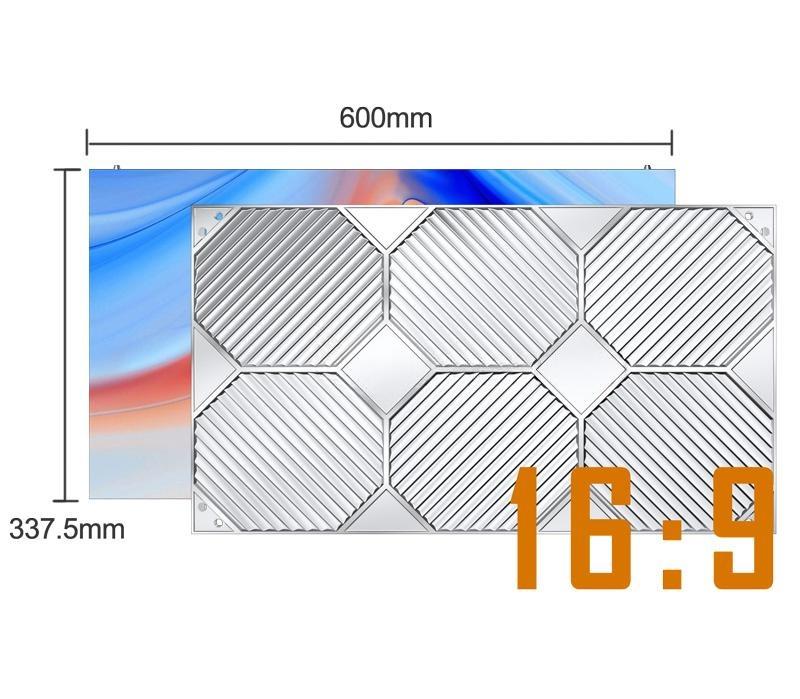

16:9 Ratio Design
Desighed as 16:9 ratio design with the size of 600*337.5mm dimention. excellent cabinet design with the feature of ultra light and ultra thin.

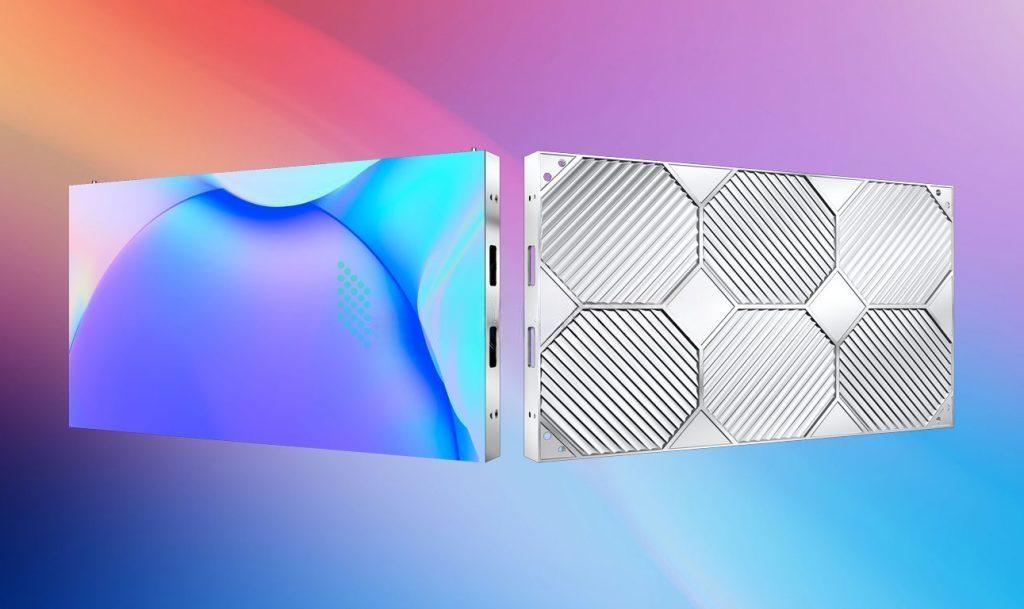

Perfect Cabinet Design
Perfect Cabinet Design with beautifull appearance and human layout,
fast installation and maintenance, pleasing to the eye with great visual experience.
Ultra LightWeight
Ultra Lightweight design with only 5.5kg, High precision aluminum cabinet frame make seamless splicing image and
video display,offering you the perfect visual experience you desire from any angles.
300x168.75mm Size Modules
Using high quality unique LED modules which Support module temperature detection, voltage detection, dot to dot correction and more.
Frontal Service Design
Frontal service design for LED receiving cards, HUB Cards, power supplies and LED modules. The LED modules is assembled in front with magnetic features.
High Flatness
Seamless Splicing, fast locking and simple internal wiring, can achieve fast maintenance and seamless connection,
the whole LED display has no gaps and can offer 16K, 8K, 4K, FHD seamless visual display.
Wide Viewing Angle
Viewing angle is up to 170° horizontal, providing a wide viewing angle to reach more target audience.
Specification
| Pixel Pitch (mm) | P0.93 | P1.25 | P1.56 | P1.87 |
|---|---|---|---|---|
| Model | 169-P0.93 | 169-P1.25 | 169-P1.56 | 169-P1.87 |
| Pixel Configuration | MiniLED | SMD1010 | SMD1010 | SMD1515 |
| Density (Pixels/㎡) | 1130000 | 640000 | 409600 | 284444 |
| Module Resolution (Pixel) | 320×180 | 240×135 | 192×108 | 160×90 |
| Module Size (mm) | 300×168.75 | 300×168.75 | 300×168.75 | 300×168.75 |
| Driving Mode (Duty) | 1/60 | 1/60 | 1/64 | 1/45 |
| Cabinet Size (mm) | 600×337.5 | 600×337.5 | 600×337.5 | 600×337.5 |
| Cabinet Weight (KG) | 5.7 | 5.7 | 5.7 | 5.7 |
| Brightness (CD/㎡) | 300~800 | 300~800 | 300~800 | 300~800 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | ≥14 | ≥14 | ≥14 | ≥14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | ≤ 500 | ≤ 500 | ≤ 500 | ≤ 400 |
| Avg. Power Consumption (W/㎡) | 100~180 | 100~180 | 100~300 | 100~180 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -10～+60 | -10～+60 | -10～+60 | -10～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP35 | IP35 | IP35 | IP35 |
Tech Support
Xingwei LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
