ME SERIES LED DISPLAY
- 500*500/1000mm LED Display Cabinet
- P1.953mm, P2.604mm, P2.976mm, P3.91mm, P4.81mm
- Support Right Angle Installation
- Frontal & Rear Service for Indoor. Rear Service for Outdoor
- 3 Years Warranty and 5% Spare Part

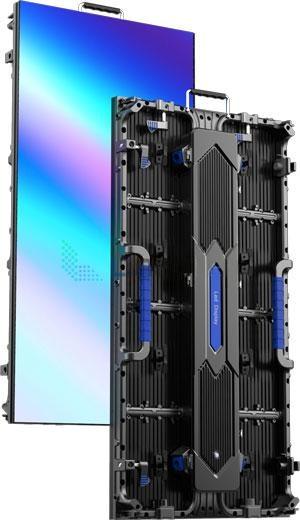

ME Series Rental LED Screen
Xingwei LED latest rental LED screen new design incorporates many aesthetic elements, adopts high-strength die-casting aluminum, and has better visual performance with high-definition.
Lightweight and Thin

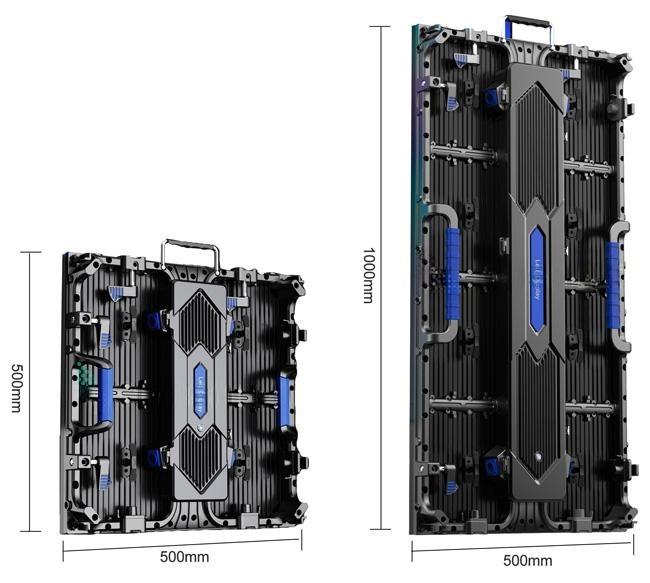

Portable and good stability with weight of only 7.25kg for 500*500 cabinet and 12.5kg for 500*1000 cabinet and a thickness of 80mm.
The feature of lightweight makes the LED display easy to carry,
transport and installation, saving a lot of money on your labor costs.
Perfect Structure
Xingwei has the domestic top design team, and the design innovation has its unique philosophy with several core technologies.
Innovative design, and avant-garde body lines, give you an extraordinary experience.

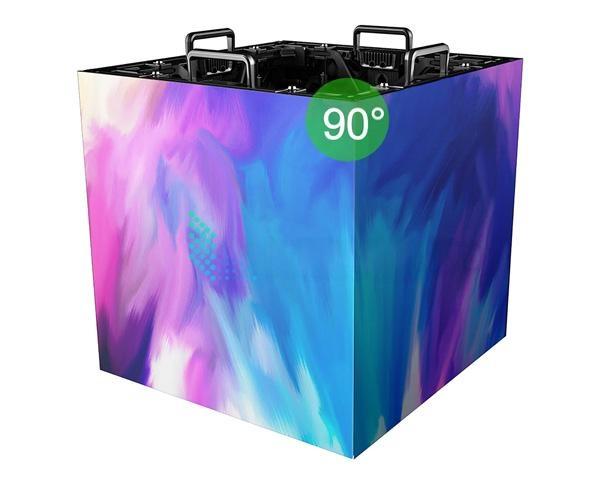

Support Right Angle Installation
Supports 90° right angle LED display installation to meet some special buildings and applications.

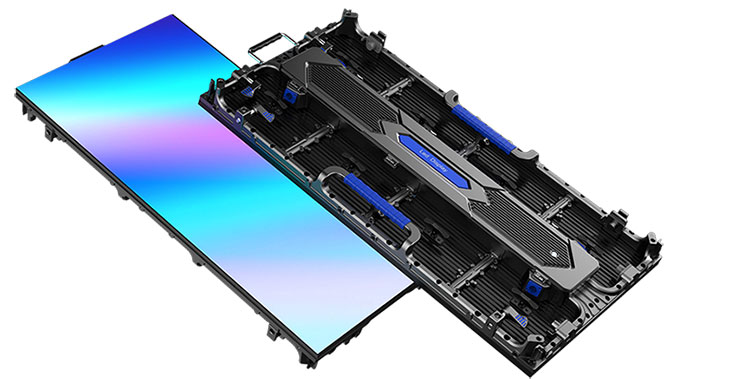

Frontal & Rear Service Indoor, Rear Service For Outdoor.
Designed for both frontal and rear service, the LED panels can be easily removed using tools from the front side within just 5 seconds.
This feature provides a hassle-free and time-saving solution, reducing costs and labor efforts. The panels are also magnetic, enhancing convenience during maintenance and ensuring smooth operation.
Seamless Display and Better Visual Effects
The high-precision aluminum cabinet frame enables seamless splicing of images and videos, presenting you with the perfect visual experience you desire from any angle.
This impeccable construction ensures that viewers are confronted with an entirely new sensory experience, characterized by exceptional picture quality.
Curved Installation
To cater to diverse requirements, our LED display is specifically designed for curved installations. It can be curved at 5° intervals, ranging from -10° to 15°.
To create a circular LED display, a total of 36 cabinets are required. This design allows for flexibility and creativity in shaping your display to suit your specific needs.
Corner Protector for LEDs
To ensure the utmost protection for the LED display during transportation, installation, and other operations, our product is equipped with corner protections in each corner. This thoughtful design feature eliminates the risk of any damage to the LED display, providing you with peace of mind and ensuring its durability throughout its lifespan.
Specifications
| Pixel pitch | 1.953mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm | |
|---|---|---|---|---|---|---|
| Pixels per cabinet (500*500mm) | 256×256 (HxV) | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) | 104×104 (HxV) | |
| Pixels per cabinet (500*1000mm) | 256×512 (HxV) | 192×384 (HxV) | 168×336 (HxV) | 128×256 (HxV) | 104×208 (HxV) | |
| LED lifetime | 100,000h | |||||
| Brightness | Indoor:600-800 nits, Outdoor:4500-5000 nits | |||||
| Module size | 250*250mm | |||||
| Module resolution | 128*128dots | 96*96dots | 84*84dots | 64*64dots | 52*52dots | |
| Refresh rate | 3840-7,680Hz | |||||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||||
| Brightness uniformity | >98% | |||||
| Dimming | 0-100% | |||||
| Grey Level | 14 bits | |||||
| Avg Power consumption | 400 W/m² | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² | |
| Max Power consumption | 720 W/m² | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² | |
| Operation power voltage | 100-240V / 50-60Hz | |||||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||||
| Operational humidity | 10-80% | |||||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||||
| Dimensions | 500 x 500 x 80 mm /500 x 1000 x 80 mm(WxHxD) | |||||
| Weight | 7.25kg(500 x 500mm cabinet)/ 12.5kg (500 x 1000mm cabinet) | |||||
| Serviceability | Frontal & Rear Service Indoor. Rear Service For Outdoor. | |||||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||||
| Warranty | 3 years standard product warranty | |||||
Tech Support
Xingwei LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
