MA250 SERIES LED DISPLAY
Double-sided LED Display
- 1000mm/750mm/500mm×250mm LED Display Cabinet
- Ultra-thin and light (thickness 33mm, weighs 5.8kg)
- High brightness, good color saturation
- Support split-screen multi-module display
- Front Maintenance
- 3 Year Warranty and 5% Spare Part
Light and Thin Cabinet Design
With parameters of 1000/750/500×250×33mm, the single cabinet only weighs 5.8kg/2.9kg.
The super light and thin design greatly facilitates your installation and transportation, saving a lot of money on your labor costs.

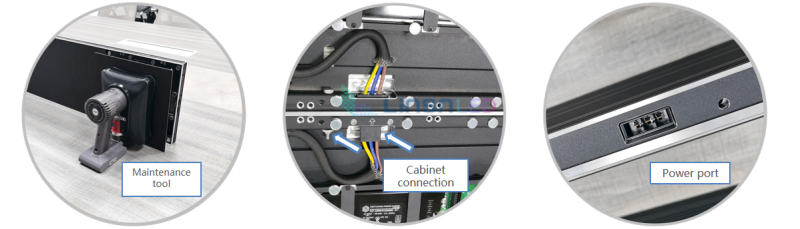

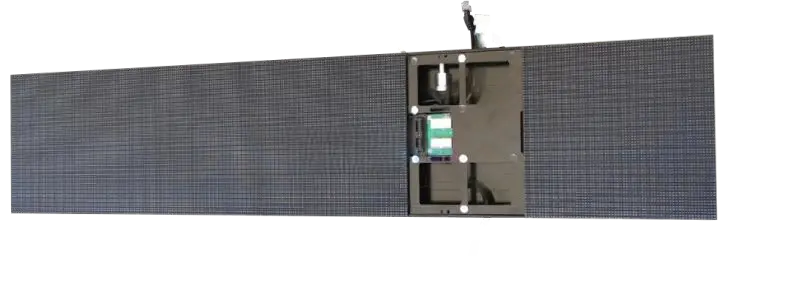

Full Front Maintenance
Xingwei 1000mm×250mm double-sided LED screen supports front maintenance. Perfect Design with user-friendly maintenance tool, cabinet connection, and power port.
LED display module, power box, and receiving card are all available for front service!

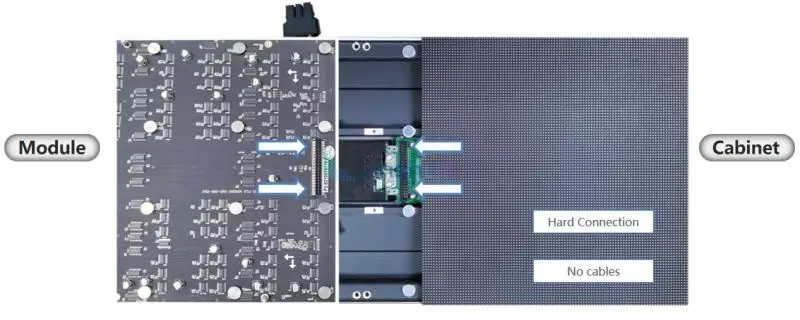

Hard-connection Cabinet with Fast Heat Dissipation
The hard connection of the LED cabinet and modules makes this LED display cabinet more reliable and safer and reduces failure rates further. Moreover, the aluminum cabinet allows seamless splicing and excellent heat dissipation with the silent fan!

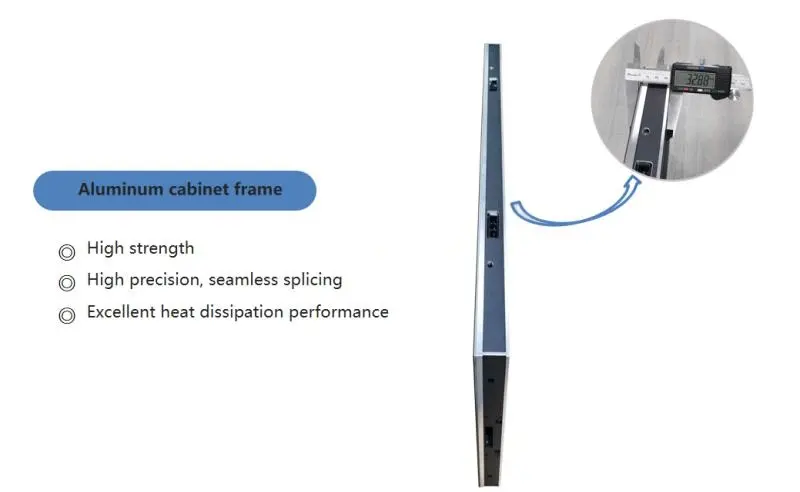

Aluminum Cabinet Frame, Seamless Splicing
This cabinet adopts an aluminum cabinet frame with high strength, high precision, and most importantly, outstanding heat dissipation performance. The weight is super light, therefore, it is very suitable for various installation methods such as hanging installation.

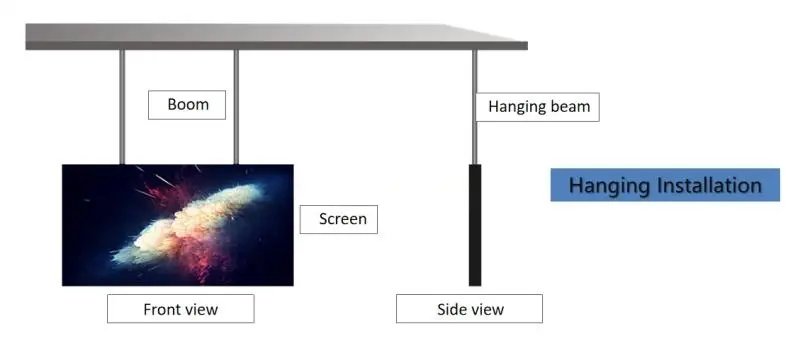

Hanging Installation Supported for Double-sided LED Screen Solutions
Due to its ultra-thin and ultra-light cabinet design, hanging installation can be one of the most suitable options for this double-side LED screen. It can save a lot of labor resources and cost of structure for you.
With the use and popularization of LED screens, single-sided screens have become more and more unable to meet people’s special needs due to their limited viewing range. Especially as commercial LED display, double-sided screens have gradually replaced single-sided ones and have been widely recognized.
High Refresh IC
16-channel PWM constant current output, 16~32 scanning modes freely selectable; High anti-interference capability. The high refresh IC can control brightness precisely and achieve reliable distribution of signal and electricity.

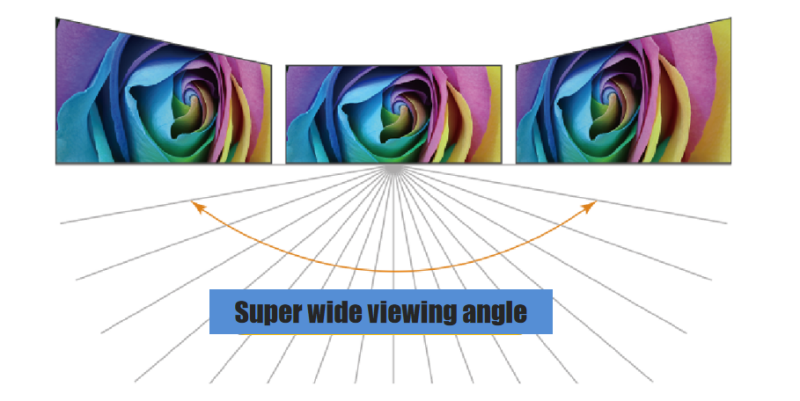

160° Wide Viewing Angle
The cabinet supports a super wide viewing angle of up to 160°. People can see the picture on the screen from various positions in front of the display. Cooperating with a double-sided screen, the contents on the screen can reach as many people as possible.
Specifications
| P1.95 | P2.5 | P2.976 | P3.91 | |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Physical Density(dot/sqm) | 262144 | 160000 | 112896 | 65536 |
| Module Resolution | 128X128 | 100X100 | 84X84 | 64X64 |
| Module Size（mm） | 250X250 | 250X250 | 250X250 | 250X250 |
| Panel Resolution | 512X128 | 400X100 | 336X84 | 256X64 |
| Maintenance Mode | Front | Front | Front | Front |
| Cabinet Frame | Aluminum | Aluminum | Aluminum | Aluminum |
| Brightness(cd/m²) | 700 | 800 | 800-1000 | 1000-1200 |
| Color Temperature(K) | 3200-9300 | 3200-9300 | 3200-9300 | 3200-9300 |
| Grey Level(bit) | 14/16 | 14/16 | 14/16 | 14/16 |
| View Angle(H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Frame Frenquency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive Mode | 1/32 Scan | 1/25 Scan | 1/28 Scan | 1/16 Scan |
| Max Power Consumption（w/m²） | 450 | 450 | 450 | 450 |
| Avg Power Consumption（w/m²） | 150 | 150 | 150 | 150 |
| Power Requirment | AC90-264V 47-63Hz | AC90-264V 47-63Hz | AC90-264V 47-63Hz | AC90-264V 47-63Hz |
Tech Support
Xingwei LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
