MA500 SERIES LED DISPLAY
Magnesium Alloy 500*500mm LED Display
- 500*500mm LED Display Cabinet
- P1.953mm,P2.5mm,P2.604mm, P2.976mm, P3.91mm, P4.81mm
- Indoor or Outdoor Is Available
- Front or Rear Dual Maintenance
- 3 Years Warranty and 5% Spare Part

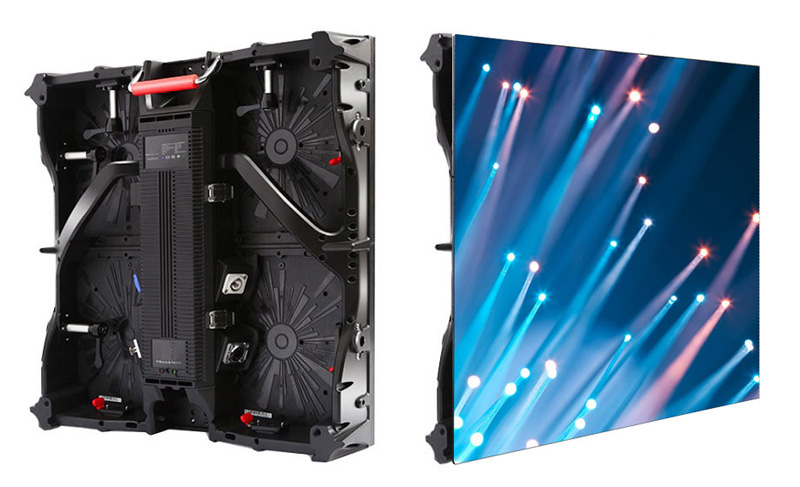

Magnesium Alloy 500mm Series LED Display
Xingwei LED magnesium alloy LED display 500mm series new design incorporates many aesthetic elements, adopts magnesium alloy, only 7.5kg per cabinet. Good heat dissipation saves energy and maintains the stability of display. Unlike indoor fixed LED display and outdoor fixed LED display, magnesium alloy LED display are machined from top-grade, high-tensile magnesium alloy.
Light and Thin
MA500 series LED display cabinet is very thin which makes it ultra-lightweight and space-saving. It can be installed in any area without requiring much space. The light weight of 7.5kg/panel LED screen is easy to carry, transport, and install, saving a good amount of money on your labor costs.
Perfect Structure
Xingwei has the domestic top design team, and the design innovation has its own unique philosophy with a number of core technologies. Innovative structural design, and avant-garde body lines, giving you an extraordinary experience.
Excellent Quality
MA500 series cabinet with hard connection is more reliable and easier to repair than other soft connection LED cabinets. LED display features four high technologies and point-to-point correcting. High refresh rate, high gray scale level, high definition, and high contrast rate present excellent-quality picture output in every condition.

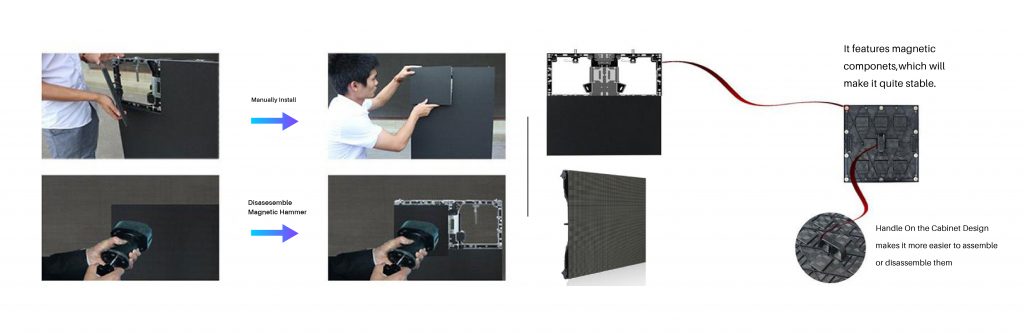

Dual Maintenance Service, Easy Installation
Xingwei MA500 Series LED display with frontal service. The magnet LED modules can be removed by tools on the front side for only 5 seconds. Easy and convenient, save your cost and labor.
Seamless Display and Visual Effects
The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display. The picture quality remains high due to the best-quality display material.

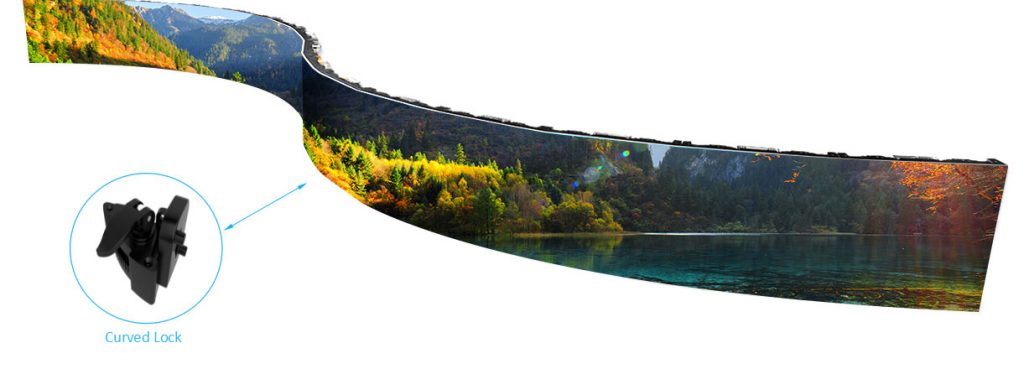

Curved Installation Support
To accommodate the diverse requirements of the LED screen industry, we proudly present the MA500 series LED display designed for curved Installations. This state-of-the-art display offers curved capabilities with an interval of every 2.5° between -10° and 10°, allowing for both convex and concave configurations.
Ultra Fast Response
The response speed exceeds the response limit of the naked eye while playing the high-speed dynamic images on an LED Screen, it will have more advantages, there will be no ghosting & twisting and it will perfectly provide dynamic images.
Wide Viewing Angle
The viewing angle is up to 140° vertically and 160° horizontally, providing a wide viewing angle. Seeing from five directions, it would be still the natural and clear image in an LED display.
Specifications
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
|---|---|---|---|---|
| Pixels per cabinet | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) | 104×104 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |||
| Brightness | ≥1000 nits; | |||
| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Refresh rate | 960-1,920Hz | |||
| Hor. viewing angle | 160° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V / 50-60Hz | |||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||
| Dimensions | 500 x 500 x 90 mm (WxHxD)/ 19.6 x 19.6 x 3.5 inch (WxHxD) | |||
| Weight / Tile | 7.5 kg / 16.53 lbs | |||
| Serviceability | Front and back service | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
| Warranty | 3 years standard product warranty | |||
Tech Support
Xingwei LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
