DIP LED Module - What Is It?
DIP refers to Dual In-Line Package, a kind of LED packaging technology that is common on the LED display market. It has two parallel rows of connecting pins which are through-hole mounted to the PCB board or inserted in a socket. DIP LED module means there are many DIP LEDs integrated on the module surface.
Compared with SMD LED display, which is the mainstream in the LED display industry, the DIP LED module features high protection ability and high brightness. As a result, it gains popularity in the outdoor LED display market especially.
Xingwei P16 DIP LED Module
Xingwei P16 dip LED module supports frontal service with a module size of 320*320mm, and super high brightness that can be up to 7500nits. It is very suitable for outdoor LED display screens that need to resist natural elements such as rain, dust, water, moisture, and so on.

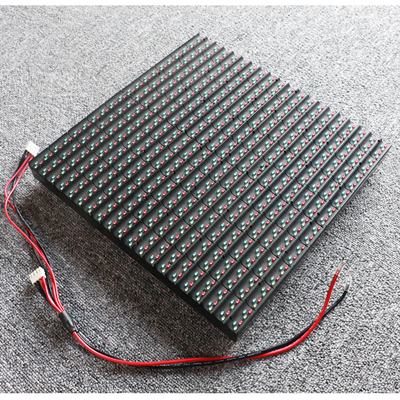

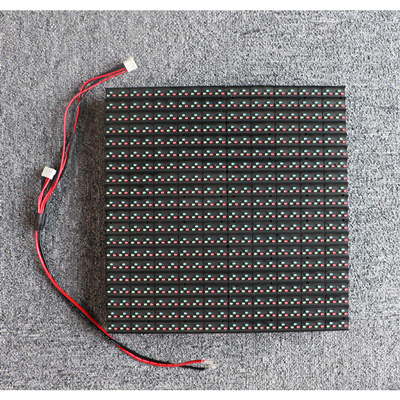

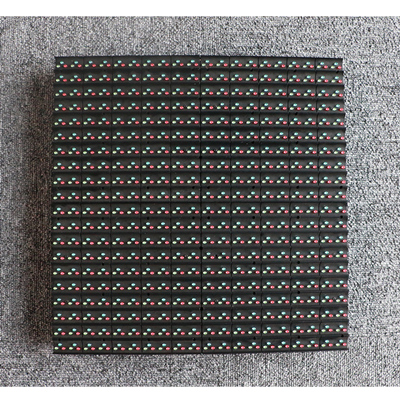

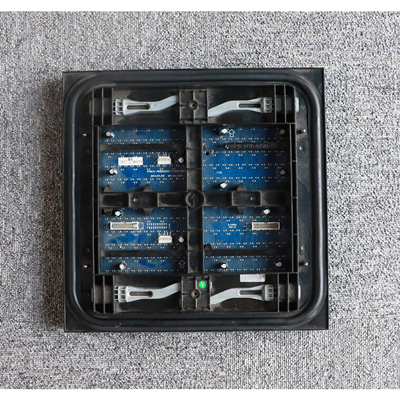

Product Pictures
Xingwei P16 Dip LED modules feature in:
Pixel Pitch: 16mm
Module Size: 320*320mm
Module Resolution: 20*20
Service Method: Front & Rear Service
Certification: CE,RoHS,FCC Approved
Warranty: 2 Years Warranty
High Protection Ability
The unique packaging method decides the high waterproof ability, thus is popular for some outdoor LED display users for their outdoor big fixed LED screens.
High Brightness
Due to its special packaging method, DIP LED modules can show super high brightness which is higher than that of common SMD LED displays. For instance, Xingwei DIP LED display module can reach a high brightness level that is higher than 7000nits, while for the outdoor SMD LED display screens, it only can reach 4500-5000nits generally.
High Cost-efficiency
DIP technology has developed for decades, and it belongs to the first kind of LED packaging technology which enjoyed the R&D. Thus, the cost-efficiency and productivity are all comparatively high now.
Therefore, it has a price advantage sometimes compared with other types of the LED display screen. However, it is recommended that making the final decisions depends on the actual needs.
Specifications
| Resolution | 20(H)×20(V) |
| Pitch | 16mm |
| Density | 3906 pixels/㎡ |
| LED Arrangement | 1R1G1B |
| Driver Mode | Static Constant Current |
| Size | 320mm×320mm |
| Mask | Pure Black mask-high contrast screen |
| Electricity Parameter | |
| Optical Ratings | |
| Brightness | ≥7000cd/㎡ |
| View Angle | 110 degree ( horizontal) 70 degree(vertical) |
| Best View Distance | 16m-160m |
| Gray Scale | 8bits input, correction with 14bits |
| Display Color | 16.7M |
| Brightness Adjustment | 100 levels |
| Power Supply | |
| Operation Power | AC100-240V 50-60HZ Switch-able |
| Maxim Power Consumption | 750 W/m2 |
| Average Power Consumption | 500 W/m2 |
| Control System | |
| Correction Scale Level | 16bits |
| Frame Update Frequency | 60-75Hz |
| Screen Refresh Frequency | 480Hz |
| Driving IC | MBI5124/ICN2038S |
| Gamma Correction | -5.0—5.0 |
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
| Control Distance | Ethernet cable 100m, optical fiber 5km |
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 |
| Color Temperature | 5000-9300 adjustable |
| Brightness Correction | dot by dot, module by module, cabinet by cabinet |
| Reliability | |
| Operating Temp. | -20-60 Celsius degree |
| Operating Humidity | 10-95% RH |
| Operating Life | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Working Time | ≥48 hours |
| Protection Level | IP65 |
| Out of Control Pixel Rate | 0.01% |
Xingwei provides customers worldwide with DIP LED module that owns high standards, high brightness which is higher than 7000nits, strong protection ability, and high cost-efficiency. For more information about the functional DIP LED screen, welcome contact us!
