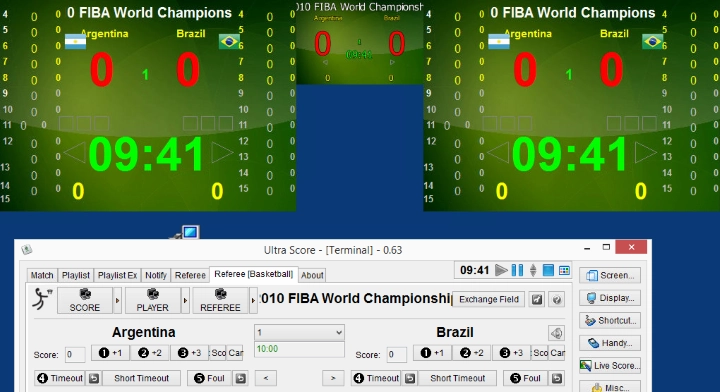

What Is Ultra Score Software?
Ultra Score is a professional socre system designed for various sports venues and locations. It combines functions such as managing match information input, match timing and scoring, post-match statistics, real-time match information display, and media file playback.
It can support up to 40 different types of sporting events, including ball games, track and field, competitions, gymnastics, water sports, ice sports, and more.
This system can meet the display requirements for LED screens, LCD screens, and projectors. It is compatible with mainstream LED control systems such as Xingwei, Novastar, Colorlight and others.
Currently, this system has been adopted by thousands of domestic and international sports venues, and has been successfully implemented in numerous international and domestic sporting event LED screen.
Can I Use Ultra Score with My LED Screens?
You will need to find out whether your screen is a synchronous LED screen. To determine this, you need to ascertain if it accepts digital video signals (typically through a DVI port) as input and synchronously displays the content on the LED screen.
When you use a synchronous LED controller, the scoreboard displayed on your PC can automatically be transmitted onto the LED screen.
The most effective way to determine if it is functioning properly is to download the evaluation program and test it for yourself.
Download address:
https://www.kazovision.com.cn/sports/ultrascore/download/?lang=chs
What If I Want to Use the Asynchronous LED System?
You should use our asynchronous LED controller, and we will customize the system for your according to the screen size, and the match types.
It’s not recommended, but you may try contact us if you insist to use it.

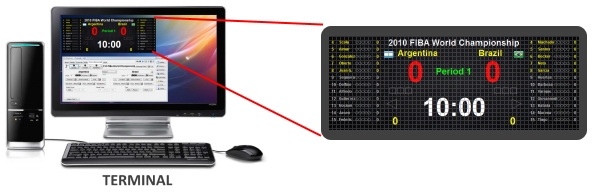

How to Make the Scoreboard Display on LED Display?
Synchronous LED screen will cast a specified area from the input video signal onto the LED screen.
So what you will need to do is going to find out the position of this area. Usually you can find it from the LED control software.
Input these parameters into Ultra Score, it will then display the scoreboard on the correct position, and show on the LED Screen.
Can I Use Ultra Score on Dual Color LED Screen?
The dual color LED screen is limited to displaying contents in only three colors: RED, GREEN, and YELLOW. It sometimes supports multiple gray levels. However, using Ultra Score on this kind of system poses no issues.
To achieve the optimal visual effects, it is recommended to use only the above three colors for text displayed on the scoreboard. This can be easily achieved by taking advantage of our LayoutEditor tools.
Similarly, the Mono Screen requires that all text be displayed in RED in order to be properly shown.
Can I Use Ultra Score Together with LED Video Processor?
Yes, and you have two options:
Turn off the zooming function on the Video Processor:
And set the scoreboard window in Ultra Score as the same resolution as your LED screen.
Then make the video signal from the Ultra Score PC as an input of the Video Processor. So every time you use this channel on the Video Processor, the scoreboard will be shown on the LED screen straight forward.
Use the zooming function of Video Processor:
In this case, you need to set the scoreboard window of Ultra Score to display full screen on one of your desktop so the video signal from Ultra Score will be as same as the other video signals (DVD, Video Camera), you may switch them freely on the video processor.
Can I Use Ultra Score on Multiple LED Screens in A Stadium?
Certainly. Our Ultra Score program comes in a network edition which enables you to display the scoreboard simultaneously on multiple PCs.
For more details on how to achieve this, please refer to our Ultra Score solutions.
What If I Have Several LED Screens with Different Resolution. Can I Show Scoreboard on Them in the Same Time?
Certainly. We offer customization options that allow you to personalize the software, allowing the scoreboard looks different on each screen. And for a small LED display, not all information will be showed.
