Shelf LED Display

Overview

The Smart LED Shelf Display is a slim LED advertising screen designed for impact and creative visual marketing. You can upload content with USB, Wifi, 4G, network. You can connect multiple Smart shelf LED Price Tags to create a large screen or divide the screens to play multible video product promotions.

Light enough to be moved and big enough to be seen at a distance makes our Smart shelf LED Panels a real asset to bussiness who wish to have a high visual impact to attrack attentions.

Shelf-LED-Display-2

Features

  • Super slim in depth and light in weight.

  • 22mm thickness ,thickest in the whole market, easy to install and move.

  • Multiple installation modes, such as stand, wall-mounted and etc.

  • Plug-in display, simple operation.

  • Multiple linkage modes, such as single display application, cascaded application and creative application, etc.

  • USB/ Wi-Fi/ HDMI / cable connection; mobile phone & PC quick management & publish.

  • LAN integrated publish & remote publish via internet.

  • Calibration data saved on modules, recover factory settings in 5s.

LED Module


The shelf led display module is made with GOB Craft to offer an excellent visual experience. 150X60mm,300x120mm, 200x50mm, 200×150,200x100mm,
128x128mm,128x64mm are available.

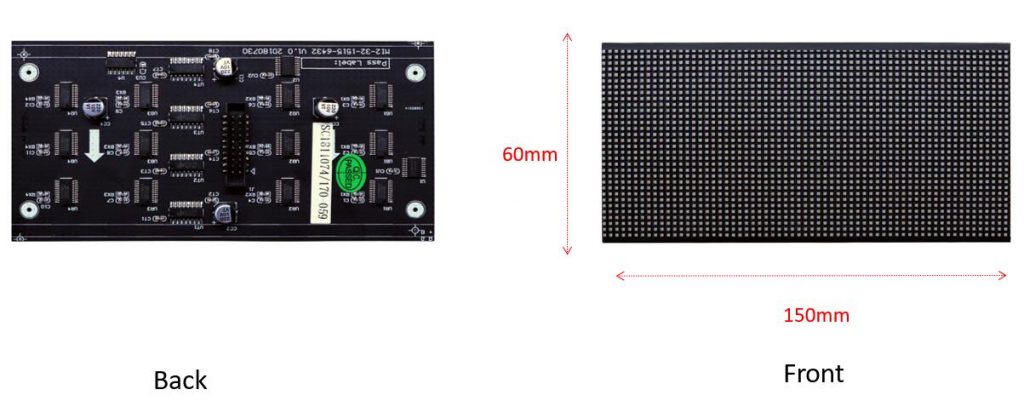

Front view and rear view for 150X60mm led Module for reference.

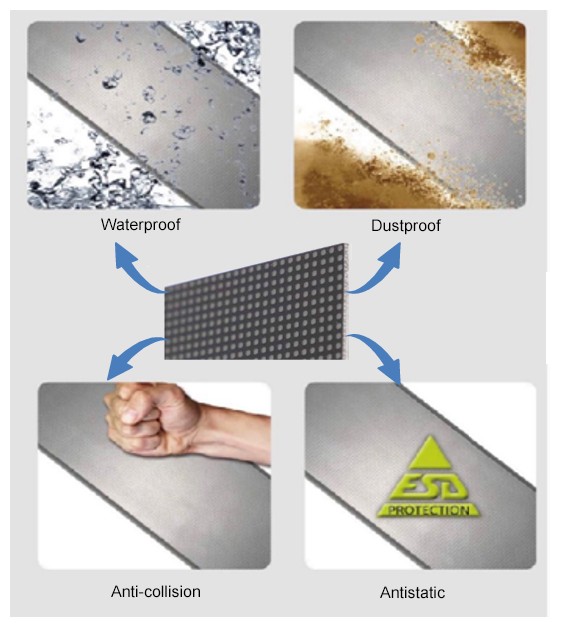

GOB TECHNOLOGY HIGH PROTECTION


TOP-GOB Process do a surface coating and whole PCB board is fully sealed with epoxyresin; which enhance the protection level from physical damage
with anti-fog /dust-proof, easy to clean, abrasion proof, damp-proof, anti-collision, antistatic, anti oil-pollution and anti-oxidation etc.


Size

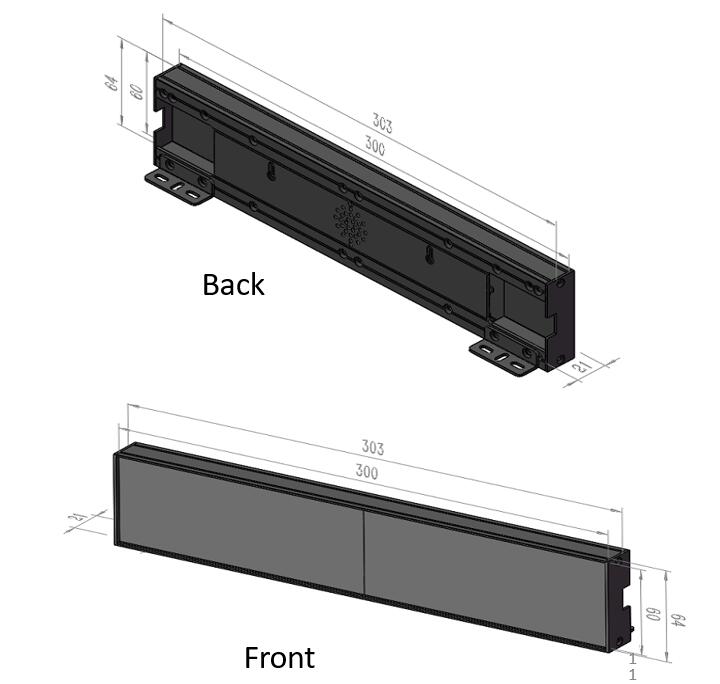

Xingwei shelf led display (W×H×D): with frame:303×64×21mm Display area:300x60x21mm;
(Front view and rear view for 300mm long for reference)

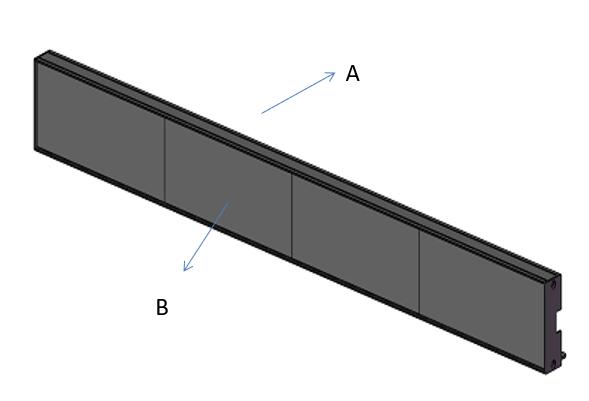

Product Makeup


A: Aluminum alloy frame : Made of 1 pieces straight long frame(connected to aluminum plate at side) Perfect flatness in display
B: GOB Technology on Modules: Better protection against touching ,hitting and water spray

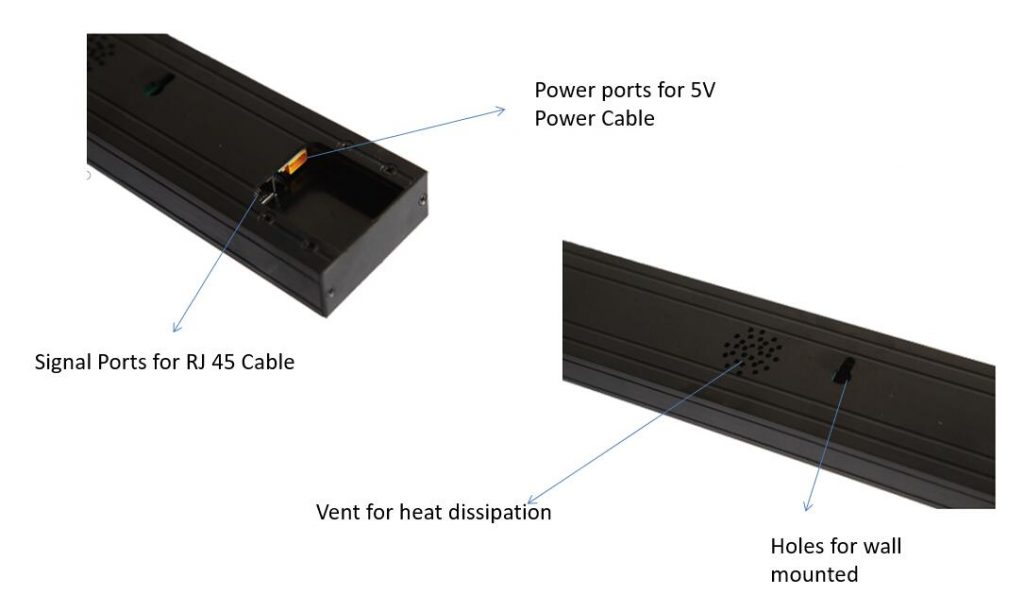

I/O Interface



Specifications

Optical ParameterPixel Pitch (mm)P1.2mmP1.5mmP1.875mmP1.5625mmP2mm
Viewing Angle (H/V)160° / 160°160° / 160°160° / 160°160° / 160°160° / 160°
Brightness (cd/sq.m.)800800800800800
Refresh Rate (Hz)>3840>3840>3840>3840>3840
Optimized Viewing Distance (m)1~101~101~101~101~10

Electrical

Parameter

Input VoltageAC110V or AC220V±10%50/60Hz
Input Interface Ethernet / USB / Wi-Fi

    Structure

    Parameter



Module Size in Pixel (W×H)125×50100×4080×32128×3264×32
Module Size in mm (W×H)150x60mm/300x120mm
IP RatingIP 40
MaintenanceRear

Operation

Parameter

Operating Temperature/ Humidity (℃/RH)-10℃~40℃/10~90RH%
CertificationCCC / CE / ETL / FCC

Packing List


Installation Method

1. Attached screen by screwsing M6X14 screwsï¼›

2. Attached screen with fold plate by M3X6 screwsï¼›

3. Attached screen to gondola with another side of fold plate by drilling screwsï¼›

4. Rendering of â‘¡ï¼›

How to splice 2 pcs strips

Cabling diagram of Shelf LED Display

Display Application Via Control Box

Shelf LED Display Router Application

Using playing software updates playlist to each display. Each screen also can  be controlled and managed via LAN and Internet.

Shelf LED Display Cloud Display Application

Connect the TB6 for  Shelf LED Display to Internet via Wi-Fi / Cable, log in the cloud platform, remotely control and manage the Shelf LED Display in  different regions.

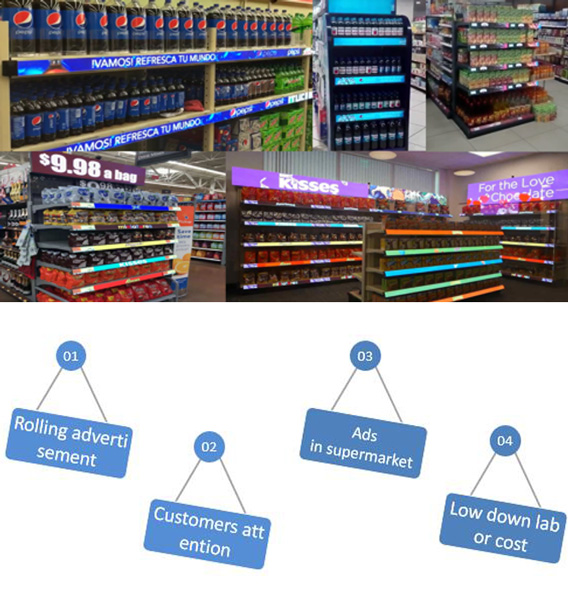

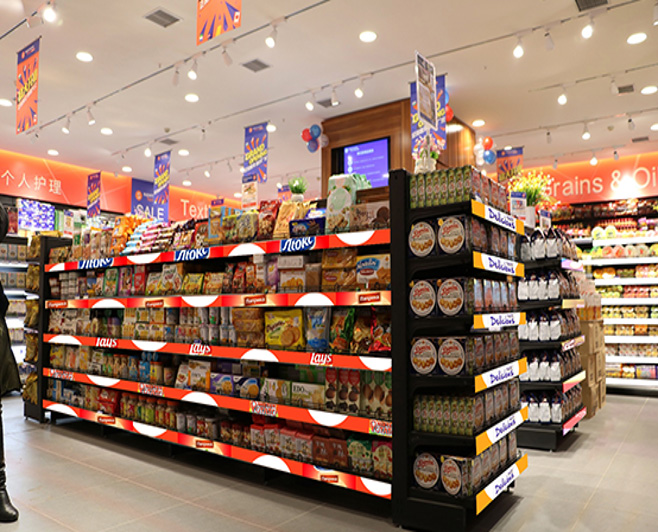

LED Shelf Display Cases
