H500/1000
NG500/1000 Series Rental LED Display
- 500*500/1000mm LED Display Cabinet
- P1.953mm, P2.5mm, P2.604mm, P2.976mm, P3.91mm, P4.81mm
- Detachable Back Cover Box
- Support Right Angle Installation for NG500
- Indoor & Outdoor Available
- Front or Rear Dual Maintanance for NG500
H500/1000 Series Rental LED Screen
Xingwei LED NG500/1000 series rental LED display new design incorporates many aesthetic elements, adopts High strength die-casting aluminum, only 7.5kg per cabinet, and better performance with high-definition visual display.

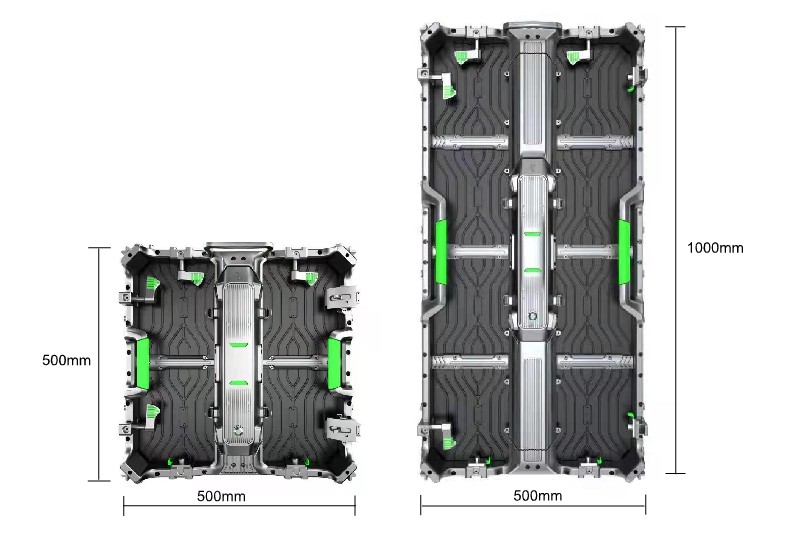

Lightweight and Thin
Portable and good stability with a weight of 7.5kg and thickness of 80mm. The feature of lightweight makes the LED display easy to carry,
transport and install, saving a good amount of money on your labor costs.

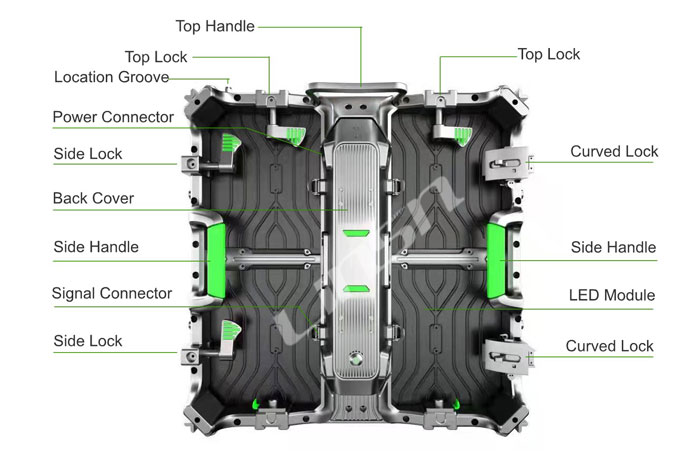

Perfect Structure
Xingwei has the domestic top design team, and the design innovation has its own unique philosophy, with a number of core technologies.
Innovative structural design, and avant-garde body lines, give you an extraordinary experience.

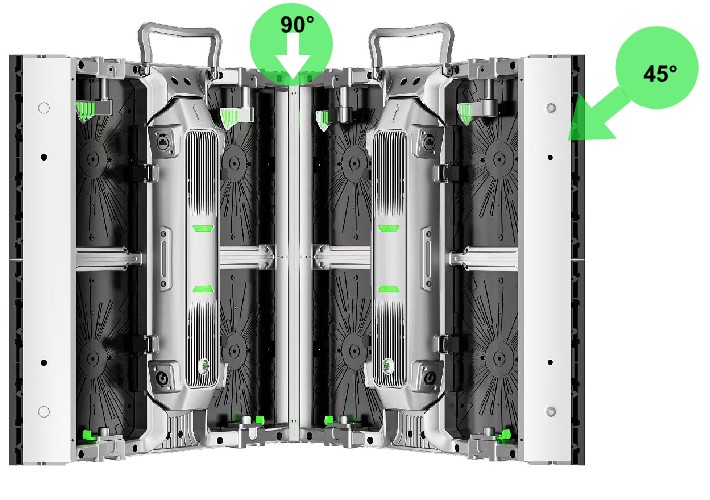

Support Right Angle Installation
Supports 90° right angle LED display installation to meet some special buildings and applications.

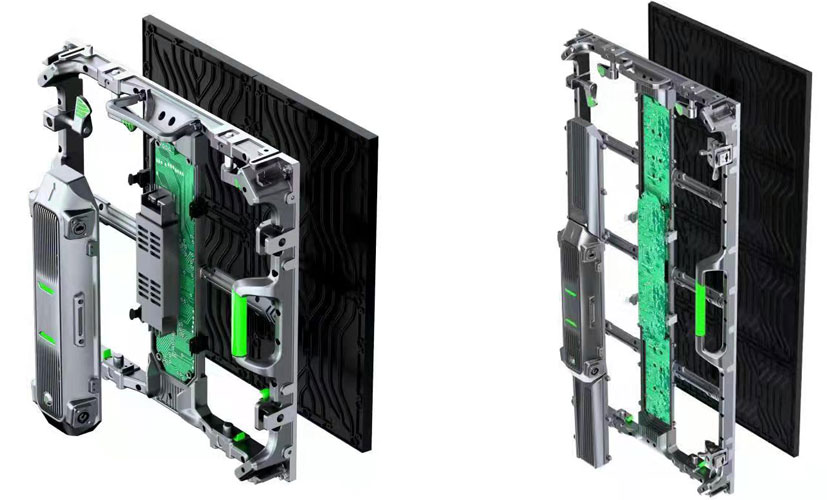

Detachable Back Cover
Adopts optimized control box with quick removable without any tools optional. The back box (includes power supply and control cards)
is removable quickly for replacement and maintenance.
Front & Rear Maintenance
Xingwei LED NG500 Series rental LED display is a dual maintenance product, not only 100% front accessible but also can do rear service.
The LED panels are magnetic and can be removed by tools from the front side in 5 seconds. Easy and convenient, save your cost and labor!

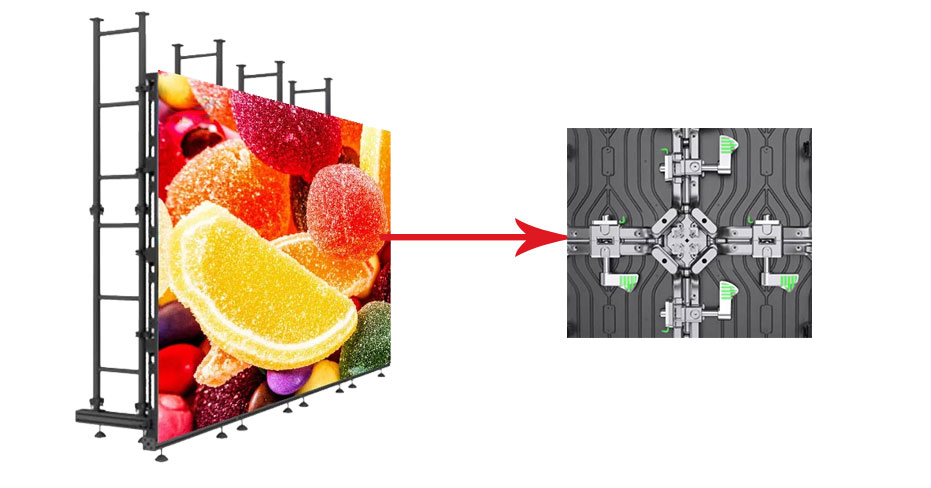

Seamless Display and Better Visual Effects
High precision aluminum cabinet frame makes seamless splicing image and video display, offering you the perfect visual experience. The picture quality confronts viewers with an entirely new sensory experience.

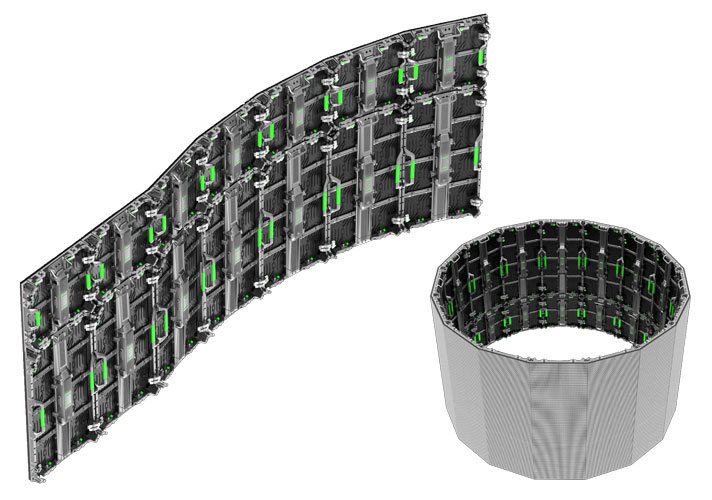

Curved Installation
To cater to the diverse requirements in the field of LED screens, the NG500/1000 series LED display is designed for curved installations. It can achieve 2.5° at intervals within the range of -10° to 10°, enabling both convex and concave configurations.

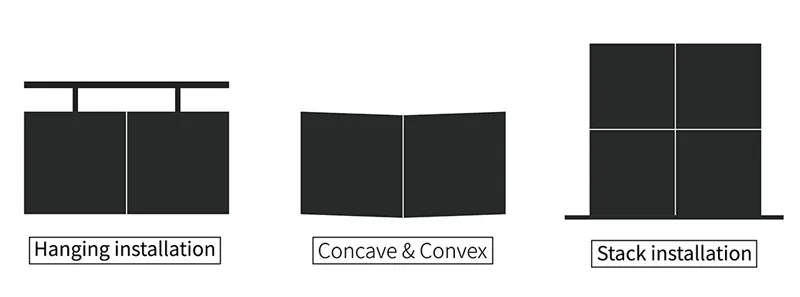

Multi Installation Way of Cabinet
Support 3 installation ways of cabinet with hanging installation, concave& convex installation, and stack installation.
IP65 Waterproof
IP65 waterproof protection on the front side ensures continuous and stable operation in all kinds of outdoor environments.
Specifications
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
|---|---|---|---|---|
| Pixels per cabinet | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) | 104×104 (HxV) |
| LED lifetime | 100,000h | |||
| Brightness | ≥1000 nits; | |||
| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Refresh rate | 1920-3,840Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V / 50-60Hz | |||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||
| Dimensions | 500 x 500 x 80 mm / 500 x 1000 x 80 mm (WxHxD) | |||
| Weight / Tile | 7.5 kg / 14 kg | |||
| Serviceability | Front and back service | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
| Warranty | 3 years standard product warranty | |||
