P1.25mm 4K LED Display to America
Installation Country: America
Product: N169 Series
Pixel Pitch: P1.25mm / 4K
Cabinet Size: 600*337.5*60mm
Screen Size: 4.8m (W) * 2.7m (H)
Module Size: 200*168.75mm
Module Resolution: 480*270dots
Refresh rate: 1920/3840
Cabinet Material: Die-Casting Aluminum
N169 Series - Related Product
For the high-definition 4K LED display, we recommend our N169 series to this customer, which is perfect for 4K visual effect and has golden cabinet ratio of 16:9.
Now, just follow us to know more about it!
4K, 8K Display Performance Available
With its high contrast ratio of 4000:1 and refresh rate 3840Hz, this cabinet supports high-standard visual performance, seamless display, and high color uniformity. N169 cabinet is produced for 4K LED screens and 8K LED displays for its outstanding visual quality and fine pixel pitch including P1.25, P1.56, P1.875, P2.5.

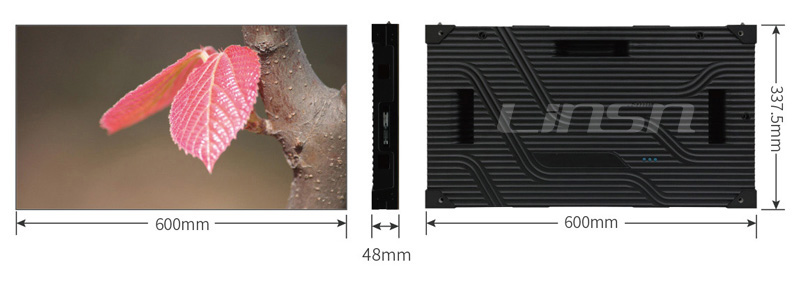

16:9 Cabinet Ratio for Perfect Size Screen
With cabinet size 600*337.5mm, this 4K LED cabinet meets the golden ratio of 16:9. The aesthetic design supports the cabinet to install as 16:9 4K LED screen for multiple applications, especially indoor fixed LED screens.

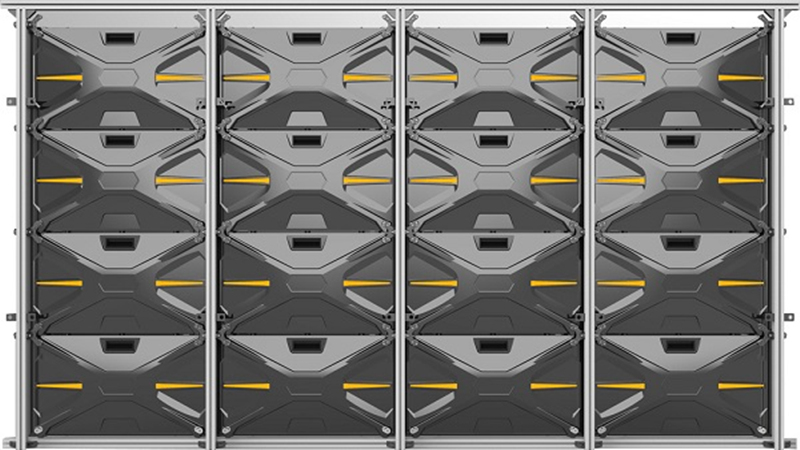

Easy Frontal Service
The frontal service is easy for users to install the maintain the cabinet. This is one of the features that many customers place importance on, and actually, it does save many time and energy for people especially for who owns the big screen.
The quick installation and maintenance allow it suitable for both rental LED display and fixed LED display.
User-friendly Management
Xingwei N169 series supports smart management including correcting data storage, temperature detection, voltage detection, dot-to-dot correction, and so forth.
By N169 4K LED cabinet, you can achieve top-quality visual experiences with easy and smart management and control!
Easy Installation Process - Guidance
The installation process is quite simple, just follow the steps listed below you can finish this job.
(1) Install the structure: install 9pcs vertical truss, and have the flat beam at the bottom. Then connect the main cables.
(2) Connect cabinets with connectors, and then connect them with the truss: install the screen as to each screw hold function. Please notice you should install each LED cabinet tracking the number, and the installation sequence is from the bottom horizontal line.

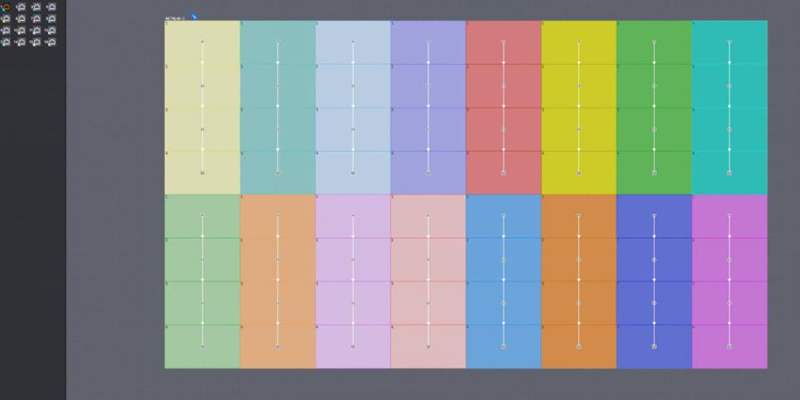

(3) Connect cables: connect the signal cables and power cables. The sequence should be paid enough attention to.

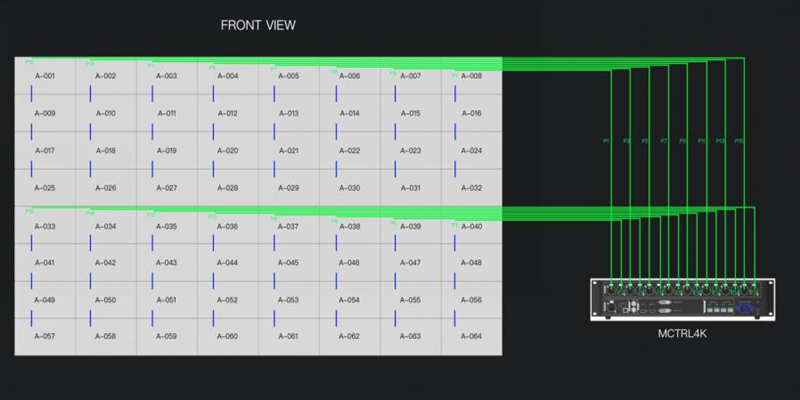

Connect 4 vertical cabinets with 1 cable to the MCTRL4K, and you can enter the network cable on the right or at the top, but should NOT be disordered.
Before the connection is done, do not power on the LED screen.
(4) After the signal cable is connected, turn on the MCTRL4K and connected to the computer.
If the connection is completed according to our diagram, after power on, the receiving card indicator light will be on, and it should be displayed directly after the module is connected.
(5) Assemble the LED display modules carefully. Install the modules from the bottom horizontal line to up, and install the pin port carefully.
Please install the modules by their sequence, and wear gloves when doing this job.
(6) Configuration: the configuration for receiving card has already been completed before delivery. You can just send us your connection diagram, and we will send you the connection file.
(7) After lighting up and configuration, the installation is completed. Just use your LED display screen now to create more potentials!
Parameter
| ITEM | UNIT | 1.25 | 1.5625 | 1.875 | 2.5 |
| LED Type | N/A | SMD1010 | SMD1010 | SMD1515 | SMD1515 |
| Pixel Pitch | mm | 1.25 | 1.5625 | 1.875 | 2.5 |
| Ingress Protection | IP | IP54 | |||
| Viewing Distance | meter | 1.25 | 1.5 | 1.8 | 2.5 |
| Scan Way | N/A | 1/30 | 1/32 | 1/30 | 1/30 |
| Module Dimension | mm | 200*168.75 | |||
| Module Pixel | Pixel | 160×135 | 128×106 | 160×90 | 80×68 |
| Cabinet Dimension | mm | 600*337.5*60 | |||
| Cabinet Resolution | Pixel | 480*270 | 384*216 | 320*180 | 240*135 |
| Module Maintenance | N/A | Front | |||
| Cabinet Material | N/A | Die-Casting Aluminum | |||
| Cabinet Weight | KG | 5.4 | |||
| Brightness | Nits | 800~1000 | |||
| Refresh rate | Hz | 1920/3840 | |||
| Digital Processing | Bit | 14/16 | |||
| Gray Scale | Level | 16384 | |||
| Colors | Million | 687 | |||
| Color Temperature | Deg.K | 4,500-8,500 Adjustable | |||
| Brightness Control | N/A | 255 | |||
| Contrast Ratio | N/A | 4000:1 | |||
| Viewing Angle H | Deg. | 140 | |||
| Viewing Angle V | Deg. | 140 | |||
| AC Speration | V | AC90~264 | |||
| Power Consumption(Max/Avg) | W/m2 | 800/250 ( Estimate ) | |||
| Storage Tem. | F/C | -4 ~ 140F/-20C ~ +60C | |||
| Storage Humidity | RH | 10% ~ 85% | |||
| Operating Tem. | F/C | -4F ~ 140F/-20C ~ +60 | |||
| Operating Humidity | RH | 10% ~ 85% | |||
| Lift time(50% brightness) | Hour | 100,000 | |||
| Control Mode | N/A | Video Sync | |||
Want to know more about this special 4K LED display? The vivid and outstanding play performance expands the profit potentials for our customers, and also adds more fun to the working environment! Just contact us by filling the right bar or send us an email. More the latest real customer case welcome follow our update on the official website!
