For our Korean customer who needs a large indoor LED display to place in shopping mall, we offered this P2.5mm large indoor fixed LED display to meet his requirements of high-definition displaying and cost-efficiency.
This LED display screen is our MA480 series and has many outstanding features that can be applied to indoor applications such as high pixel pitch, reliable quality, and long service life. Now, let’s get start to see what the P2.5 indoor LED display can bring to us!
Project Details
Installation Country: Korea
Product: Xingwei MA480 series
Pixel Pitch: P2.5mm
Cabinet Size: 480*480mm
Refresh Rate: 960-3840Hz
Grayscale: 16 bits
Module Size: 160*160mm
Application: Shopping mall
MA480 Indoor/Outdoor Advertising LED Display
Both Suitable for Indoor and Outdoor LED Display

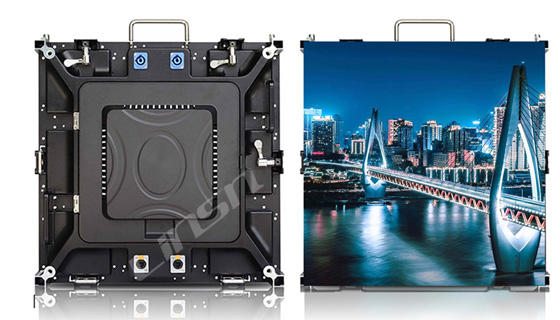

With cabinet size 480*480mm, MA480 is flexible to assemble as indoor or outdoor LED display with different sizes from comparatively small display to gigantic display.
It can reach IP65 for outdoor LED display screen, resisting water and dust effectively and placing the display under effective protection.
Rental/Fixed LED Display
It can be both used for rental LED display and also fixed LED display. MA480 series is an outstanding indoor fixed LED display, and also outdoor rental LED screen.
The quick installation, reliable performances, reasonable design, appropriate cabinet size allow the cabinet can be used as rental LED displays that will be assembled and disassembled frequently and also fixed LED screens.
High-quality materials
Xingwei MA480 series indoor/outdoor advertising LED display adopts die-casting magnesium alloy, and high-standard components such as Kinglight, Nationstar LED lamp beads, chips produced by international companies, PCB boards, and so forth.
The working life of MA480 series can be more than 10 years even running it for 24 hours a day and seven days a week.

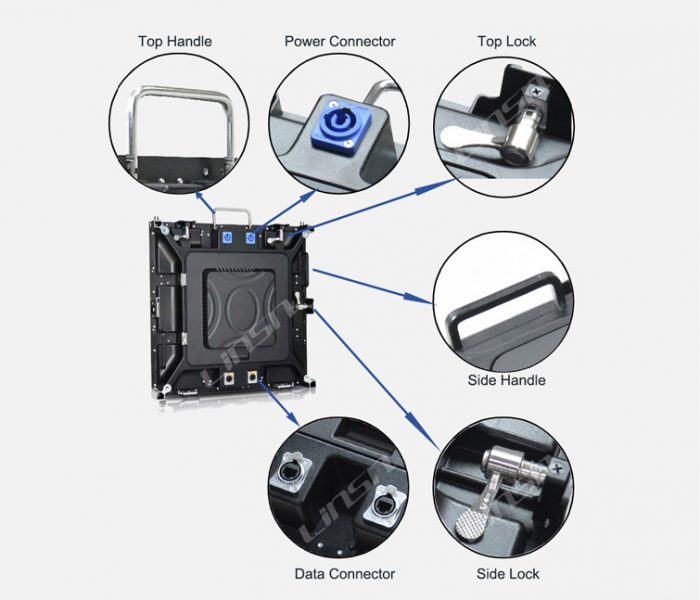

Excellent Cabinet Design
The designer of Xingwei MA480 considered every detail of the cabinet to facilitate users and improve the performance.
For instance, the quick power connector and data connector help the fast connection, and the operation is so easy that a novice can complete it well.
The top handle and side handle make it easy to move and lift the cabinet, and the top lock and side lock support the assembly firmly and simply.
Real Dual Services
This cabinet supports dual services including frontal services and back services. With this function, you can maintain the LED display module and other components such as the power supply quickly and easily.
The front service LED display fits in installation site where can not leave enough room behind the display to run maintenance.
Great displaying Effect
The high refresh rate and high grayscale allow the display has a great play effect.
The refresh rate supports 960Hz to 3840Hz, and the grayscale is up to 16bits.
Moreover, this LED display cabinet supports fine pixel pitch such as P1.875, P2, P2.5 and P3 to play the role of high definition displays.
Parameter
| Pixel pitch | 1.875mm | 2mm | 2.5mm | 3mm |
|---|---|---|---|---|
| Pixels per cabinet | 256×256 (HxV) | 240×240 (HxV) | 192×192 (HxV) | 160×160 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |||
| Brightness | 800 – 1000 nits | |||
| Module size | 250*250mm | |||
| Module resolution | 128*128dots | 120*120dots | 96*96dots | 80*80dots |
| Refresh rate | 960-3,840Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 16 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V / 50-60Hz | |||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||
| Dimensions | 480 x 480 x 80 mm (WxHxD) | |||
| Weight | 5.5 kg | |||
| Serviceability | Front and back service | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
| Warranty | 2 years standard product warranty | |||
Xingwei MA480 series is a reliable product for indoor fixed LED display, and also suitable for the rental LED screen with its reasonable design and outstanding display performance. Compared with MA960 series and MA640 series, this cabinet features higher flexibility for different installation conditions as its smaller size. For more, welcome fill in the form on the right to get more insights about our products and LED display industry!
