Xingwei fine pixel pitch LED display to Germany, high-definition display effect with top-quality components, deliver customers vivid and detailed images and videos! The small pitch LED display is perfect for indoor applications where need close viewing distance.
The high refresh rate and high contrast ratio support the to attract viewers immediately, boosting profits and human traffic effectively!
Installation Country: Germany
Cabinet mode: MAGIC500
Display Size: 3.75㎡ (2.5mX1.5m)
Pixel Pitch: 1.953mm
Resolution: 256X256dots
Cabinet Material: Aluminium alloy
Cabinet Size: 500X500mm
Maintenance Method: Dual Service
Application: Shopping mall

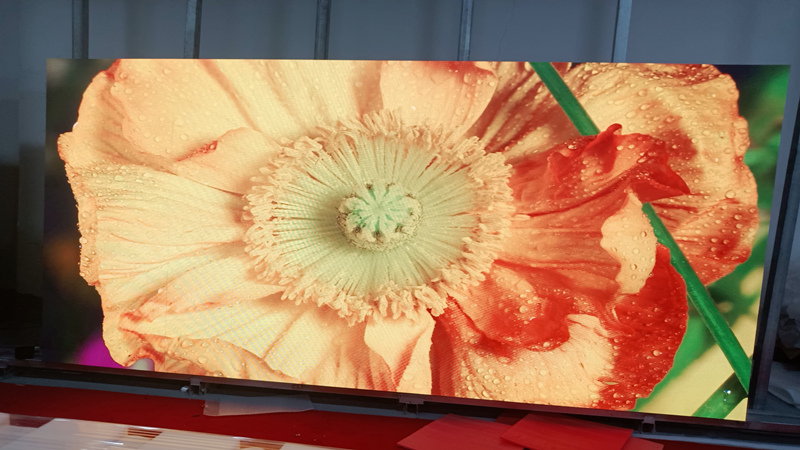

This small pitch LED display has excellent visual performance that owns a high refresh rate, high contrast ratio, and adjustable brightness. The smooth display performance shows every detail of the images vividly, and the color fidelity and saturation realize the true pictures perfectly.

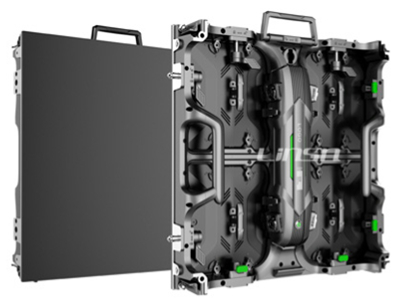

MAGIC500 Small Pixel Pitch LED Display
Xingwei MAGIC500 small pixel pitch LED display owns many advantages including aesthetic cabinet design, frontal and back services, reliable raw materials including famous IC, LED lamp lights, and stable frames.
It can be both applied for indoor and outdoor LED display and has multiple pixel pitches available including P1.953, P2.604, P2.976, P3.91, and P4.81.
We provide 3-year warranty, 5% spare part, 7/24 hours, and other benefits for this product.
Each part of Magic500 LED cabinets enjoys a perfect, aesthetic design, meets your requirements in all aspects. For example, double sealing rubber ring, detachable power box, precise positioning, fast lock, and aesthetic appearance, and so forth. Although the components are improved, the cabinet is lightweight and thin. For instance, the weight is only 8Kg, and the thickness is only 80mm. The grayscale can be up to 14bits, allowing the display shows every detail of video input. Besides, the refresh rate can be up to 1920Hz, supporting smooth display performance. Moreover, it supports a wide viewing angle of 140° +/-5° (@50% brightness).
Outstanding Cabinet Design

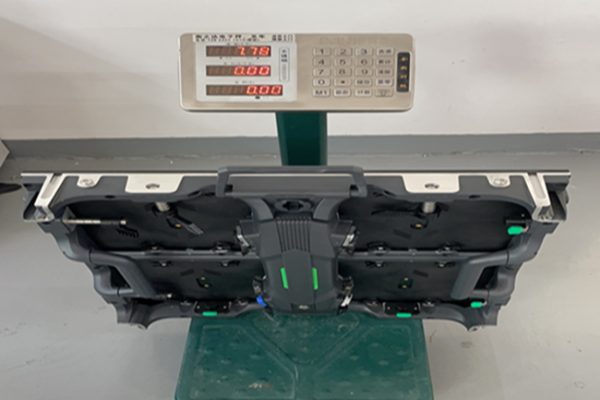

Thin and Light Weight
Perfect Visual Performance
Dual Services for Modules and Power Box
MAGIC500 supports dual services for power box and modules both, meaning they can be maintained and replaced both from frontal and back.
Besides, the easily assembled and disassembled structure also has rigid protection ability that improves the waterproof and dustproof ability.
Accurate Curved Installation Available
Magic 500 supports curved installation with the curved lock (-10° to +10°) and can solve the problem of difficult curved installation. The curved lock supports fast and accurate degree adjustment.
Has this function, MAGIC500 is easy to build LED screen according to the structure of the installed building.
Specification
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
|---|---|---|---|---|
| Pixels per cabinet | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) | 104×104 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |||
| Brightness | ≥1000 nits; | |||
| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Refresh rate | 960-1,920Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V / 50-60Hz | |||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||
| Dimensions | 500 x 500 x 80 mm (WxHxD)/ 19.6 x 19.6 x 3.5 inch (WxHxD) | |||
| Weight / Tile | 7.5 kg / 16.53 lbs | |||
| Serviceability | Front and back service | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
| Warranty | 2 years standard product warranty | |||
Want to know more about our MAGIC500 small pixel pitch LED display to boost your human traffic and profits? This cabinet has an excellent visual effect, stable performance, user-friendly structure, high protection ability, and so forth! For more information you want, welcome to contact us, or turn to our LED FAQ section.
