Xingwei MAGIC1000 series indoor/outdoor rental LED display is the latest rental LED display that has outstanding performances – great display effect, high reliability, long life span and can be compatible with various application sites.
Panel Design

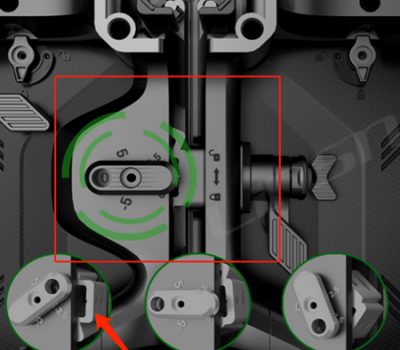

High Precision Curve Lock
Adopting precise curved lock design (-10° to +10°) to increase usability, and solve the problems of old curved lock that are difficult to use. What is more, it allows curved installation to cater to different installation environment with less cost.

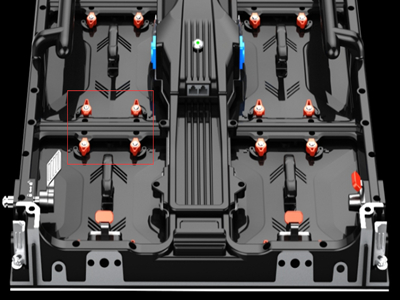

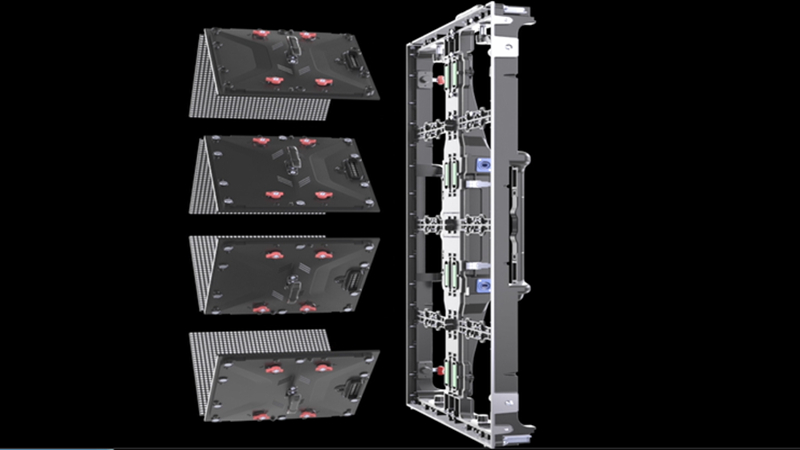

Module Quick Installation Knob
Module quick installation knob gives Xingwei MAGIC1000 series ability to simplify the installation process, saving time and labor cost.

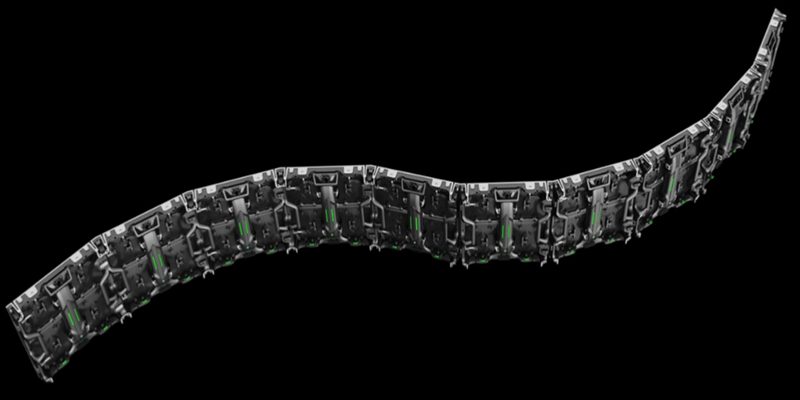

Support Curved Installation

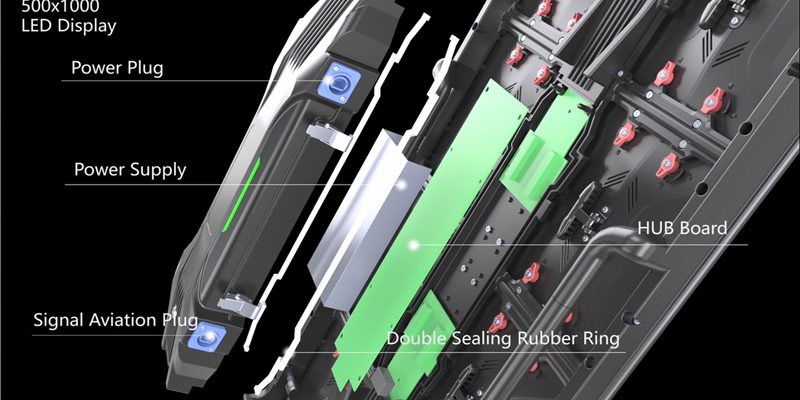

Detachable Back Cover with High Protection Level
Detachable power box and HUB board allows the LED display cabinet be easy to maintain, assemble and disassemble with high reliability.
The double sealing rubber ring design makes waterproofness more reliable, and reasonable design of power plug and signal aviation plug support easier and quick installation and disassembly.
Four Corner Protectors
Xingwei MAGIC1000 series outdoor LED display has four corner protectors of the cabinets to prevent LED to be damaged.
These corner protectors can prevent unnecessary damages of LEDs during transportation, installation and operation.
Super Light Weight, Thin Thickness
Super lightweight LED display screen with weight only 15Kg, and 33.06Ibs tile.
The light and thin cabinet can save lots of transportation cost, storage cost and insurance cost, etc.
Also, it can help to decrease the pressure of installation by saving labor cost and time.
High Protection Level
The high protection level of IP65 supports Xingwei MAGIC1000 series protects from dust and moisture and changeable environmental conditions.
PS: IP65 refers to:
1. Totally dust tight. Full protection against dust and other particulates, including a vacuum seal, tested against continuous airflow.
2. Protection against low-pressure jets (6.3 mm) of directed water from any angle (limited ingress permitted with no harmful effects).
Dual Services Simplify Installation and Maintenances
Xingwei MAGIC1000 supports dual-services including front and back services to simplify installation and maintenances for improving operability.
The dual-services function breaks the limitation of application site. For example, for site the screen having to mount on it, the front service can be indispensable. And for some applications there is need for back service, Xingwei MAGIC1000 series can support it without pressure.
Excellent Display Performances
High Grayscale, Show Real Color
Xingwei MAGIC1000 rental LED screens support 14bit grayscale. The wide grayscale ensures the screens can display real color with at least at possible chromatic aberration.
Wide Viewing Angle
MAGIC1000 series supports wide viewing angle of 140° +/-5° (@50% brightness) to perform the pictures perfectly at more angles, allowing audiences wonderful visual experiences.
Various Pixel Pitch, Support High Definition Display
Xingwei MAGIC1000 rental LED display supports various pixel pitch including 2.604mm, 2.976mm, 3.91mm and 4.81mm. Fine pixel pitch LED screen can show the images with vivid color and perfect image quality to give audiences excellent visual experiences.
Moreover, the brightness uniformity >98% can prevent uneven problems of brightness.
Xingwei P2.604 Small Pixel Pitch LED Display to Italy
High Cost Efficiency
Xingwei MAGIC1000 series indoor/outdoor rental LED display has high cost efficiency because of high-quality performance, reliable cost and all-around services with low price.
With MAGIC1000 series rental LED screens, you can have more possibilities of getting more returns on your projects!
Parameters
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
|---|---|---|---|---|
| Pixels per cabinet | 192×384 (HxV) | 168×336 (HxV) | 128×256 (HxV) | 104×208 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |||
| Brightness | ≥1000 nits; | |||
| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Refresh rate | 960-1,920Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V / 50-60Hz | |||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||
| Dimensions | 500 x 1000 x 80 mm (WxHxD)/ 19.6 x 39.2 x 3.5 inch (WxHxD) | |||
| Weight / Tile | 15 kg / 33.06 lbs | |||
| Serviceability | Front and back service | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
| Warranty | 3 years standard product warranty | |||
