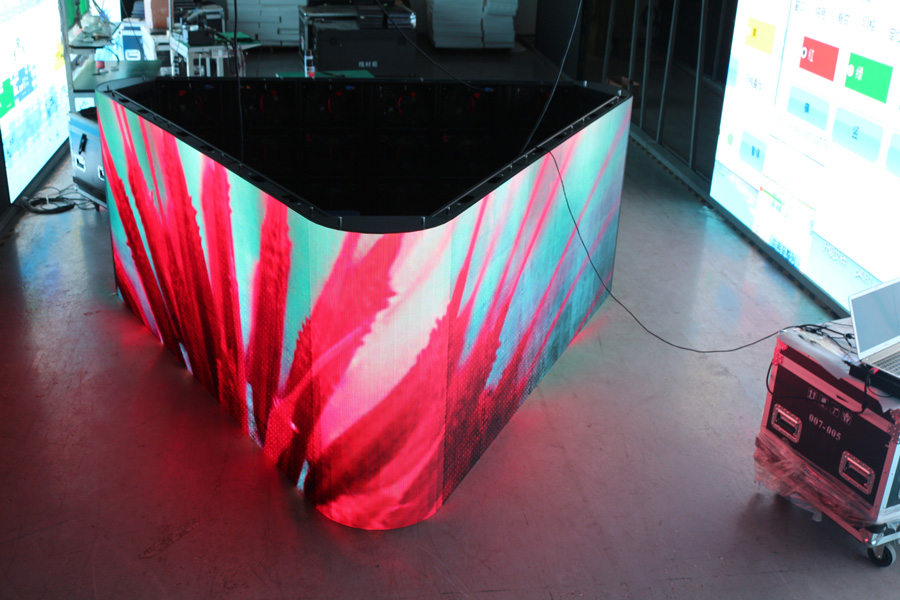

We have seen so many creative LED displays such as double-side LED wall, ball LED screen or 90° Right Angle LED display, etc. but today we want to share another innovative LED display case with you, it is amazing, interesting and attractive, that is three-sided LED display. First Let’s take a close look at the three-sided LED screen and enjoy the excellent visual appeals. We believe most people will be attracted by the amazing display when they see it.

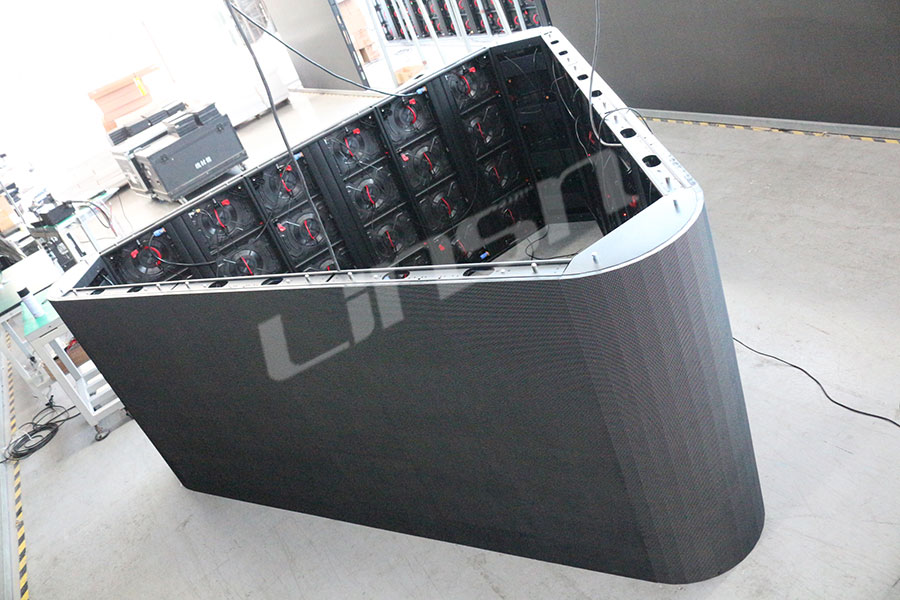

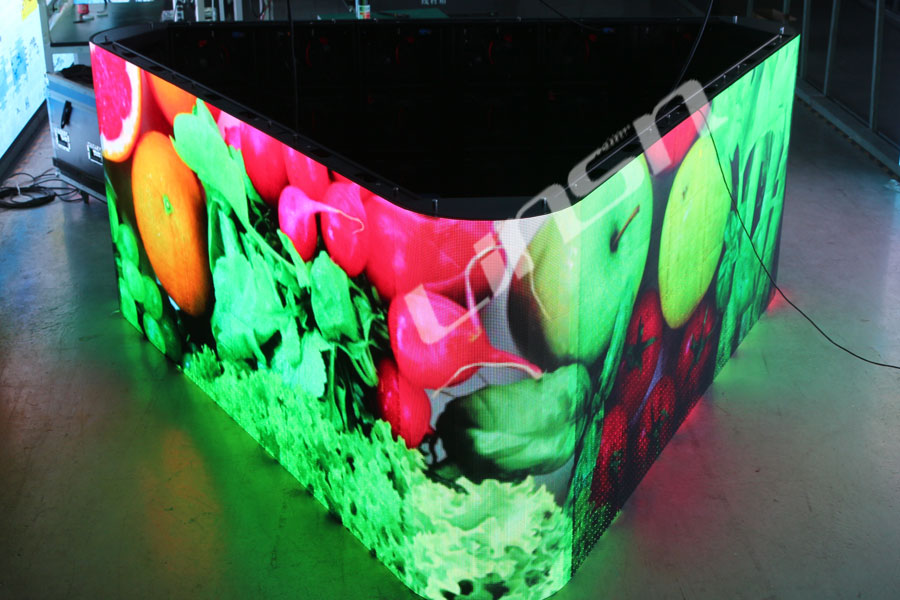

Three-sided LED display is alse called as three faces LED display. As the name implies, the LED display has three sides screen and each side can display images, texts, videos and more. The following image will give you basic idea of what it is. As is shown in the picture, Its outline roughly forms an equilateral triangle with three curved angle .
So, let’s dive into the details and see what about our three faces LED display is to be. First, Let’s see the structure chart of three faces LED display.
Structure chart

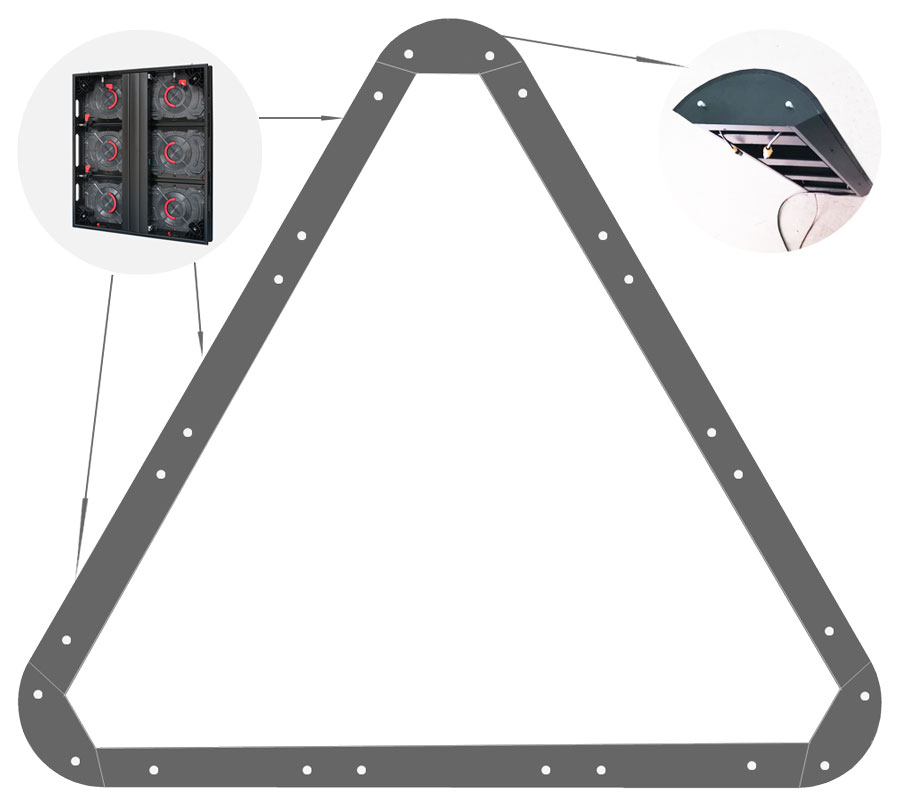

As the figure above shows, the three sided LED sign has 9pcs Xingwei OF800 series LED display cabinet with 800*1200mm size and 3pcs customized cabinet with curved angle. so the height of LED display is 1200mm and the lenght of each side is 2400mm (not including the arc length). Having looked briefly at the sturcure, we now turn to an overview of what these components is about and how they connect together.
800*1200mm LED Cabinet

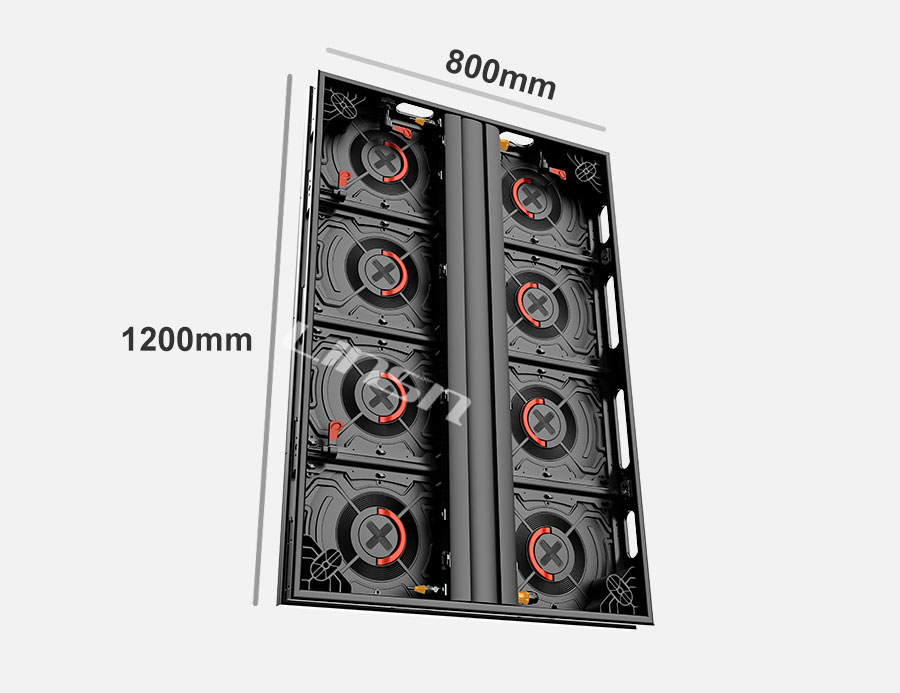

The three sided LED screen use Xingwei OF800 series LED screen cabinet as the main components, which is used for splicing the three side of the LED wall. As you can see from the above images, there are 9pcs 800*1200mm LED Cabinets to assamble the 3 faces LED screen, and there are 3pcs in each side. The size of cabinet 800mm wide and 1200mm high, and features double service design (frontal and Rear), multi function, sleamless splicing, high performance visual display, energy saving and easy fixed installation. If you are interested in further details, check here.
400*300mm LED Panel

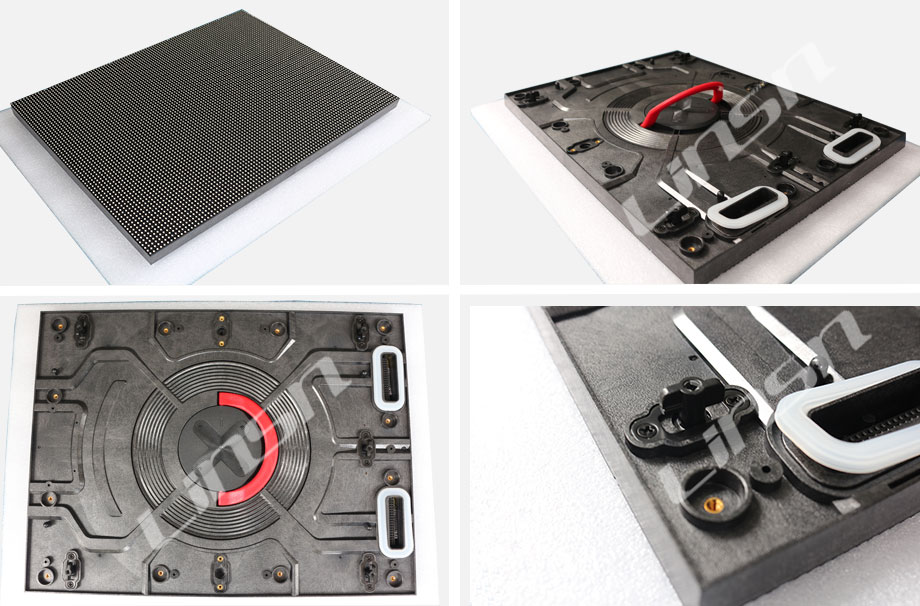

As noted above, This three sided LED video wall adopts 400*300mm LED display module for assembling 800*1200mm LED Cabinet. These special panels adopts Xingwei latest design with module Lock and humanitarian handle, supports Hot Plugging, frontal & rear service and high waterproof protection.
Curved LED Screen Cabinet

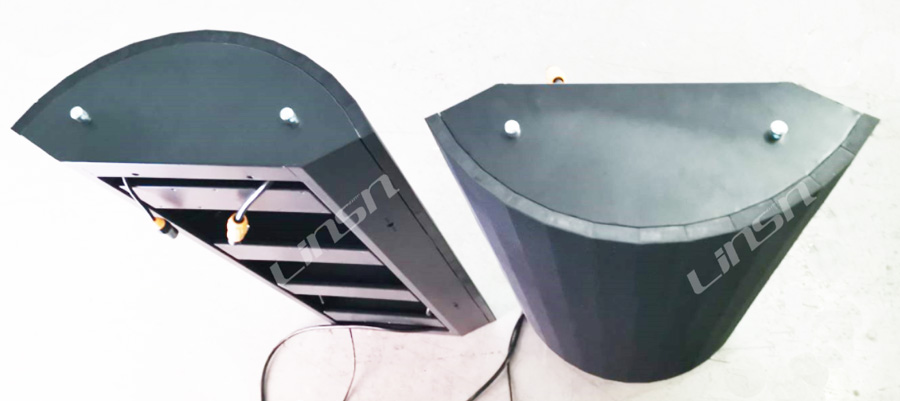

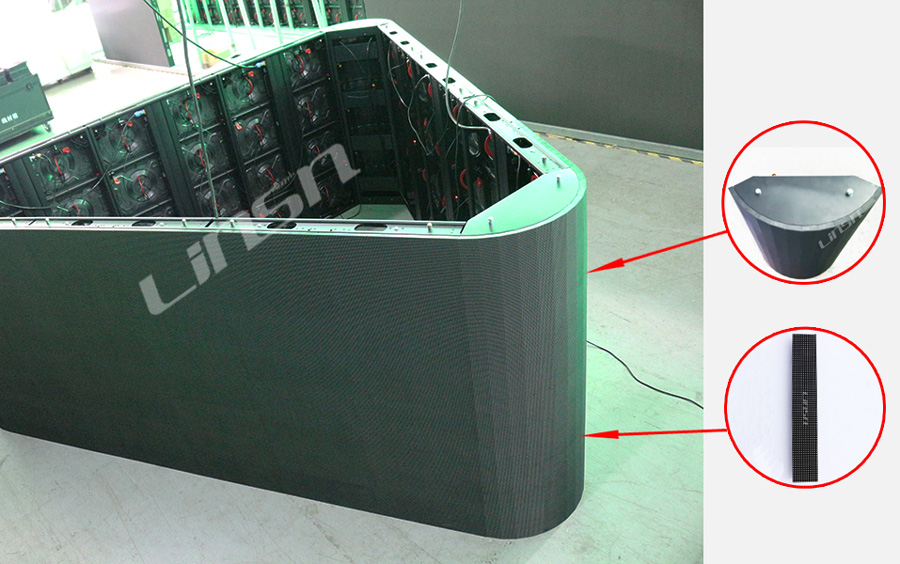

Curved LED Screen Cabinet is another crucial part of this three sides LED screen, without these 3pcs LED Cabinet, the three-sided LED display hardly to customize any angle. The structure of curved cabinet, as shown in the following figure, is similar to the structure of a arched tunnels. The angle is free, that means that we can design any angle arched cabinet to meet the installation and use requirement.
50*300mm LED Display Panel

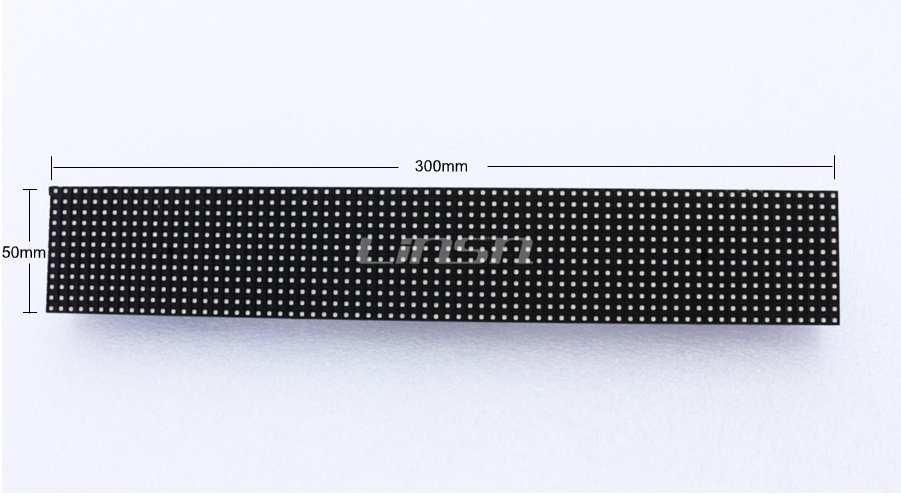

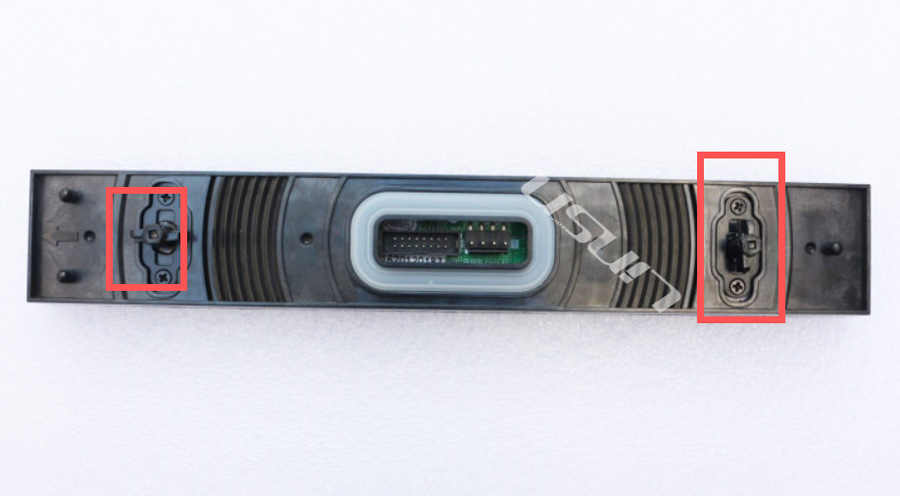

So what about the module of curved LED cabinet? In fact, it is Xingwei OF800 serice LED screen panel with small size. As the titile said, the mini LED panel size is just only 50mm width and 300mm hight as you see in the image below . Because of there small size LED screen panel, the curved LED cabinet can be custom-made with angles. Besides, if you look carefully, you will know that curved LED screen cabinet consists of 48pcs 50*300mm LED display panels, and each row has 12pcs 50mm width LED panels.
Three Sided LED display Project Case
Installation Country: Itally
Display Height: 1200mm
Display Length: 9000mm
Perimeter: 9000mm
Pixel Pitch: P4.16mm
400*300mm Module Resolution: 96X72dots
50*300mm Module Resolution: 12X72dots
Module Size: 480X320mm
Cabinet Size: 960X960mm
Cabinet Material: Aluminum Material Cabinet
800*1200mm Cabinet Resolution: 192X288dots
Curved LED Cabinet Resolution: 144X288dots
Refresh Rate: ≥1,920Hz
Project Date: 2021.04.28
