High Definition LED Screen

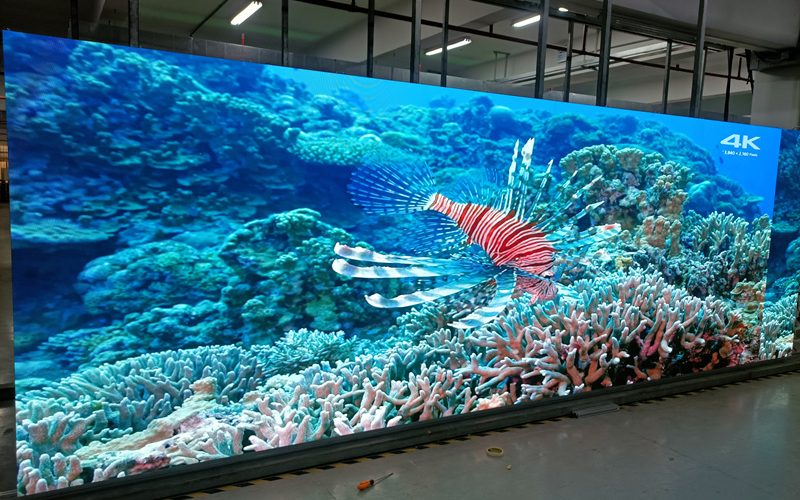

The high-definition LED screen we deliver to Korea owns high-standard quality, small pixel pitch, reliable functions, and enjoyable visual experiences for viewers. It can achieve real 4K effect, which makes the screen stands out from other competing products, and give customers more potentials to expand brand images. We have received high praise from this customer as this high-definition LED display helps him gain more customer satisfaction.
Installation Country: Korea
Cabinet mode: MA480
Display Size: 5760(W)x 1920(H)mm
Pixel Pitch: 2mm
Cabinet Resolution: 120X120dots
Module Size: 240*240mm
Cabinet Size: 480X480mm
Maintenance Method: Dual Service
Application: Indoor LED Display
Related Product - MA480 High Definition LED Display
Xingwei MA480 series indoor LED display is a popular LED display screen series for customers who pursue high-definition visual effects. The pixel pitches include P1.875, P2, P2.5, and P3, and it supports real dual-services including frontal services and back services
Thoughtful Cabinet Design
Xingwei MA480 designers consider every detail that can improve the user-friendly and performance of this LED cabinet.
For instance, the top and side handles are designed to facilitate the moving and lifting of this cabinet, and quick lock assembled on the top and side supports quick installation and reliable structure.

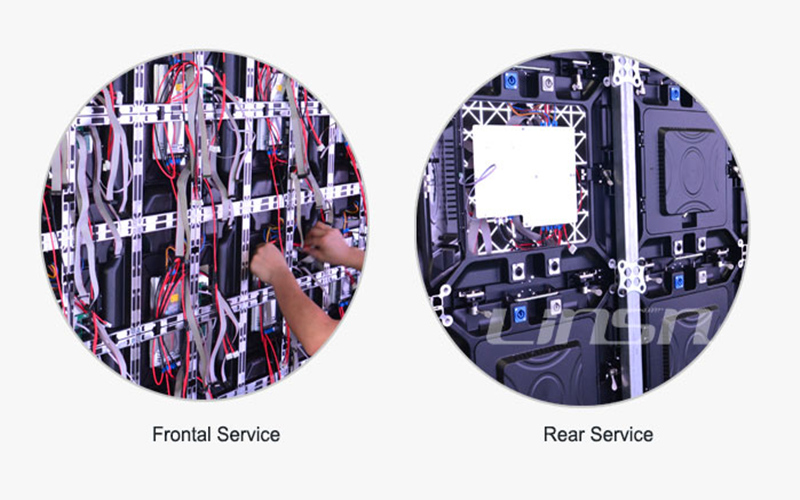

Convinience Dual Services
Xingwei MA480 high-definition LED display applies dual services including frontal services and back services. The LED display modules and other components such as the power supply all can be disassembled and assembled from frontal and back quickly.
This function also makes the wall-mounting installation available as there will be almost no room for back services, and maintenance should be done from the frontal.
High Standard Displaying Performance
The high refresh rate and high grayscale allow the display has a great play effect.
The refresh rate supports 960Hz to 3840Hz, and the grayscale is up to 16bits.
Moreover, this LED display cabinet supports fine pixel pitch such as P1.875, P2, P2.5 and P3 to play the role of high definition displays.
Speficification
| Pixel pitch | 1.875mm | 2mm | 2.5mm | 3mm |
|---|---|---|---|---|
| Pixels per cabinet | 256×256 (HxV) | 240×240 (HxV) | 192×192 (HxV) | 160×160 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |||
| Brightness | 800 – 1000 nits; | |||
| Module size | 240*240mm | |||
| Module resolution | 128*128dots | 120*120dots | 96*96dots | 80*80dots |
| Refresh rate | 960-3,840Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 16 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V / 50-60Hz | |||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||
| Dimensions | 480 x 480 x 80 mm (WxHxD) | |||
| Weight | 5.5 kg | |||
| Serviceability | Front and back service | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
| Warranty | 2 years standard product warranty | |||
Xingwei MA480 series can build high-standard high definition LED screen with multiple functions and has many useful features including dual services and excellent cabinet design. If you have any need, just contact us now!
