We provided high-quality P4 outdoor LED display for SM Entertainment Co., Ltd. in Korea last month. SM Entertainment Co., Ltd. (Korean: SM엔터테인먼트) is a South Korean multinational entertainment company. It is one of South Korea’s largest entertainment companies where it was established in 1995.
It uses our P4 LED display to place on the entrance of the company to beautify the building, show important information and attract people. This LED display screen has smooth play effect, creative design that supports four-sides displaying and durable quality can work for at least 10 years.
P4 Outdoor LED Display to Korea
Project Specification
Installation Country: Korea
Company: SM Entertainment Co., Ltd.
Pixel Pitch: P4mm
Cabinet Size: 1280*640mm
Module Size: 256*128mm
Display Size: 26.2144㎡
Protection Level: IP65
256*128mm P4 Outdoor LED Module
Xingwei P4 outdoor LED module supports high brightness and high color uniformity with great protection ability that can be up to IP65, preventing the screen from humidity and dust effectively.
Remark
1. Equipped with data & power cables, waterproof rubber ring;
2. High-standard Epistar LEDs;
3. 2 Years warranty;
4. In stock, ship in 24 hours;
5. Free online support;
3. Compatible with Xingwei, Novastar, Colorlight, Xixun LED control card, etc.

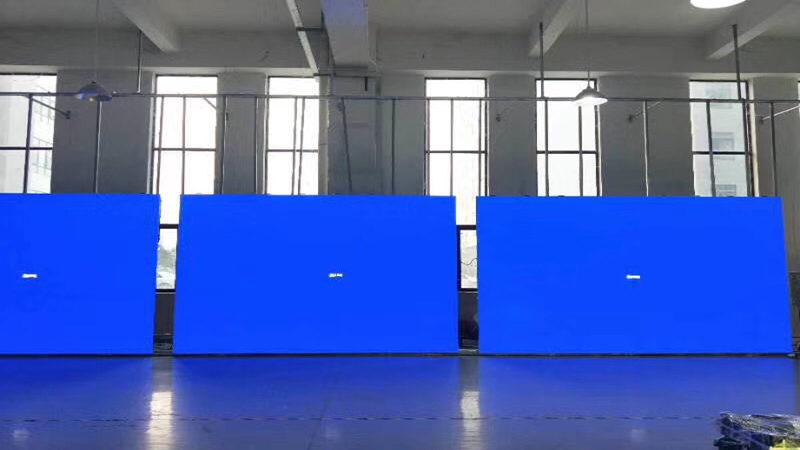

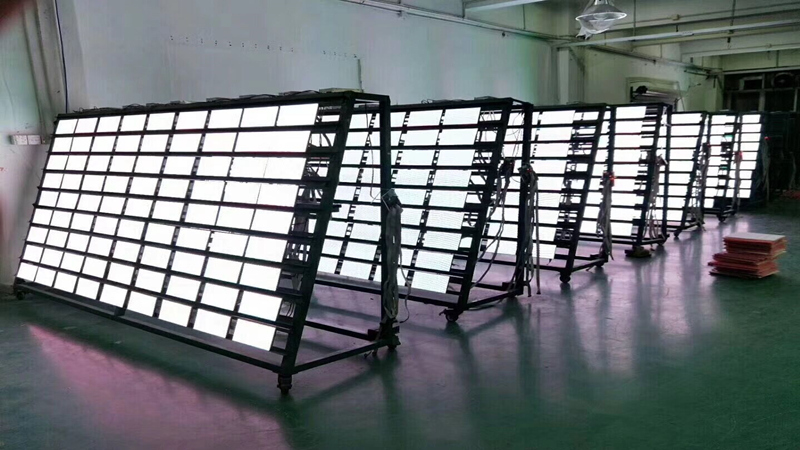

Strict Aging Test
Xingwei LED has a strict and scientific process for the aging test to ensure all our products can work for more than 10,000 hours without problems. The display can be more stable after the testing, serving customers for more time.
After the aging test, we can ensure that our LED screen is:
1. All modules are installed correctly;
2. All modules are flat, and have high uniformity;
3. No trouble such as short circuit;
4. Can work perfectly with LED control system.
After the 72 hours aging test, the white balance, video play effect, text play effect and so on will be reported to our engineers timely to make sure every screen delivered from us is reliable and stable.
Professional Team with Responsible Services
Since the establishment, we have already organized a professional team with abundant experiences and dutiful service spirit for more than 11 years. Xingwei LED provides you with one-stop services covered from installation to training and maintenance, insisting on customer-oriented corporate culture and attitude.

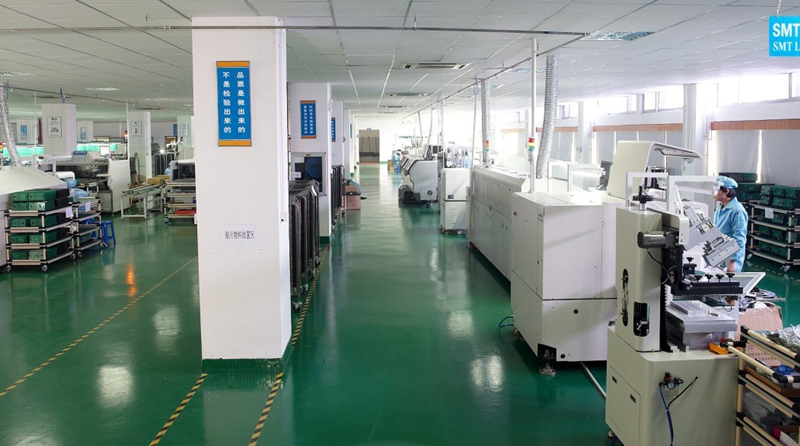

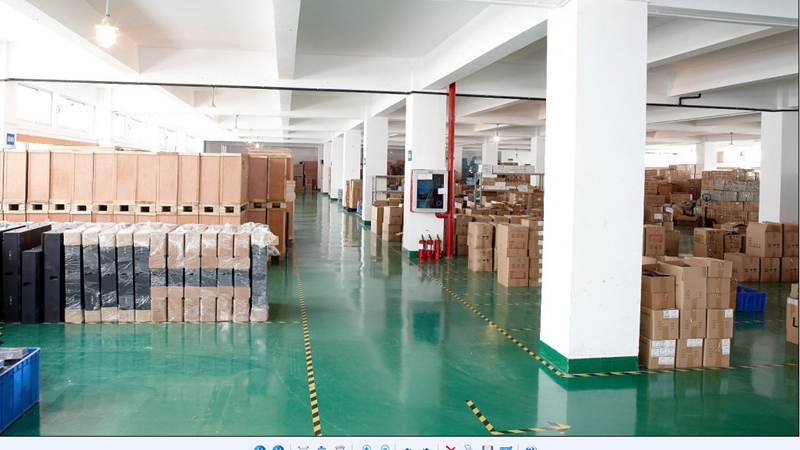

8000㎡ Advanced Factory and Equipment
Xingwei LED owns professional factory and equipment for more than 8000㎡. All our machines are precise, reliable and accurate. Xingwei has a set of efficient production line and effective workers, always dedicates to great cost-effective products and bring satisfying customer experience.
Specification
| Model | Xingwei-P4-O-64X32 | ||||||
| Resolution | 64(H)×32(V) | ||||||
| Pitch | 4mm | ||||||
| LED Arrangement | SMD2525 | ||||||
| Driver Mode | Dynamic 1/16 Duty constant current | ||||||
| Size | 256mm×128mm | ||||||
| Electricity Parameter | |||||||
| Optical Ratings | |||||||
| Brightness | 5500-6000cd/M2 | ||||||
| View Angle | 140 degree ( horizontal) 140degree(vertical) | ||||||
| View Distance | 4m-40m | ||||||
| Gray Scale | 8bits input, correction with 16bits | ||||||
| Display Color | 16.7M | ||||||
| Brightness Adjustment | 100 levels | ||||||
| Power Supply | |||||||
| Operation Power | AC100-240V 50-60HZ Switch-able | ||||||
| Maxim Power Consumption | 750 W/m2 | ||||||
| Average Power Consumption | 350 W/m2 | ||||||
| Control System | |||||||
| Correction Scale Level | 16bits | ||||||
| Frame Update Frequency | 60Hz | ||||||
| Screen Refresh Frequency | 960-1920HZ/S | ||||||
| Gamma Correction | -5.0—5.0 | ||||||
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI | ||||||
| Control Distance | Ethernet cable 100m, optical fiber 5km | ||||||
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 | ||||||
| Color Temperature | 5000-9300 adjustable | ||||||
| Brightness Correction | dot by dot, module by module, cabinet by cabinet | ||||||
| Reliability | |||||||
| Operating Temp. | -20-60 Celsius degree | ||||||
| Operating Humidity | 10-95% RH | ||||||
| Operating Life | 100,000 hours | ||||||
| MTBF | 5000 hours | ||||||
| Continuous Working Time | ≥48 hours | ||||||
| Protection Level | IP65 | ||||||
| Out of Control Pixel Rate | 0.01% | ||||||
We always offer our customers with high-quality outdoor LED displays for various applications, and we have a well-trained team that can deal with your all installation and technical problems. For P4 outdoor LED displays, we have achieved many cases worldwide and enjoyed high customer satisfaction. Want the best LED display for your business to win more profits and customers? Just contact us, we will give you the best customized solutions for you!
