Xingwei EV960 outdoor energy-saving LED display with size of 960*960mm, excellent energy-saving ability which can save you lots of money in the long-term.
It is suitable for both indoor and outdoor applications with perfect design and outstanding displaying performances with high brightness and high contrast rate.
Take some time to know this product will no doubt help you find the ideal LED display screens for your business.
Excellent Energy-saving Ability
Xingwei EV960 series can save more power consumption cost than other competing goods while still with higher brightness.
For example, only 152w/㎡ is needed for EV960 series with brightness up to 7000 nits while 185w/㎡ of electricity will be consumed for Absen XD series with brightness only 6000 nits.
The average cabinet power consumption of EV960 Outdoor LED display is only 150w.
Xingwei EV960 adopts CCES technology, meaning lower power consumption with high brightness available which up to 10,000 nits!
High Contrast with High Brightness
Xingwei EV960 outdoor energy-saving LED display supports high brightness up to 7000 to 12000 nits, and contrast ratio 16500:1.
With its low power consumption, it can achieve super high-quality displaying with low operation costs, and detailed and vivid pictures that can give your audiences nice viewing experiences.
No fear to direct sunlight and changeable ambient light, it shows the pictures perfectly and clearly.
Perfect Cabinet Design
Aesthetic appearance with practical functions: 1) Full sealed die-casting aluminum module chassis; 2) Waterproof connectors between modules; 3) 90% Metal material – seamless splicing cabinet; 4) Great protection design preventing moisture and heat; 5) Humanized installation and maintenance design with super-quick connection and disassembly; 6)…..

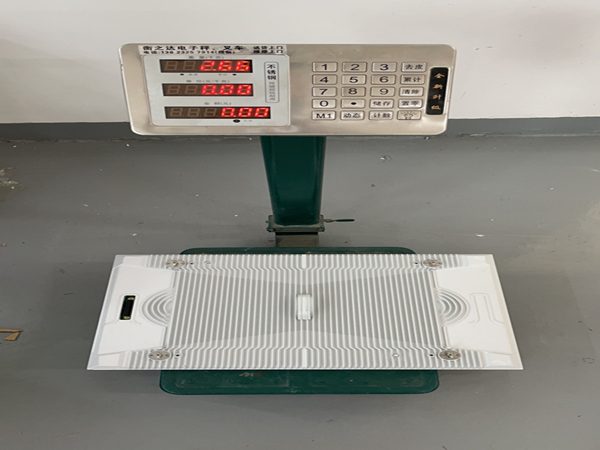

Super Light Weight
EV960 series LED display owns supper light weight to ease the burden of transportation and installation. Weight: only 28KG/㎡ for aluminum frame Weight: only 31KG/㎡ for mental frame

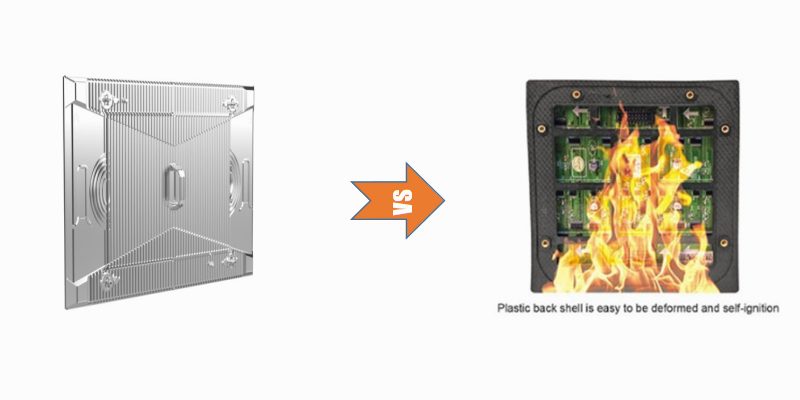

Aluminum Chassis
Xingwei EV960 outdoor energy-saving LED display adopts aluminum chassis which can lead the heat of the lamp board emitted through the glue facing to the air. Compared with competing goods that are only designed with closed chassis, Xingwei EV960 has better heat dissipation ability.
Convenient Edge Lock
Xingwei LED EV960 series adopts edge lock without screwing design while traditional LED screens use many screws when to install or maintain. Only 8s installation with the quick and reliable locks helps to save budgets and energy!

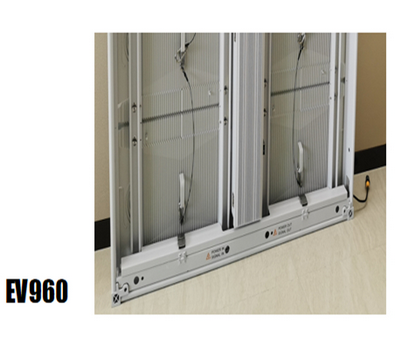

Neat Cable Channel Design
The cable channels are designed at the bottom of the LED panel, which are more neat and elegant. It allows cable to hide inside, and protects the cable from bitten by rats and insects.

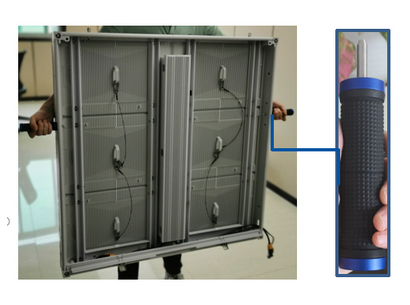

Easy Handle Hole
EV960 series has special handle holes to help to move and lift it easily. More details you can find on this cabinet all express the humanized concepts of designers.

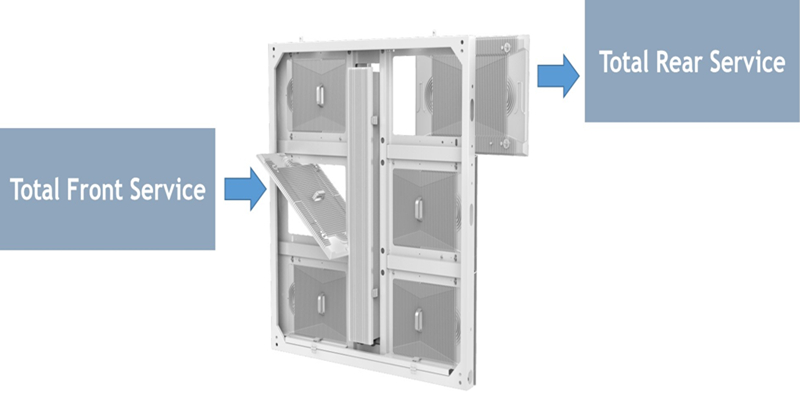

Total Back and Front Services
Xingwei LED EV960 series outdoor LED cabinet supports real dual services, allowing both back and front services.
The dual services ability helps EV960 achieves super fast assembly and disassembly which can save costomers’ time and budgets.

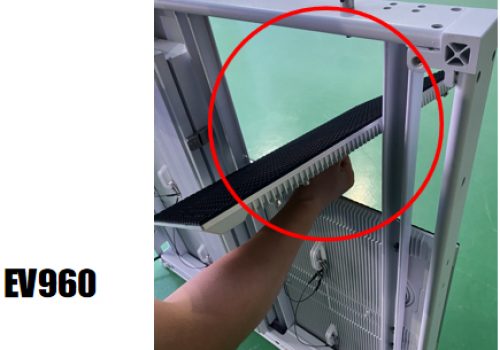

Fast Installation and Maintenance
EV960 modules, power supply and receiving card support total front and back maintenance, and cabinets support front or back installation. This specialty can save you lots of time and energy when operating installation and maintenance.
The dual services design, fast four locks, light and thin cabinet, humanized details all make the installation super easy.
Only 8 seconds, you can install the EV960 LED cabinet quickly and reliably.

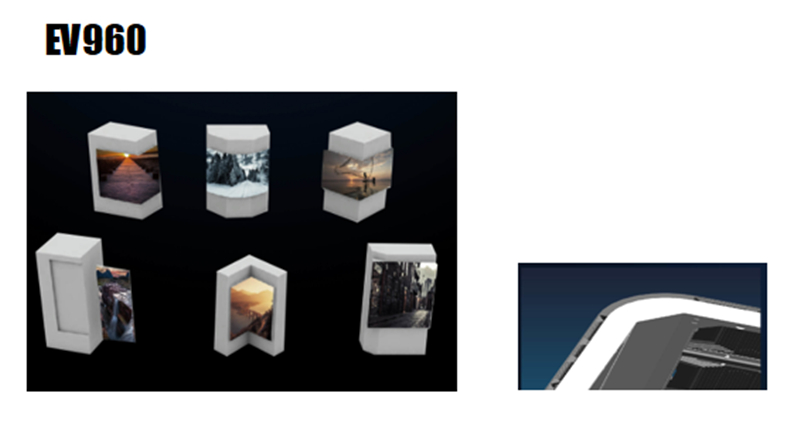

Support Curved LED Screen
Xingwei EV960 series supports customized curved installation with seamless splicing. This can meet various installation requirements of locations where need curved LED display screen.
Multiple Sizes Available

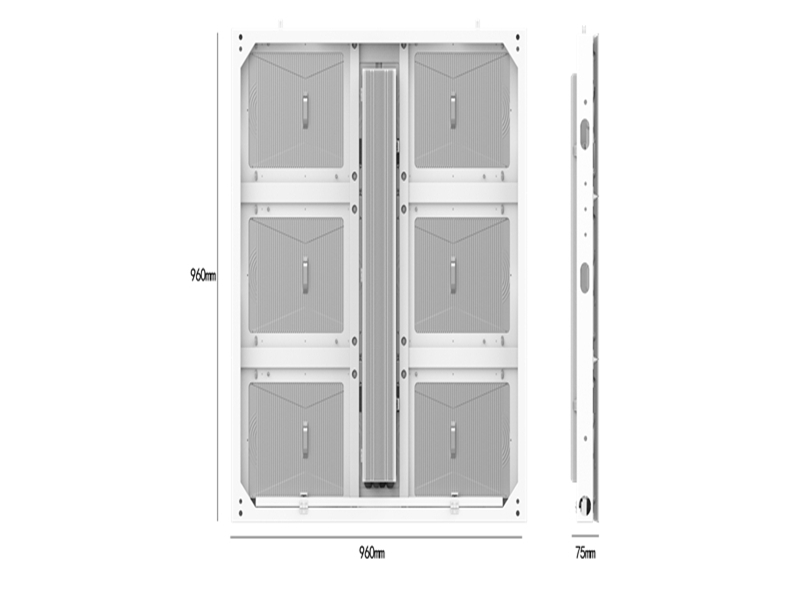

Available size: 960*1280mm/960*960mm/960*640mm/1440*1280mm/ 1440*960mm Available pixel pitch: P6.67, P8, P10 The cabinet size: 960*960mm with thickness only 75mm LED display module size: 480*320mm
| Product | EV960 |
| Maintenance | Total Front and Back service |
| Heat dissipation | Aluminum chassis |
| PUB connector | Pin Header |
| Fixed mode | Easy lock |
| Power supply/ Hub card Maintenance | Total Front and Back service |
| Power box heat dissipation design | Natural heat dissipation + Rib |
| Power/ Signal connection | Seatronic Aviation connector |
| Installation | Front and Back mounting |
| Panel material | Aluminum |
| Handle | Left and right handle hole |
| Panel thickness(mm) | 75 |

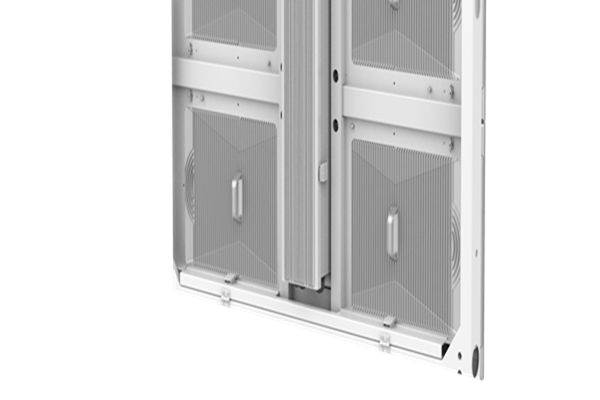

Realiable Protection Ability
Strong Flame Resistence
The whole screen can reach 5VB fireproof protection level, owns high heat durability that can resist heat to cause unnessary damages to the inner components.
| Flame retardant grade | After 10-second burn tests on the sample | How many seconds will the flame be extinguished? | Can the drop particles ignite cotton? |
| 5VB | 5 times | 60 seconds | Yes |
| V-0 | 2 times | 30 seconds | No |
| V-1 | 2 times | 60 seconds | No |
| V-2 | 2 times | 60 seconds | No |
| HB | For samples 3-13 mm thick, the combustion rate ≤ 40 mm/min; Samples ≤ 3 mm thick, burning speed ≤ 70 mm/min. | ||
Strong Waterproof and Dustproof Resistence
Xingwei EV960 can reach waterproof level of IP66, while basically other competing products can only reach IP65.
The product design shows every detail that can help to improve the protection level such as cooling ribs, drain hole, aluminum chassis and heat-resistant raw materials.
Drain hole is designed at the bottom of the panel to prevent ponding.
The highest waterproofing level can reduce water entering as much as possible, and help to prolong the products’ life.
Testing Report Download
Xingwei EV960 Burning Testing Report
Xingwei EV960 IP66 Waterproof Testing Report
Parameters
| Model name | P6.67 | P8 | P10 |
| Pixel Pitch (mm) | 6.667 | 8 | 10 |
| Pixel Density (dot/m2) | 22500 | 15625 | 10000 |
| LED sealing Type | SMD2727 | SMD3535 | SMD3535 |
| Module Size (mm * mm) | 480*320 | 480*320 | 480*320 |
| Module Resolution (PX* PX) | 72*48 | 60*40 | 48*32 |
| Brightness (cd/m2) | 6000 | 6500 | 6500 |
| Grey Scale（bit） | ≥14 | ≥14 | ≥14 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Maximum Cabinet Power Consumption (W) | 550 | 550 | 550 |
| Average Cabinet Power Consumption (W) | 150 | 150 | 150 |
| Cabinet Size (mm * mm) | 960*960 | 960*960 | 960*960 |
| Cabinet Weight (Kg) | 28KG | 28KG | 28KG |
| Cabinet Thickness(mm) | 75 | 75 | 75 |
| Horizontal Viewing Angle (Deg) | 160 | ||
| Vertical Viewing Angle (Deg) | 140 | ||
| Input Voltage (V) | 110-220V/200-240V | ||
| Working Temperature (℃) | -20~ +40 | ||
| Working humidity（RH） | 10%~90% | ||
| Storage temperature range | -40~ +80 | ||
| Operation humidity (RH): | 10%~90% | ||
| Waterproof Level | IP67 | ||
| working life | 50000H | ||
| Working Environment: | Outdoor | ||
| Installtion Method | Fixed Installation | ||
Xingwei EV960 series energy-saving outdoor LED screen has high displaying performances, high protection level, reasonable cabinet design, multiple sizes and pixel pitch available and so on. Xingwei EV960 enjoys many advantages over other competing products with the same and even lower prices.
