Novastar MCTRL600 User Manual and Full Introduction!


NovaStar MCTRL600 LED display controller can deliver unique results with 1x HDMI input, 1x DVI input, 1x audio input, and 4x Ethernet outputs.

Up to 1920×1200@60Hz resolutions are supported by a solo MCTRL600, and cascading multiple units can be done through UART. Also, Novastar MCTRL600 can communicate with the PC through type-B USB port.

This LED display controller is affordable and efficient and finds its primary use in fixed installations and rentals. Concerts, security monitoring centers, sports centers, and live events are just a few of the different applications that this powerful controller can be used for.

1. Novastar MCTRL600 Features

2. Novastar MCTRL600 Price

3. What Resolution Is MCTRL600?

4. What Size Is NovaStar MCTRL LED Display Controller?

5. MCTRL600 Specifications

6. MCTRL600 PDF

1. Novastar MCTRL600 Features

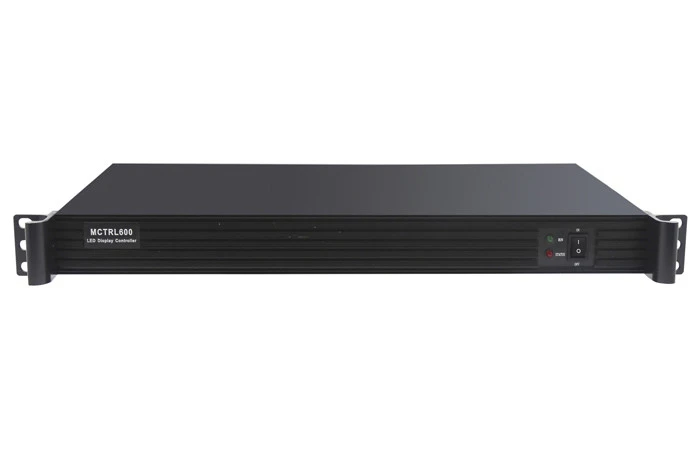

novastar mctrl600

Go to MCTRL600 Product Page!!

(1) 3 types of input connectors

− 1x SL-DVI

− 1x HDMI 1.3

− 1x AUDIO

(2) 4x Gigabit Ethernet outputs

(3) 1x light sensor connector

(4) 1x type-B USB control port

(5) 2x UART control ports: they are used for device cascading. Up to 20 devices can be cascaded.

(6) Pixel level brightness and chroma calibration: working with NovaLCT and the calibration platform, the controller supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.

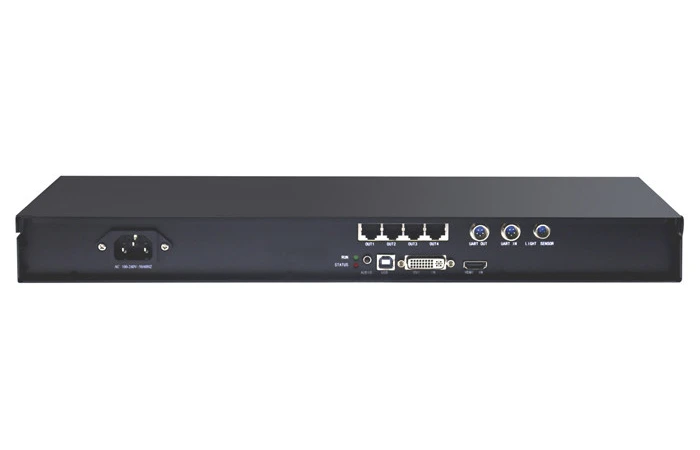

Back Image:

1.1 Input

(1) DVIIN: 1x SL-DVI input connector

Resolutions up to 1920×1200@60Hz

Maximum width: 3840 (3840×600@60Hz)Maximum height: 3840 (548×3840@60Hz)

DoesNOT support interlaced signal input.

(2) HDMIIN: 1x HDMI 1.3 input connector

Resolutions up to 1920×1200@60Hz

Maximum width: 3840 (3840×600@60Hz); Maximum height: 3840 (548×3840@60Hz)

HDCP 1.4 compliant

DoesNOT support interlaced signal input.

(3) AUDIO: Audio input connector

1.2 Output

4x RJ45 Gigabit Ethernet ports

Capacity per port up to 650,000 pixels

Redundancy between Ethernet ports supported

1.3 Control

(1) USB:

Type-B USB 2.0 port to connect to PC

(2) UART IN/OUT:

Input and output ports to cascade devices. Up to 20 devices can be cascaded.

2. Novastar MCTRL600 Price

Novastar MCTRL600 price is around $375. We offer 5% discount when the order is over $2500 and 10% discount when the order over $5000.

Just contact us for your latest quotation for MCTRL600 controller, we own the almost best price in the market!

3. What Resolution Is MCTRL600?

MCTRL600 Supports resolutions up to 1920×1200@60Hz.

4. What Size Is NovaStar MCTRL LED Display Controller?

As the picture shows below, the size of Novastar VX4S can be 482mm*239mm*44.4mm.

novastar mctrl600 size

5. MCTRL600 Specifications

General Specifications

Specifications of Machine

Features
