In this post, I am going to review the EV960 series LED panel to discover why it is suitable for naked-eye 3D curved billboard and indoor 3D LED display to generate more profits for you than other competing products from the 5 most important points.
I will drive deep into this LED screen series, and aspects will be evaluated including:
1. Cost
2. Installation and maintenance
3. Energy consumption
4. Visual quality
5. Cabinet design
So make sure to read this review until the end. That way you can make better decision for your LED screen investmentï¼
What Is 3D Curved Billboard, How Naked-eye 3D Works?
Before I get into the review EV960 3D LED wall panels, I want to quickly let you know some important info on such curved LED screen.
What Is 3D LED Display?
How does 3D billboard work?
Are 3d billboards real ?
How much does a 3D billboard cost
How to make 3D billboard?
1. EV960 3D Curved Billboard Cost
Here are some main points that decide the 3D billboard price:
(1) Power consumption
(2) Supporting structure cost
(3) Space
(4) Maintenance cost
(5) Installation labor cost
(6) Transportation cost
For EV960 LED screen, it can save your budget from all these points!
Do not believe? Just follow us to discover how it saves your money while still providing you with better performances!
1.1 Save Power Consumption Cost

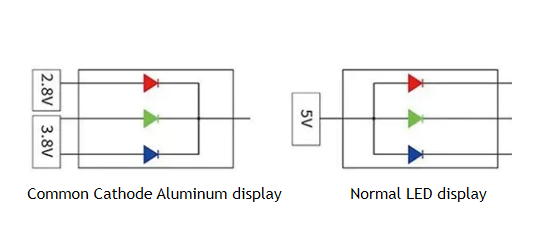

The advanced power-saving technology CCES, which stands as Common Cathode Energy Saving, can save more electricity cost for you, and also much more environmental-friendly.
The dual voltage output enables lower consumption, easing the burden of electricity bills.
Besides, Xingwei EV960 can provide higher brightness while cost less power consumption. For example, 152w/㎡ for 7000 nits VS 185w/㎡ for 6000 nits.
Take an example of a standard billboard size of 45*13ft:
| Model | Normal 10mm product | EV960 VR 10mm |
| Screen Size | W13.44m x H3.84m(44ft x 12.6ft) | W13.44m x H3.84m(44ft x 12.6ft) |
| Max Power Consumption per sqm(typical) | 790W/m2 (6000nits) | 500W/m2 (6000ntis) |
| Power consumption per screen (Typical) | 40kw | 26kw |
| Air-conditioner | 1HP, 5 unit, say 1HP=800W 4kW | Not required, automatic ventilation 0kW |
| Total Power Consumption | 44kw | 26kw |
| Electricity Bill Calculation | ||
| Operating hour: 16 hours/ day | Power Tariff @ 0.12USD/ kWh | |
| Estimated monthly electricity bill | USD 2,534 | USD 1,498 |
| Total bill for 1 years | USD 30,408 | USD 17,976 |
Added Value: USD 12,432 per billboard for 1 year!
1.2 Saving Supporting Structure Costs

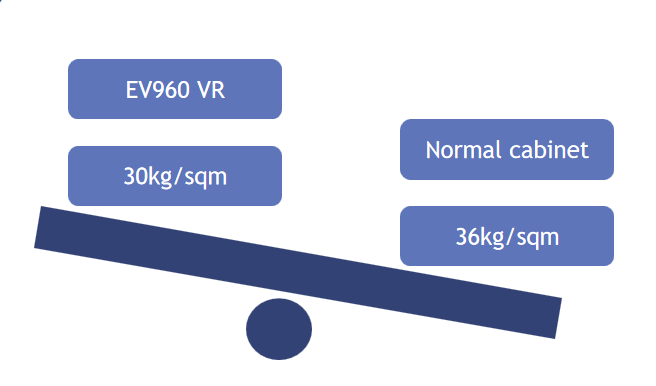

With the lighter weight of 30Kg/sqm, EV960 VR series can save supporting structure costs, and support directly shift without changing its supporting structure.
1.3 Saving Space
Xingwei EV960 series 3D LED display supports total front and back service, thus no other maintenance space is needed.
Here is an instruction video on how to maintain EV960 LED display from the front. As you know, it allows more installation methods including wall-mounting because of no need for the back room.
1.4 Saving Maintenance Costs

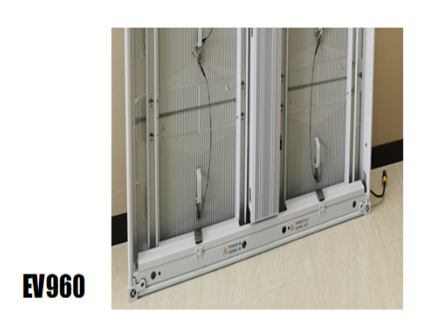

a. Power box inner wires: 200℃ b. Between the cabinets：-40 +150℃ For outdoor applications, EV960 is safe and can reduce the risks of weak performances caused by high temperatures. a. EV960 VR features IP66 enclosed module and power box b. 5VB fireproof certificate(TUV) c. Every cabinet passes a reliability test program before shipping It owns high-standard protection ability including heat resistance and waterproof ability. EV960 series cable channel design where is in the bottom of the panel, allowing cables hidden inside, which looks more elegant and tidy. Moreover, it can protect the cables from bitten by rats.Cables high temperature resistant
Reliability
Cable channle design
1.5 Saving Labor Costs
• Slim and lightweight, thus less labor needed
• Fast connection on wires, higher installation efficiency
1.6 Saving Transportation Costs
With the lighter weight of only 30Kg/sqm and a thinner cabinet with only 75mm thickness, the Xingwei EV960 series screen needs fewer transportation costs.
2. Installation and Maintenance
Xingwei EV960 series outdoor LED display supports total front and back service, which can save you lots of maintenance and installation time.
Moreover, the EV960 disassembly module only needs to use the spanner to directly open the lock, four locks in one module, and only 8s installation.
The handle helps people lift the screen easily which can save lots of energy and time to maintain and install.
EV960 data as below:
| Remove | Time |
| Front service for module | 20 seconds |
| Back service for module | 23 seconds |
| HUB card（back maintenance） | 78 seconds |
| Power supply(back maintenance) | 70 seconds |
| Power box( front maintenance) | 200 seconds |
Here are more information about Front access LED display, just read it through to discover more featured products!
3. LED Screen Energy Consumption
The energy-saving functions of Xingwei EV960 are more effective than other competing products, which can provide higher brightness while cost less power consumption (For example 152w/㎡ for 7000 nits VS 185w/㎡ for 6000 nits).
Here is the chart of comparison of electricity cost of EV960 LED screen series with other normal LED cabinets.
| 100sqm EV960 series compared with normal cabinet | |||
| Update P10 7000nits | Normal P10 6000 nits | Money you save | |
| Saving power consumption | Average 150W/SQM | Average 300W/SQM | |
| 1 Day | 288KW | $18.72 | |
| 1 Year | 10KKW | $6,832.80 | |
| 3 Year | 30KKW | $20,498.40 | |
| 5 Year | 50KKW | $34,165.00 | |
| 2019 US Industrial/Commercial electricity rate: 0.065/KW | |||
That is really a bunch of money if we want to use our LED display for a long-term, right?
The saved money can even up to more than $30,000 in five years!
4. EV960 3D LED Screen Visual Performance
What is the most important elements of a LED screen – the outstanding visual quality, which is no doubt.
We all want our investment is wise, and cost-effective. And things determine the factor include brightness, display uniformity, grayscale, contrast ratio, and so on.
So, how about the visual performances of EV960 3D LED wall panels?
First of all, let’s see what are the requirements of a high-quality LED 3D billboard.
(1) high refreshment: ≥3840hz
(2) High grayscale: ≥14bit
(3) High dynamic contrast
(4) Configure multi-graphics card
These all can be met by EV960 series! It has high grayscale from 14bit to 16bit, high contrast ratio, and high refreshment!
Just as you see, 3D LED screen needs high-standard visual performances to display 3D contents appropriately, thus choosing suitable LED cabinets are critical.
EV960 LED Screen Customer Case
5. EV960 3D LED Display Design
EV960 3D LED screen cabinet adopts fast lock system which can be assembled and disassembled quickly, while still enable the stability of while system. The convenient handle hole supports people to move and lift the cabinets easily. Especially for LED billboard which needs large number of LED cabinet, this feature is very useful.5.1 Fast Lock System
5.2 Convenient Handle Hole
5.3 Aluminum Chassis
EV960 uses aluminum chassis, so the heat of the lamp board is emitted through the glue facing to the air.
What is more, it has higher protection ability, and less risk of transformation.
5.4 Improved Protection Ability
The cooling rib expand heat loss of LED module, achieving better cooling effect.
And the drain hole protects the module from ponding, avoiding excessive moisture.
5.5 EV960 LED Screen Specifications
Specifications
| EV960 Specification Sheets |
| EV960 IP66 Protection Level Testing Report |
| EV960 Burning Testing Report |
Go to EV960 Product Page
To Sum up
As you see, EV960 3D LED displays can save you bunch of money, and also provide you with outstanding and stable visual performances. You can totally trust it to become your reliable choice for
You can get all these advantages in this post just considering these powerful LED screen series!
Wanna get discounts of such screen, or join our free sample activity to get your free LED modules and cabinets?
Just fill in the simple form to get your better quotations, or anything you want to know about naked-eye 3D curved billboard!
