Do you want to know the latest P10 LED module price, and the related factors that determine the final prices, so you can estimate whether the P10 LED display module is cost-effective enough or not? Here we will give the information you want!
P10 LED Module Price
Here we list some representative P10 LED display modules, the P10 LED module price, and their specifications.

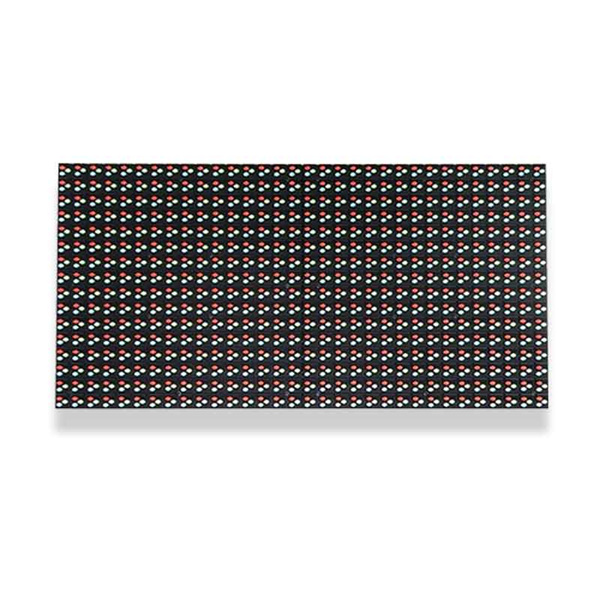

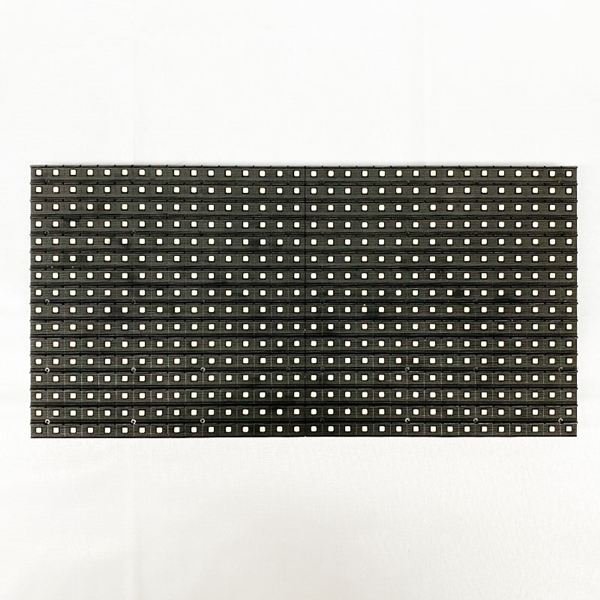

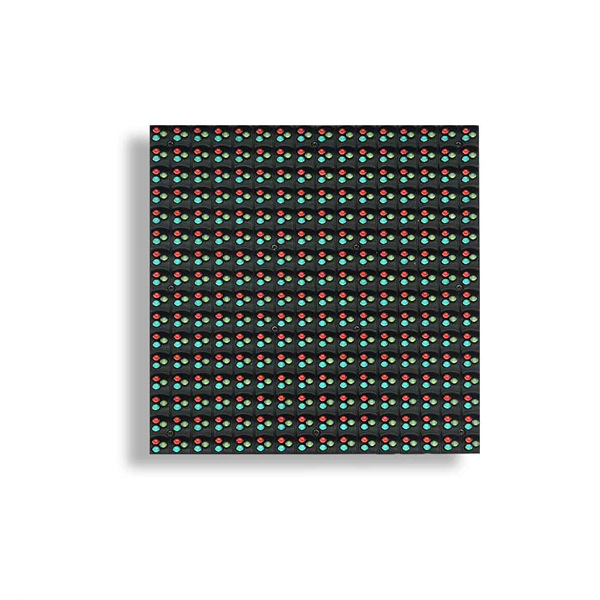

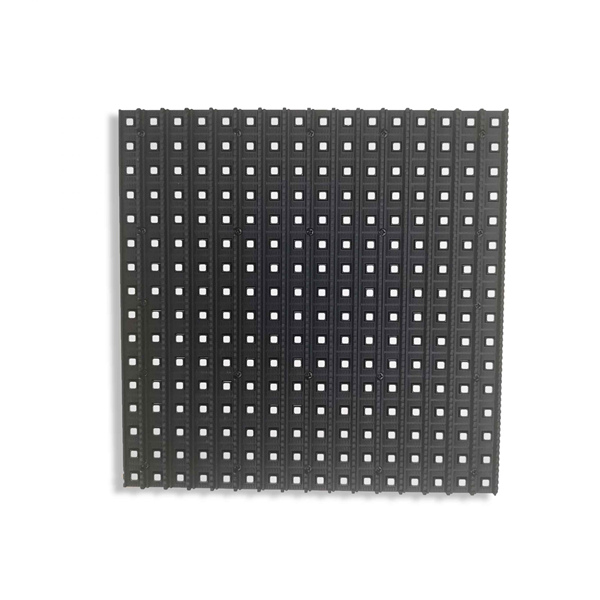

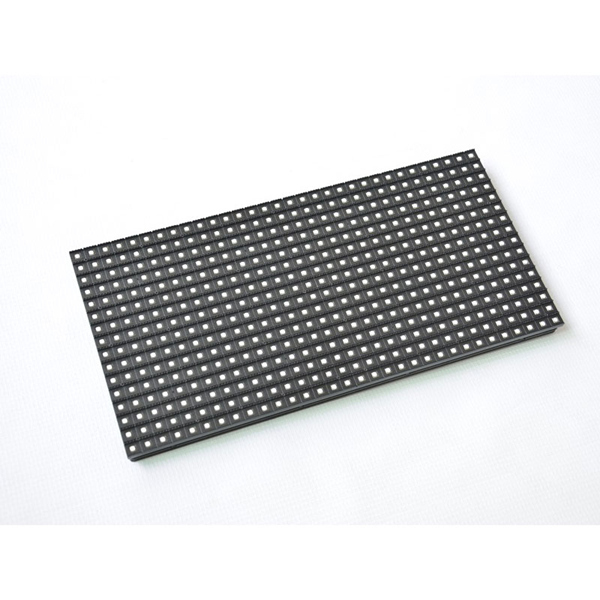

LED module Price: $13.30 Pixel Pitch: 10mm Module Size: 160*160 mm Model Pixel: 16*16 Pixels LED Type: DIP 346 Click here LED module price: $32.30 Pixel Pitch: 10mm Module Size: 320*160 mm Model Pixel: 32*16 Pixels LED Type: DIP 346 Click here LED module price: $19.00 Pixel Pitch: 10mm LED Type: SMD3535 Module Size: 160*160 mm Model Pixel: 16*16 Pixels Click here LED module price: $24.00 Pixel Pitch: 10mm LED Type: SMD3535 Module Size: 320*160 mm Model Pixel: 32*16 Pixels Click here LED module price: $19.00 Pixel Pitch: 10mm LED Type: SMD3535 Module Size: 320*160 mm Model Pixel: 32*16 Pixels Click here
The P10 dip LED display modules and SMD LED display modules we provide have multiple sizes avaliable, and the LED module prices we offer are affordable. If you want to know more, just click contact us, we can send you our product catalogues!
P10 LED Module Specifications
| P10mm Outdoor LED Module Specifications Download |
| P10mm DIP346 Outdoor LED Module 160x160mm |
| P10mm SMD3535 Outdoor LED Module 160x160mm |
| P10mm SMD3535 Outdoor LED Module 320x160mm |
| P10mm SMD3535 Outdoor LED Module 320x320mm |
| P10mm DIP346 Outdoor LED Module 320*320mm |
What Is P10 LED Module?
A P10 LED display module is a LED module with pixel pitch 10mm, which means there will be 10mm distance from the center of a LED lamp bead to the center of the neighbouring LED lamp bead.
This type LED module is mainly used for outdoor LED display, and can achieve a perfect balance between visual effect and costs!
What Factors Decide P10 LED Display Module Price?
Here we list some factors that will influence the final price of LED display module, and we will give you corrosponding details you may need.
P10 LED module size
There are three main sizes of outdoor P10 LED panel: 320x160mm, 160mmx160mm, 320mmx320mm.
| P10mm LED Module Size | P10mm LED Type | Service Method |
| 160mmx160mm | DIP346/SMD3535 | Rear Service |
| 320mmx160mm | DIP570/SMD3535 | Rear Service |
| 320mmx320mm | DIP346/DIP570/SMD3535 | Front & Rear Service |
Generally speaking, the larger the size, the higher the price. However, there are still many other factors such as brands of LED lamp bead, PCB board, LED module type and others.
P10mm LED Module Consumption
Here we give you some information of P10 LED module consumption for you to calculate how much you will pay for the power consumption of your screen!
| P10mm LED Module | Input Voltage | Input Current | Power Consumption | Brightness |
DIP LED 160X160mm-4S | 5V | 8A | 40W | 7000 -10000 nits |
SMD LED 160X160mm-4S | 5V | 7.5A | 37.5W | 6500-7000 nits |
SMD LED 320X160mm-2S | 5V | 8.5A | 42.5W | 6500-7000 nits |
SMD LED 320X160mm-4S | 5V | 5.5A | 27.5W | 4500-5000 nits |
SMD LED 320X320mm-2S | 5V | 16A | 80W | 6500-7000 nits |
DIP LED 320X320mm-4S | 5V | 16A | 80W | 6500-7000 nits |
P10 DIP LED Module VS P10 SMD LED Module
DIP LED module and SMD LED module are both common for outdoor LED screen applications.
SMD LED display modules are widely used in the current market, accounting for almost 80% market share at present. The RGB lamp beads can achieve any color you want, and display the videos and images fluently.
If you only need to display text content, and need the display to have super high brightness and waterproof ability, you can think about dip LED display module. The price is also cost-effecitve!
Conclusions
P10 LED module price we offer here is cost-effective, and we provide you some specification sheets you may need, and details help you to make decisions better!
