Novastar VX600 is all-in-one controller that owns both functions of LED video processors and LED display controller. It has 6 Ethernet ports and can load up to 3.9 million pixel pitches with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively.
The special functions it support are various including fiber converter, Bypass working modes, video controller, output scaling, low latency, pixel-level brightness, chroma calibration and more.
In a word, this new-generation LED display controller is quite suitable for ultra-high LED screen with its large loading capacity and strong ability!
1. Product Link
2. Novastar VX600 Manual Download
3. What Is the Resolution of Novastar VX600?
4. Three Applications of VX600
4.1 Work as a video controller
4.2 Work in ByPass mode
4.3 Work as a fiber convert for long-distance transmission
5. Features
6. Appearance
6.1 Front Appearance
6.2 Back Appearance
7. Novastar VX600 Price
8. Conclusions
1. Product Link
Loading capacity 3,900,000 pixels Inputs: 1x 3G-SDI, 1x DVI, 2x HDMI 1.3 Outputs: 1x HDMI 1.3, 6x Ethernet, 2x optical (optional) Supports 2x PIP Internal scaling function and Image Mosaic support Promotion Price: $999 Buy Now
Novastar VX600
Description
Inputs and Outputs
Specification
Additional Information
2. Novastar VX600 Manual Download
VX600 All-in-One Controller User Manual
VX600 All-in-One Controller Specifications
3. What Is the Resolution of Novastar VX600?
The loading capacity of Novastar VX600 is 3.9 million pixels. The max resolution of width is 10240 pixels and max resolution of height is 8192 pixels!
With its high loading capacity, it is suitable for large fine pixel pitch LED display for stage LED screen, advertising LED screen, events LED screen and so on.
4. Three Applications of VX600

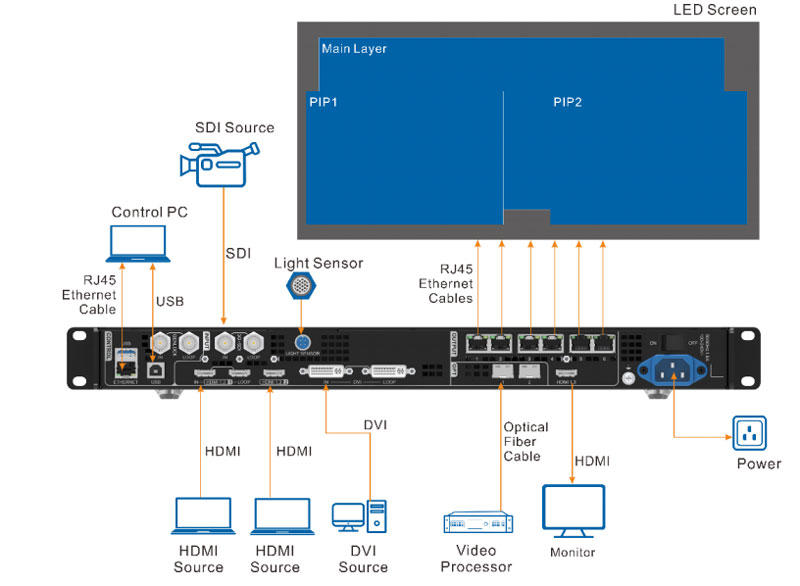

4.1 Work as a video controller:
The HDMI output connector is used for monitoring with a fixed output resolution of 1920×1080@60Hz.
Caution: Avoid manually adjusting the resolution of the HDMI 1.3 output connector through Advanced Settings > HDMI Output.

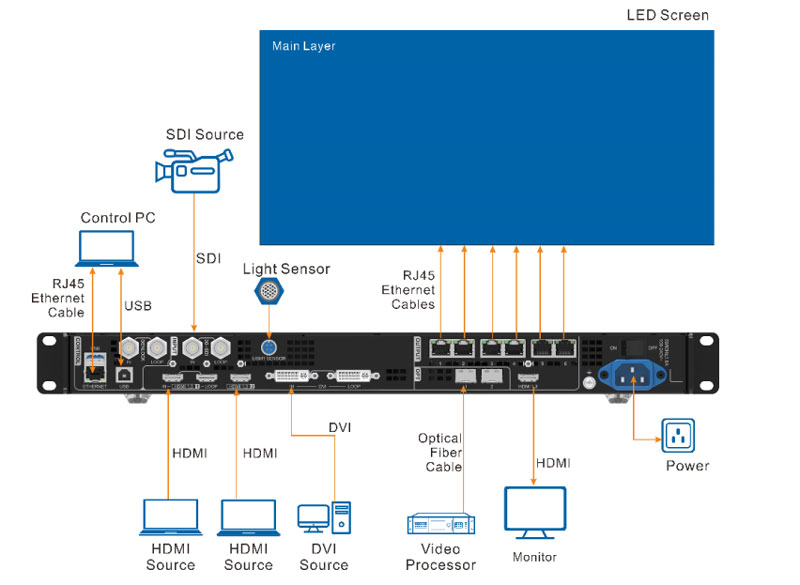

4.2 Work in ByPass mode:
The VX600 functions as a standalone LED display controller, ensuring that the output image remains unaltered and displayed pixel-to-pixel.
In this operational mode, only the main layer is accessible, while the two PIP (Picture-in-Picture) layers are unavailable.

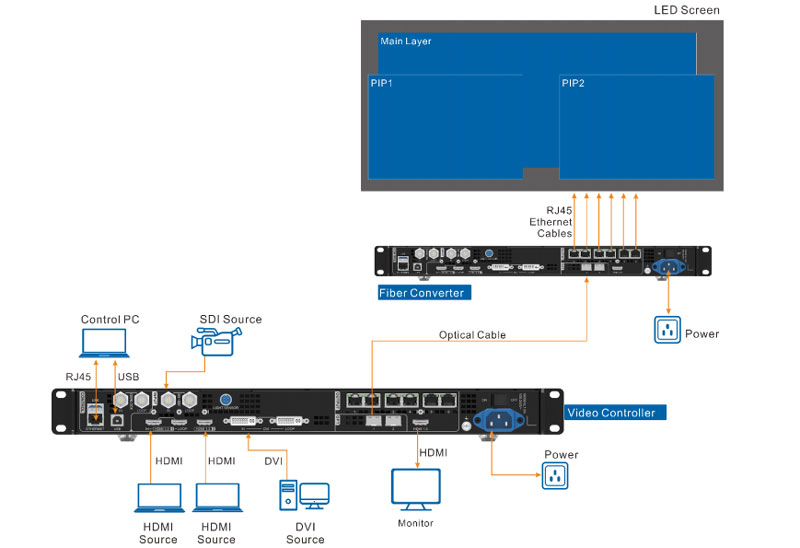

4.3 Work as a fiber convert for long-distance transmission
For long-distance transmission, you have the option to use either OPT 1 or OPT 2. If you choose to use OPT 2, remember to switch its working mode to Copy.
This setting ensures that the transmission operates smoothly and effectively.
5. Features
(1) Versatile Working Modes:
The VX600 offers three distinct working modes to cater to various needs. These modes include video controller, bypass mode, and fiber converter, ensuring flexibility and compatibility for different setups.
(2) Reliable Redundant System:
The VX600 is equipped with a stable and secure redundant system. This system supports redundancy for input sources, system configuration, Ethernet ports, and devices.
With these features, you can trust in the uninterrupted operation of your video system.
(3) Multi-layer Image Support:
The VX600 allows for the creation of dynamic visuals with its three-layer image capability. Each layer supports 4K resolution, providing free scaling options for individual layers. This enables precise control and customization of your display content.
(4) Immersive 4K High-definition Performance:
Enjoy stunning visual experiences with the VX600’s 4K high-definition capabilities. It supports input resolutions of 4K x 1K@60Hz, delivering exceptional image quality.
Additionally, the VX600 enables point-to-point display at 4K x 1K resolution, ensuring sharp and lifelike visuals.
(5) High Loading Capacity:
The VX600 boasts impressive loading capacity with 10 Ethernet output ports supporting up to 6.5 million pixels. This allows for the seamless handling of large-scale video displays and ensures smooth performance even with demanding visual content.
(6) Powerful Video Processing:
a. One-Click Full-Screen Display: With just a single click, the VX600 achieves full-screen display, providing a convenient and efficient user experience.
b. SuperView III Image Quality Processing: Leveraging advanced image quality processing technologies, the VX600 enables seamless output scaling without steps. This ensures optimal image clarity and fidelity.
c. Flexible Input Cropping: The VX600 offers the flexibility to crop input sources according to your preferences. This feature allows you to tailor the displayed content precisely as desired.
(7) Mosaic Input Source:
The VX600 supports mosaic sources that can be used for various purposes such as masking identities, concealing sensitive content, or safeguarding personal information. It allows you to create a mosaic source composed of several input connectors of the same type, providing effective privacy protection options.
(8) Easy Preset Management:
a. User-Defined Presets: The VX600 supports up to 10 user-defined presets, giving you the flexibility to save and recall different configurations effortlessly.
b. One-Button Preset Loading: Loading a preset is as simple as pressing one button, allowing for quick setup changes and enhancing operational efficiency.
(9) Ultra-Low Latency in Bypass Mode:
When operating in bypass mode with the low latency function enabled, the VX600 achieves super low latency with a delay reduction of up to 20 lines.
This ensures real-time response and minimizes any perceptible delay, ideal for applications where responsiveness is critical.
6. Appearance

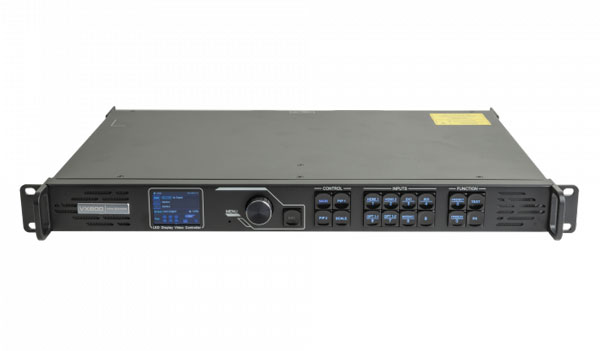

6.1 Front Appearance
On the front side of this box, there are LCD screen, ESC button, control area, input source buttons and shortcut function buttons.

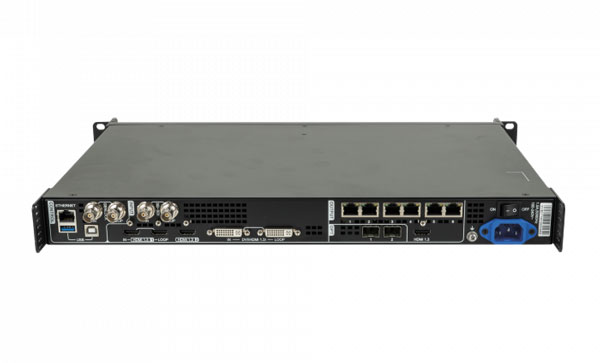

6.2 Back Appearance
On the back side, there are many connectors:
Input connectors: 3G-SDI, HDMI 1.3, DVI
Output connectors: Ethernet ports, HDMI 1.3
Optical fiber ports: OPT
Control connectors: Ethernet, USB, Genlock in-loop, light sensor
Input:
| HDMI 1.3 | 2 |
| Single Link DVI | 1 |
| 3G-SDI | 1 |
Output:
Main Outputs | 6 |
HDMI 1.3 (Loop) | 1 |
HDMI (PVW / MVR) | 1 |
Single Link DVI (Loop) | 1 |
3G-SDI (Loop) | 1 |
Control Connector:
2x HDMI 1.3 + LOOP In
2x DVI (HDMI 1.3) + LOOP In
1x 3G-SDI + LOOP In
6x Gigabit Ethernet outputs
1x 10G OPT port
1x HDMI 1.3 (monitor)
1x RJ45 Ethernet (PC)
1x USB Type A (cascading)
1x USB Type B (PC)
1x Genlock In + LOOP
7. Novastar VX600 Price
The Novastar VX600 price is around $999. We also have discounts offering to you: if the order is over $2500, you can get 5% discount; if the order price over $5000, you can enjoy 10% discount!
8. Conclusions
Novastar VX600 is a new generation all-in-one LED controller. We provide you with a favorable price at $999, and also discounts when the order price reach $2500!
If you want to equip a strong LED display controller with your LED screen, do not hesitate to contact us for this multi-functional professional LED display controller VX600!
