Gigabit Ethernet Standalone led receiving card Without Sending Card
Gigabit standalone led receiver realizes high refresh rate and high gray level without ts802d led sending card. Xingwei led receiver card support Gigabit LAN technique, a single led receiving card could support 1024 x 1024 for monochrome, double color led display module,fullcolor led display screen. Multiple network cards could work together to control a bigger led screen. Xingwei led is the first one who realizes high refresh rate and high graylevel with Gigabit LAN technique in the industry.
Remark: 32 bit Win XP or 32 bit Win 7 is recommended. For gigabit LAN: TP-LINK 3269 is recommended(The integrated gigabit LAN in thelaptop can work as well )
( Note: The driver of Gigabit LAN must be installed correctly to make the system work. )
After installing Gigabit LAN and the driver , connect with the receiver cards:
Open ledstudio—0ption—Software Setup–Input ‘Xingwei‘–Input password ‘168‘- -Setup Hardware parameter, tick the ‘Remember LAN. ‘
Connection Pictures as Below:
Graphic Card Requirements:
DVI-D output; Enough Graphic memory for source video;ATI and Nvidia graphic cards are fine. ATI graphic card is preferred.

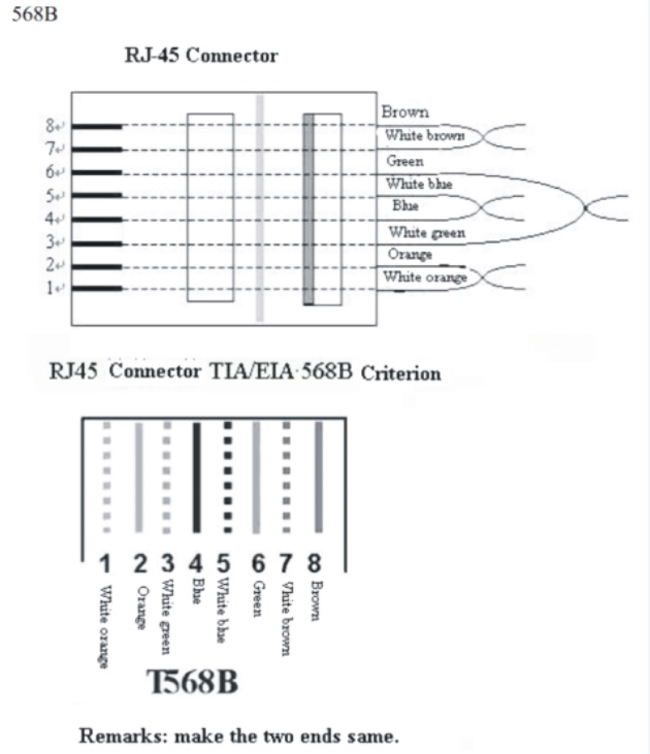

Make RJ45 cable:
The requirement and making method of Ethernet crossover cable: To make the cable ends under EIA/TIA 568B standard (That is: 1. white/orange stripe 2.orange solid 3.white/green stripe4.blue solid5.white/blue stripe6.green solid 7.white/brown stripe8.brown solid.) using straight-through cables on both ends.
By our experience, you’d better use a all-copper cables, for such cable, the resistance of each twisted pairover100 meters is about 13 ohms. In general the distance between sending card and receiver card is 140m to 170m.
The power requirement of Xingwei led sending card and led receiving card,ex902d multifuction card is 5V2A.
Relaying card, sc801 fiber converter and splitter have an internal 100V-220V to5V poweradapter1 so they can be used directly
