How to cascade LINSN TS802 LED Sending Card

How to cascade Xingwei ts802 led sending card to control the high resolution led display module

1.Hardware Requirements:

1). A dvi cable divide to two dvi connectors.

2). 2 pcs of Xingwei ds802/ts802 led sending card.

3). A 10 pin ribbon cable

2.LED Card Connection:

First, we have to connect the two led sending card by 10 pin ribbon cable.

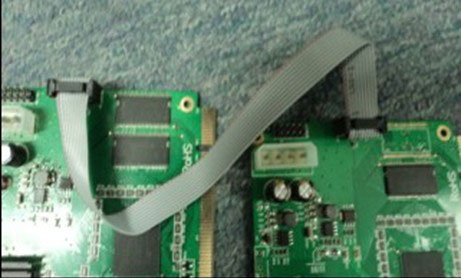

connect the two led sending card

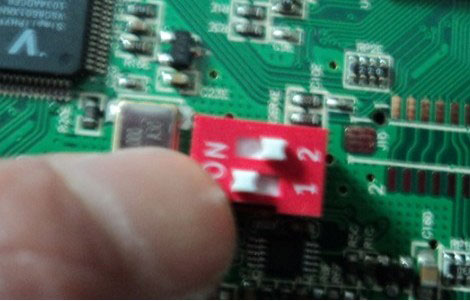

Second,TS802 has a RED Button, we need to set one of the led card to “1â€, another donot need to change

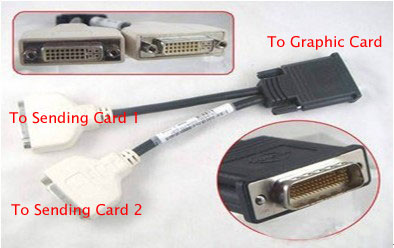

Third, install the two led sending card to the PC PCI interface, connect the DVI Graphic card with two led sending card by the DVI Cable.

3.LED Software Settings:

2 pcs of led sending card can control 1600×1200 dots most. there have 4 RJ45 signal outputs: 1U1D2U2D,RED Button “1†is 1U1D, another is:2U2D.

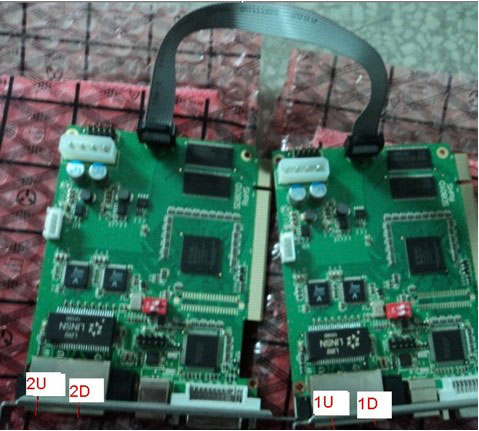

Led sending Card cascade connection Diagram

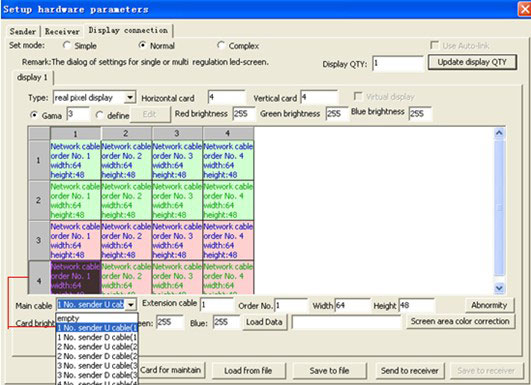

after,we can set the CON files according to the led display. send the CON files to the led sending card.

set the CON files

The Xingwei TS802 sender card cascade steps are over, if you have any questions, please contact us.
