Outer Power Supply For TS802 LED Sending Card

Outer Power Supply For TS802 LED Sending Card, How to use outer power for ts802 led sending card?

Normally,we use PCI interface to install the led sending card, or use the led sender Box. but sometimes, we do not have the enough PCI interface for LED Sending Card. so How can we use the outer box power supply for Xingwei led sending card?

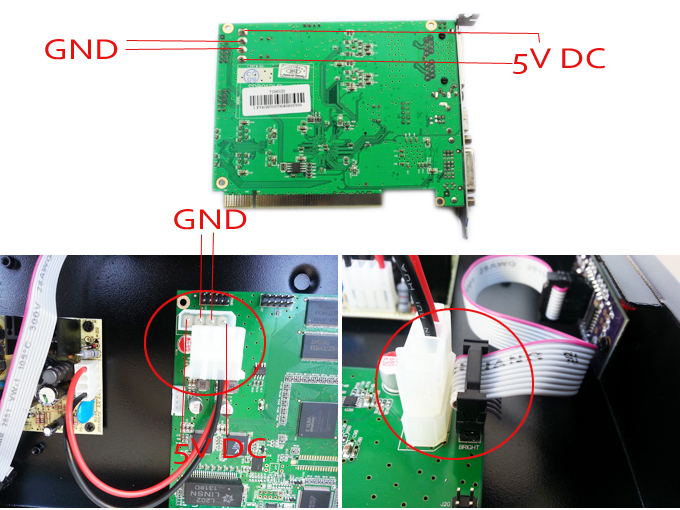

The Pictures shows you the 5V DC and GND interface for LED Sending Card. you can follow the pictures to connect the proper power supply for LED Sending Card.

Outer Power Supply For Xingwei TS802 LED Sending Card

Remark: rv901 receiving card use the same 5V DC Voltage, if you need help,please contact Xingwei to get more information.
