iMAX500
iMAX500 Series Rental LED Display
- 500*500mm LED Display Cabinet
- P2.604mm, P2.976mm, P3.91mm, P4.81mm
- Indoor or Outdoor is Available
- Front or Rear Dual Maintanance
- 3 Years Warranty and 5% Spare Part
iMAX500 Series Rental LED Screen
Using the latest black technology, Xingwei iMax Series LED display features Power Supply Dual Backup Design, The LED screen Never Stop Working.
iMAX500 Series Rental LED Screen

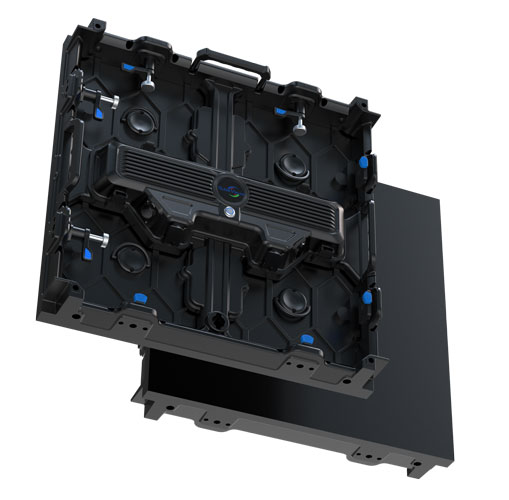

Xingwei iMAX 500 Series Indoor & outdoor led display is Xingwei latest rental LED display product with unique design and feature. the back cover is Removable the display visual effect is better, the image and video is more clean with uniformity color.
INSPIRATION
As a professional LED display manufacturer, Xingwei iMAX 500 Series LED display is inspired by the unity of design and elegance with the features of Texture, Nimble, Professional, Flat and Handy.
MORE MUTURE

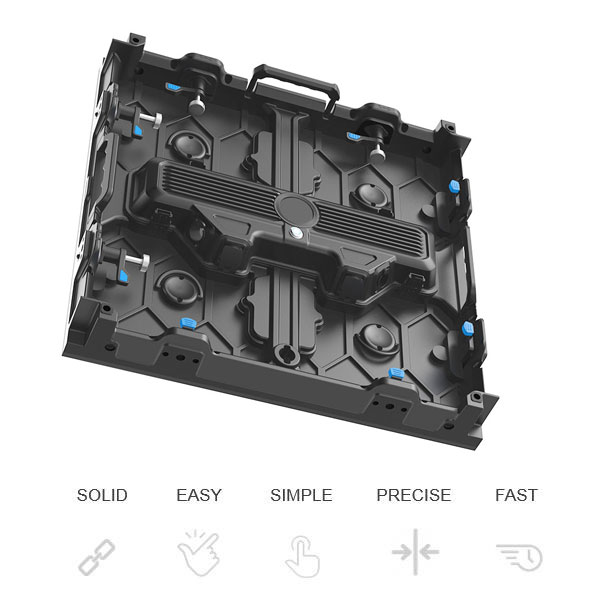

Xingwei iMAX500 Series LED display is a more mature and more stable LED display product with the features of solid, easy, simple, precise, fast.the product can meet various requirements of indoor & outdoor applications.
LIGHTWEIGHT AND THIN

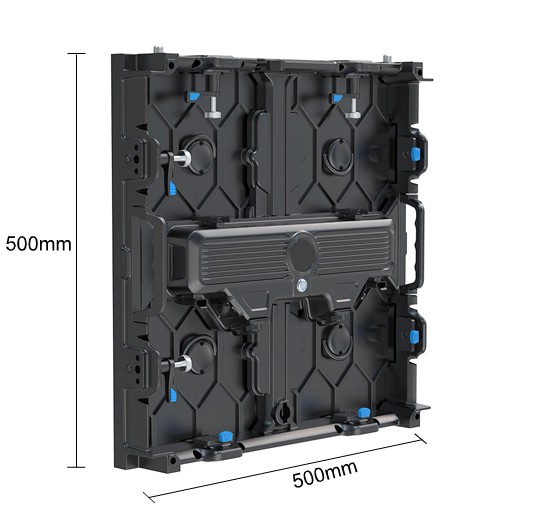

Xingwei iMAX500 Series LED display cabinet is portable and good stability with weight of 8.5kg/Cabinet, the cabinet thickness is only 80mm. the cabinet size is 500×500mm. the feature of lightweight make the LED display is easy to carry, transport and install,saving good amount of money on your labor costs.
PERFECT STRUCTURE

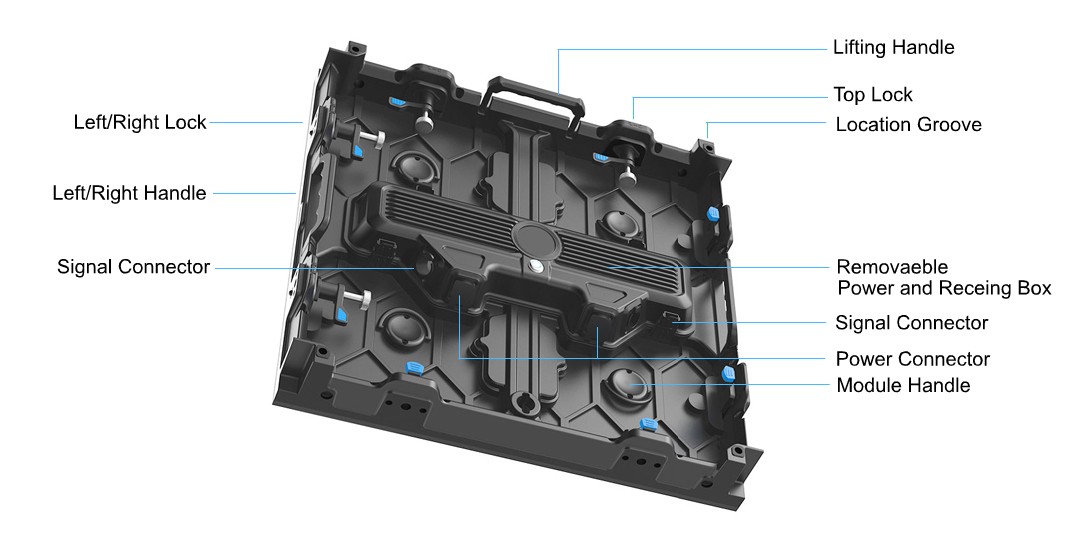

Xingwei iMAX 500 Series LED display with perfect cabinet from lifting handle, fast locks, panel handle, removable power & receiving box,hidden test button, stack installation joggle, power & signal indicator, power connector, signal connector.
QUICK REMOVABLE

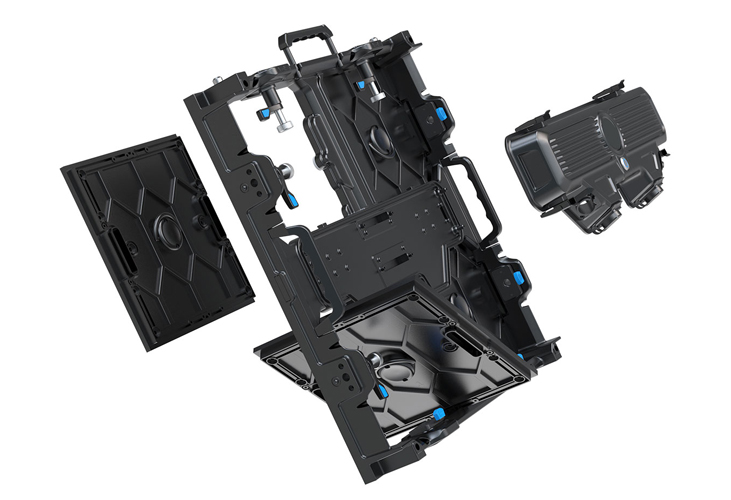

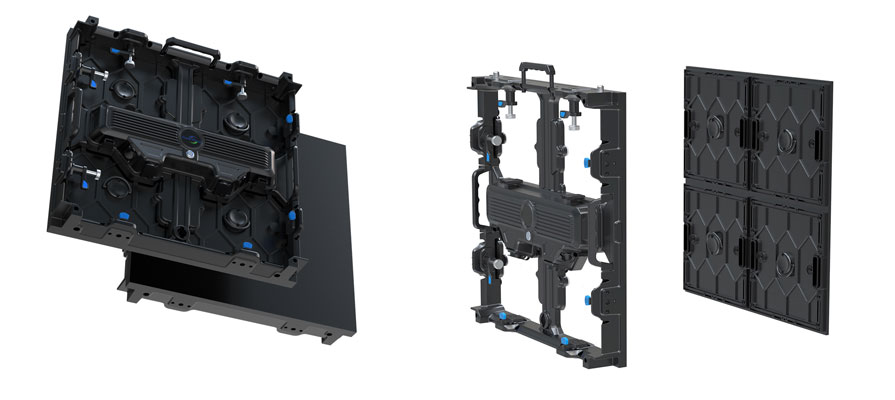

Xingwei iMAX 500 Series LED Screen is designed with quick removable back cover for Power & Receiving box & hub board & connectors. the procuct is for different pixel pitches of indoor & outdoor installation. In addition, the cabinet is designed with frontal and rear service available.

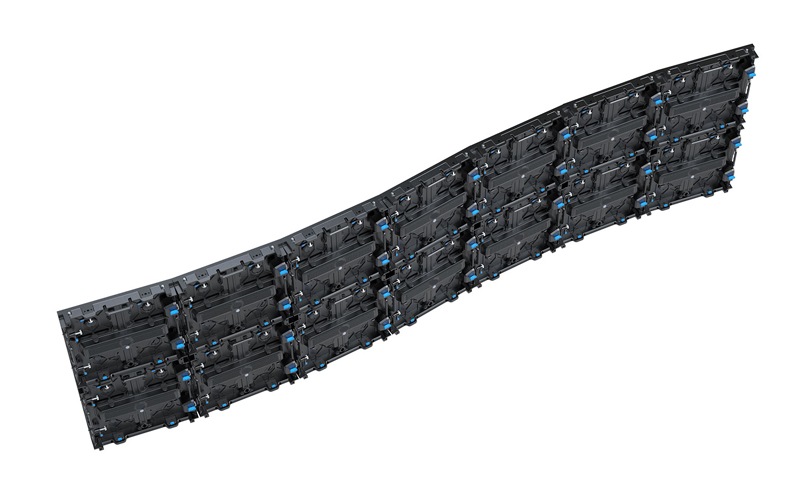

Support Curved Installation
In order to meet the various aspects of the LED screen field. iMax series led display design for Curved Installation.
Curved with every 2.5° between -10°and 10°, which can make convex and concave.
HIGH QUALITY MODULE
Xingwei iMAX 500 Series LED Display use Mask with screws. Convex surface No deformation. Strengthen edges. the LED display is High contrast ratio, High uniformity, High flatness and High alignment. Ultra viewing angle. Anti-collision protection for LEDs.
OPTIMIZED PCB BOARD DESIGN
Xingwei iMAX 500 Series LED sign adopts Optimized PCB board design with 4 layers PCB. There are Calibration-memo in PCB board.Perfect matched with LED display control system. Perfect heat sinking CE / EMC certified optional.the LED display installation is also very convenient for single person. fast and quickly.

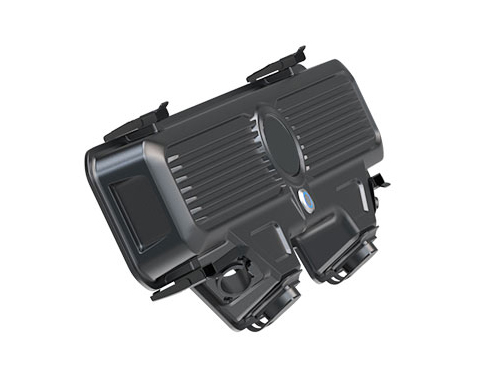

THE CONTROL BOX
Adopts Optimized Control Box with Quick removable without any tools optional. Hidden testing button avoid false touch.Universe hub board for different pixel pitches. No cable connection for power supply & hub board.Optimized heat sinking design and Good quality connector pins.
Specifications
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
|---|---|---|---|---|
| Pixels per cabinet | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) | 104×104 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |||
| Brightness | ≥1000 nits; | |||
| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Refresh rate | 960-1,920Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V / 50-60Hz | |||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||
| Dimensions | 500 x 500 x 80 mm (WxHxD)/ 19.6 x 19.6 x 3.14 inch (WxHxD) | |||
| Weight / Tile | 8.5 kg / 16.53 lbs | |||
| Serviceability | Front and back service | |||
| Certifications | CE, UL, FCC class A, RoHS | |||
| Warranty | 3 years standard product warranty | |||
Tech Support
Xingwei LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
