MA960-D Series LED Screen
Dual Service Energy Saving LED Display-50% Power & Cost Saving
- 960×960mm Standard Cabinet Size
- SMD 3in1 LED Technology
- Frontal or Rear Service Design for Easy Installation
- CE, RoHS, FCC Approved
- 3 Years Warranty and 5% Spare Part

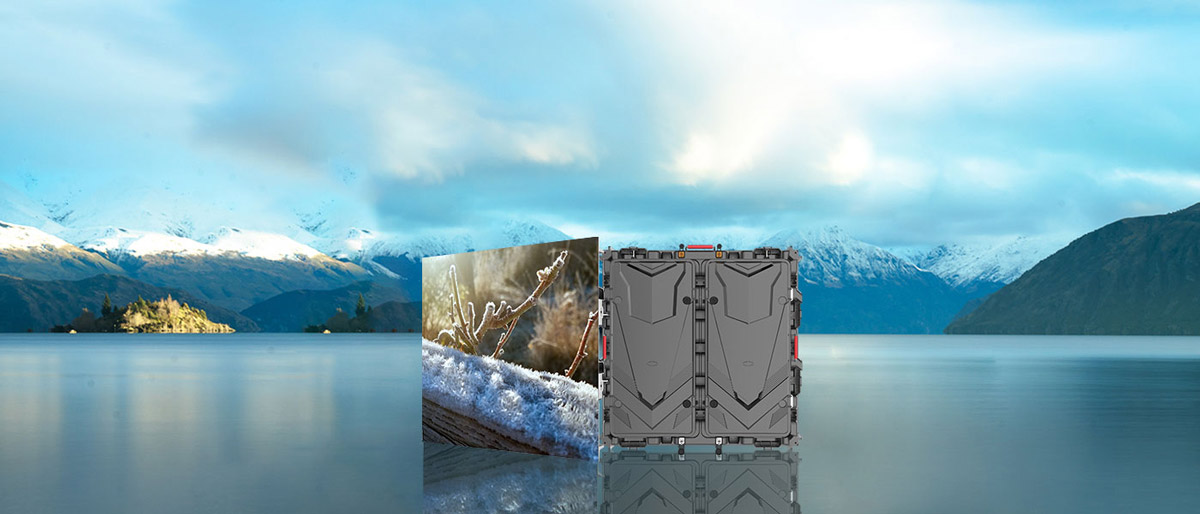

Outdoor Dual Service 960x960mm Energy Saving LED Display Screen
This cabinet is the latest outdoor energy-saving LED display screen with 960X960mm size and 320x320mm frontal & rear service LED module with pixel pitches ranging from P4mm to P10mm. Ultra-low heat and excellent performance can improve energy efficiency and environmental protection
Energy Saving >50% Design
1. Using R / GB to separate the power supply, and the current is accurately distributed to the lamp beads, reducing power consumption.
2. Lower the temperature, no need for air condition, save cost.
3. Reduce power consumption, save electricity and energy, and reduce costs greatly.
4. Uniform heat distribution, constant color temperature, no color deviation, no color block, and good consistency.
5. The screen cabinet has low heat, which is about 16 ℃ lower than the common LED display product.

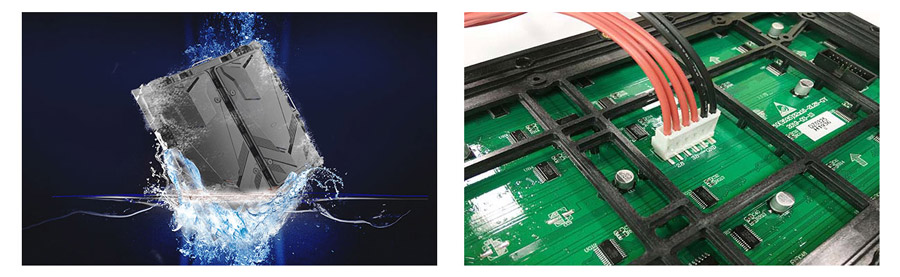

Energy saving is power supplied separately with R and GB, which means that the voltage and current are accurately distributed to the red, green, and blue lamp beads.
The current passes through the lamp beads and then to the negative electrode of the IC.
The separate power supply scheme effectively reduces power consumption and greatly reduces the heat generated during the operation of the display screen.
960X960mm Standard Perfect Structure
Energy-saving LED display is made with hard magnesium alloy LED cabinet with fashion design, and top-class product structure for better heat dissipation and lower heat.
The heat of the display is uniform, the color temperature is constant, and no color block at all.
And the picture effect is excellent. Energy consumption is maximized without reducing LED display brightness and contrast.
Standard Size LED Module - Dual Mode Service
960*960mm Standard cabinet design with 320*320mm LED module. The LED display module size is 320x320mm in dimension with frontal & rear service, ultra-low heat, and excellent performance in improving energy efficiency and environment protection.
Less Weight Cabinet Design
Lighter LED display cabinet with quick locks, and delicate structure for easy installation without gaps.
Specification
| Pixel Pitch | P4mm | P5.33mm | P6.67mm-ES | P8mm-ES | P10mm-ES |
| LED | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Module size | 320*320mm | ||||
| Module resolution (dot) | 80*80 | 60*60 | 48*48 | 40*40 | 32*32 |
| Density | 62500 | 35156 | 22477 | 15625 | 10000 |
| LED Cabinet Size | 960*960mm (Customized Size Available) | ||||
| Cabinet Weight | 26kg/Magnesium Alloy LED Cabinet | ||||
| Material | Magnesium Alloy/Steel/Aluminum | ||||
| Brightness | >5000 nits | >5000 nits | >5500 nits | >5500 nits | >5500 nits |
| Avg power consumption | 380W | 360W | 280W | 240W | 280W |
| Max power consumption | 950W | 900W | 650W | 600W | 650W |
| Best Viewing Distance | 4-40m | 5-55m | 6-66m | 8-80m | 10-100m |
| Fresh frequency | 1920-3840HZ | ||||
| Protective grade | Waterproof IP65 Front and Back | ||||
| Maintain Way | Frontal & Rear Service-Dual Mode | ||||
| Scan Method | 1/16S | 1/7S | 1/6S | 1/5S | 1/2S |
| Certificates | CE, RoHS, FCC | ||||
| Warranty | 3 Years Warranty | ||||
Tech Support
Xingwei LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
