OF800 SERIES LED DISPLAY

New Outdoor Frontal Service Energy-saving LED Screen

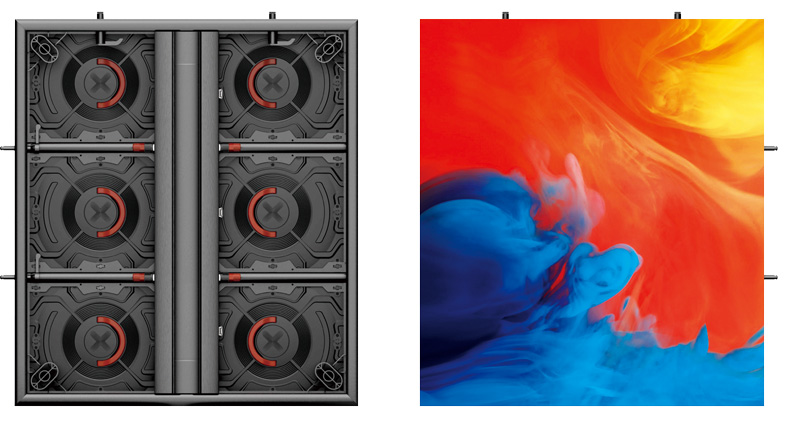

Xingwei OF800 Outdoor frontal service LED display is Xingwei the latest outdoor fixed LED display with frontal service. Unique cabinet design with 800*900mm / 800*1200mm dimensions, and unique panel design with 400*300mm size. Ultra-low heat, energy saving, and excellent visual experience.


Outdoor Frontal Service Energy Saving LED Display

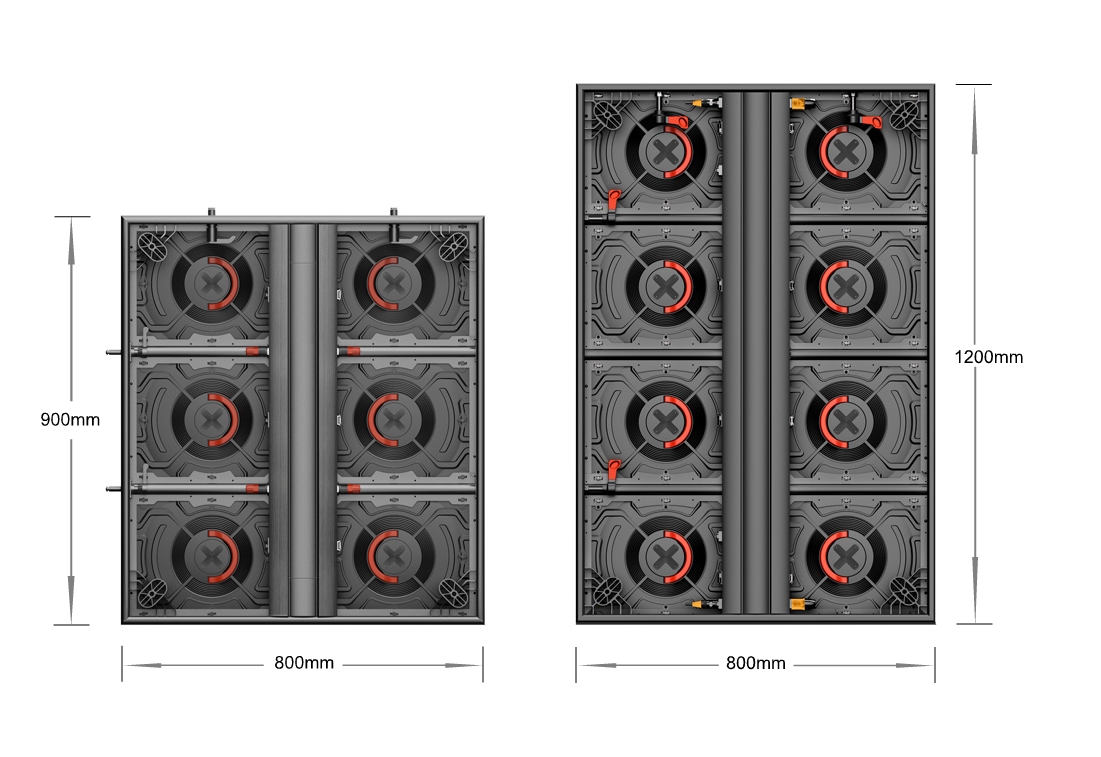

Two Sizes Available


Xingwei OF800 outdoor frontal service LED screen is designed in two sizes: 800*900mm and 800*1200mm are optional. Ultralight cabinet with 22kg for 800*900mm cabinet and 29kg for 800*1200mm cabinet. Ultra-thin cabinet with 98mm thickness.


Outdoor Frontal Service Energy Saving LED Display

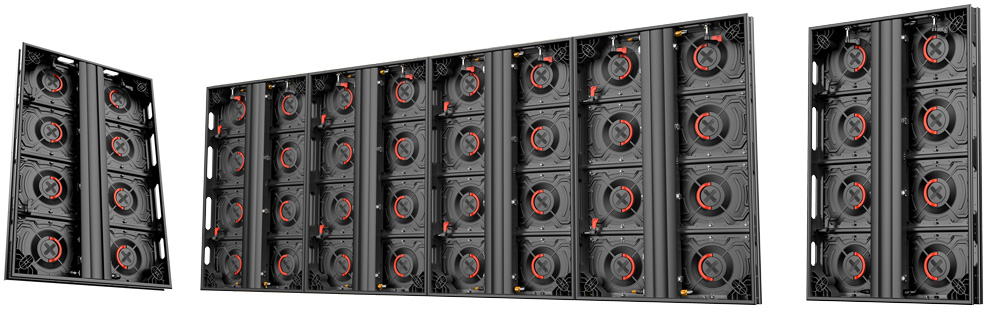

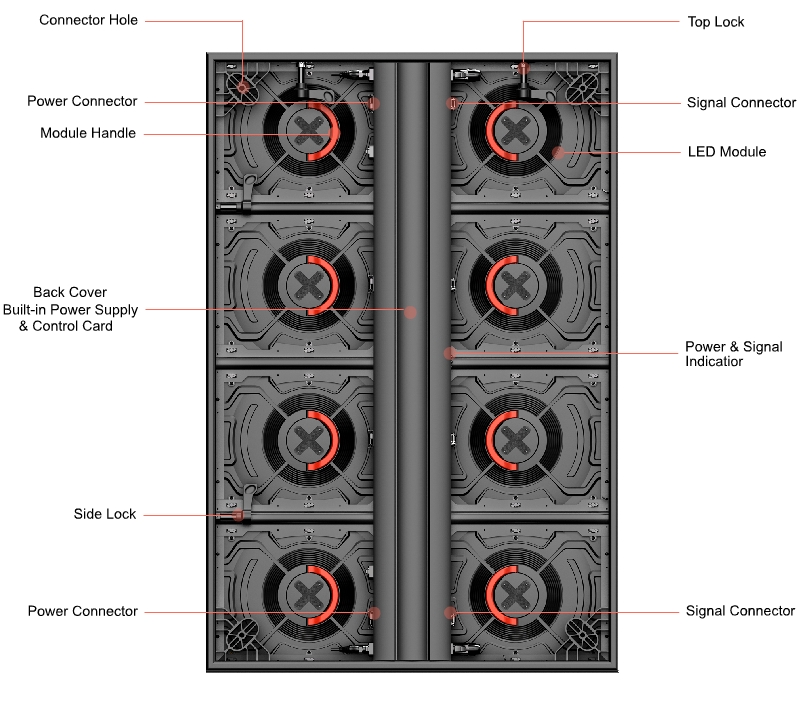

Perfect Cabinet Design


OF800 outdoor frontal service LED screen adopts top-class design and industry-leading ideas. The cabinet is beautiful and the operation is user-friendly. The overall black color style with red module handle makes the entire LED display elegant and noble.


Outdoor Frontal Service Energy Saving LED Display

Frontal and Rear Double Service Design


Xingwei OF800 outdoor 800*900mm/800*1200mm LED display is designed with frontal access feature.
The LED panel can be assembled and disassembled in a few seconds with a special tool.

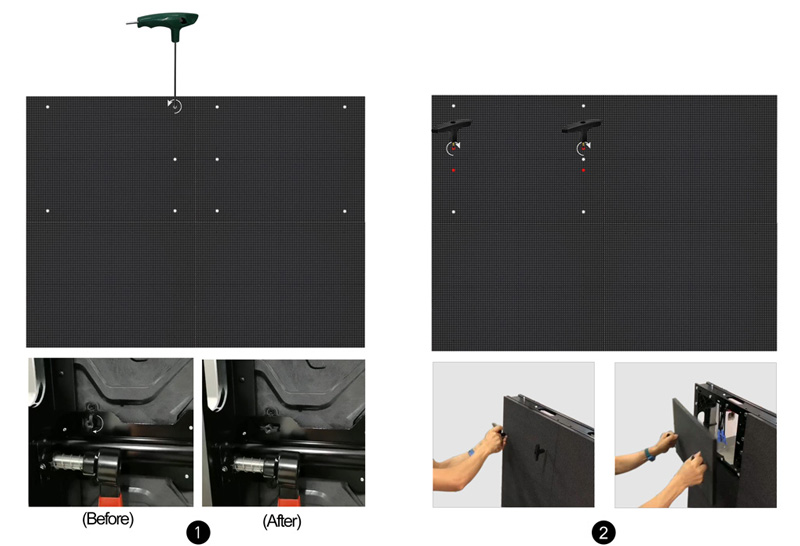

Step 1: Insert the module removal tool into the corresponding white holes on the front of the module (total 5).
Rotate 90 degrees counterclockwise to unlock the module lock.
Step 2: Insert the two module handles into the corresponding red holes (total 4);
one on the left and one on the right, rotate clockwise, and fix it. Then pull to remove the module.


Outdoor Frontal Service Energy Saving LED Display

Unique Panel Energy Saving Design


OF800 Outdoor frontal service LED sign adopts 400*300mm LED module panel. New design technology and excellent display performance. Hidden handle design and unique fix holes for better frontal service.


Outdoor Frontal Service Energy Saving LED Display

Seamless Splicing


Seamless splicing design with fast locks,
The LED display has no gaps, and the LED screen has ultra-high flatness.


Outdoor Frontal Service Energy Saving LED Display

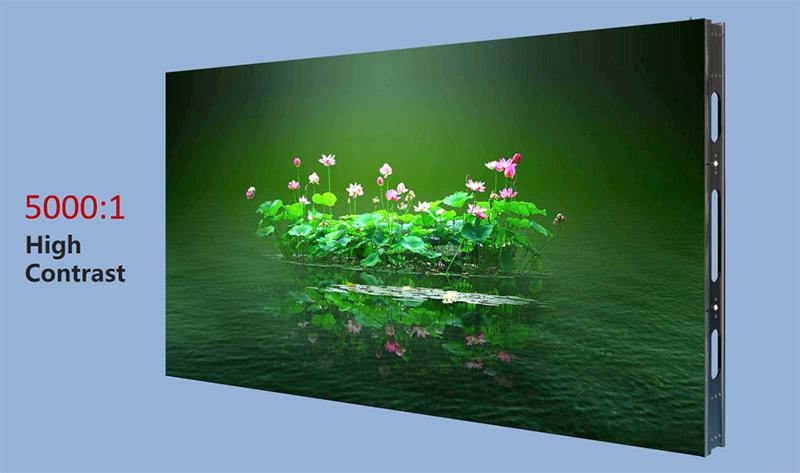

High Performance Visual Display


OF800 outdoor frontal service LED video wall is high quality and has high brightness for outdoor applications.
The visual quality is excellent and stable with ultra-high energy-saving ability.


Outdoor Frontal Service Energy Saving LED Display

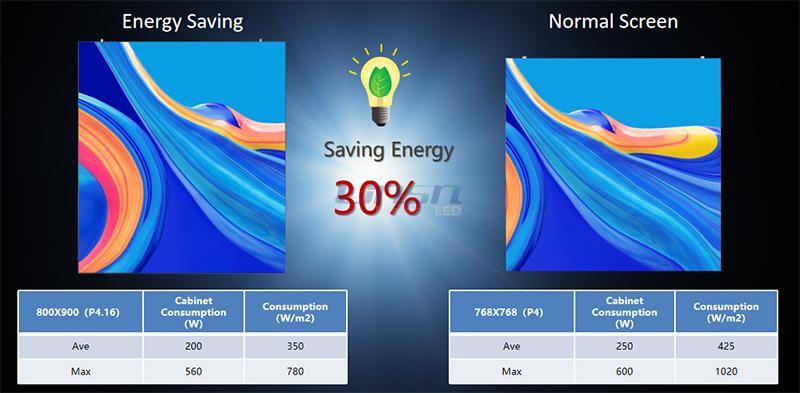

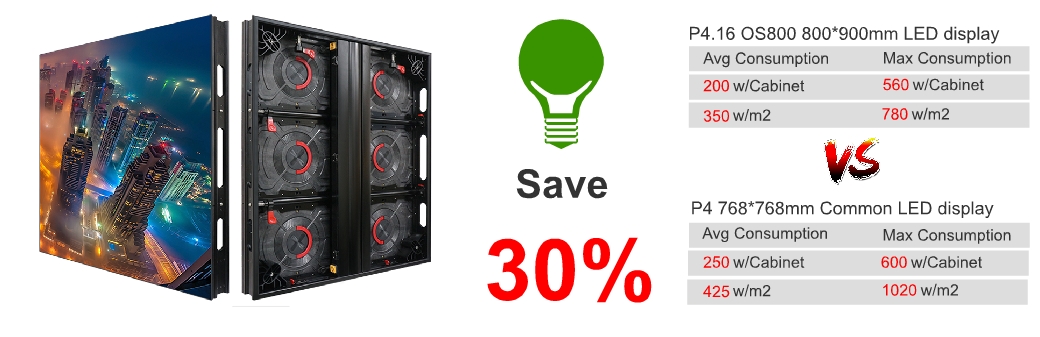

Energy Saving


OF800 outdoor frontal service LED video wall has high efficiency and energy-saving ability.
Excellent energy-saving performance is up to 30% compared with common LED displays.


Outdoor Frontal Service Energy Saving LED Display

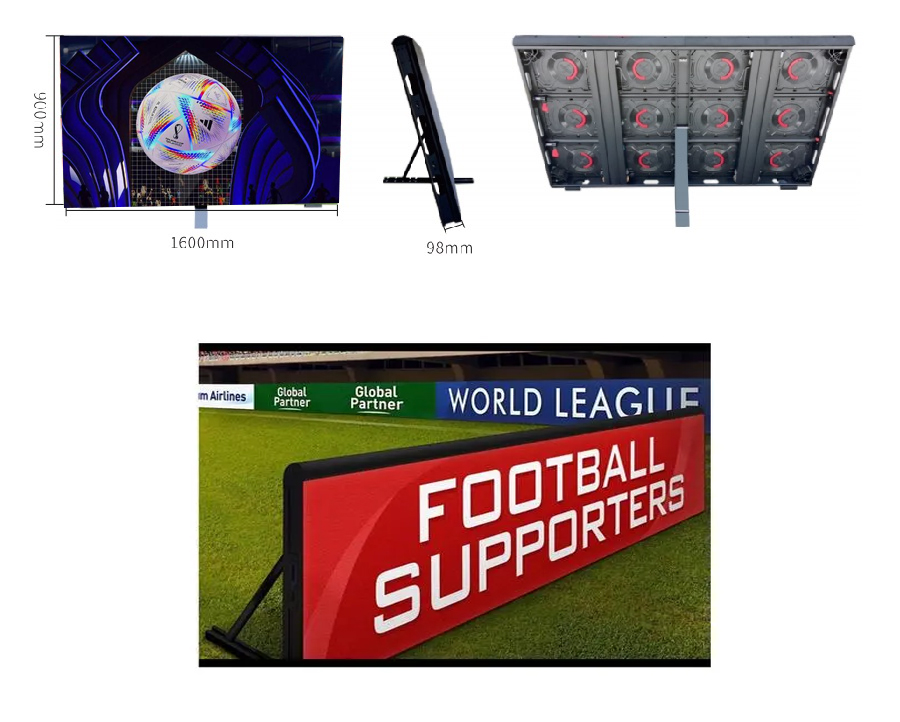

Multi Function

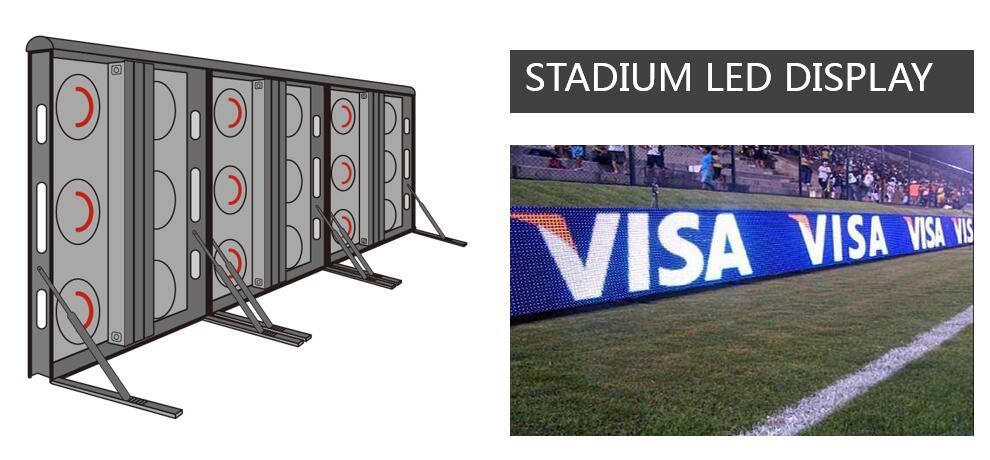

With soft LED module mask and adjustable back brackets, the OF800 outdoor frontal service LED screen
can be used as sports LED display and stadium perimeter LED display.


Outdoor Frontal Service Energy Saving LED Display

Cabinet can be customized
Soft mask and cushion protect the althlete from hurting
Handles, fast lock, wheels help quick installation
IP65 for both front and rear sides
Module waterproof, joint semless splicing, good display effect.
High brightness, high resolution and stable performance
Brightness is more than 6500cd, the performance is still visualble under strong light
Support front and rear maintenance, maintenance way is easy and quick
Remote control the display (Power on/off, Public content, adjust brightness)

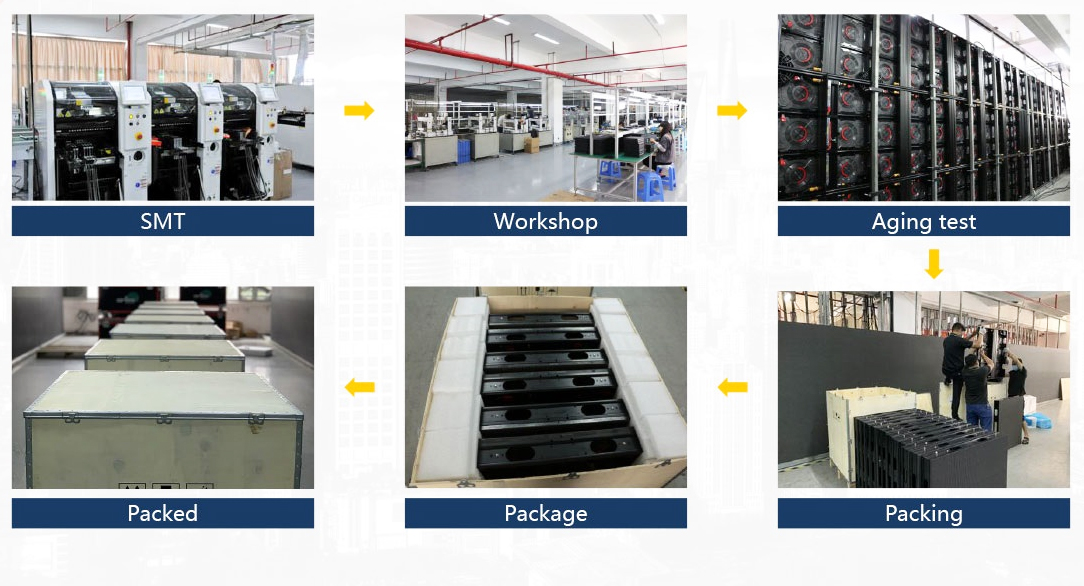

Pruduction process





Tech Support

Xingwei LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
