OF960 SERIES LED DISPLAY
- 320*320mm Panel Design
- SMD 3 in 1 LED Encapsulation Technology
- Dual Service with Frontal and Real Maintenance
- Die-casting Aluminum Module
- CE, Rohs Approved
- 3 Year Warranty and 5% Spare Part

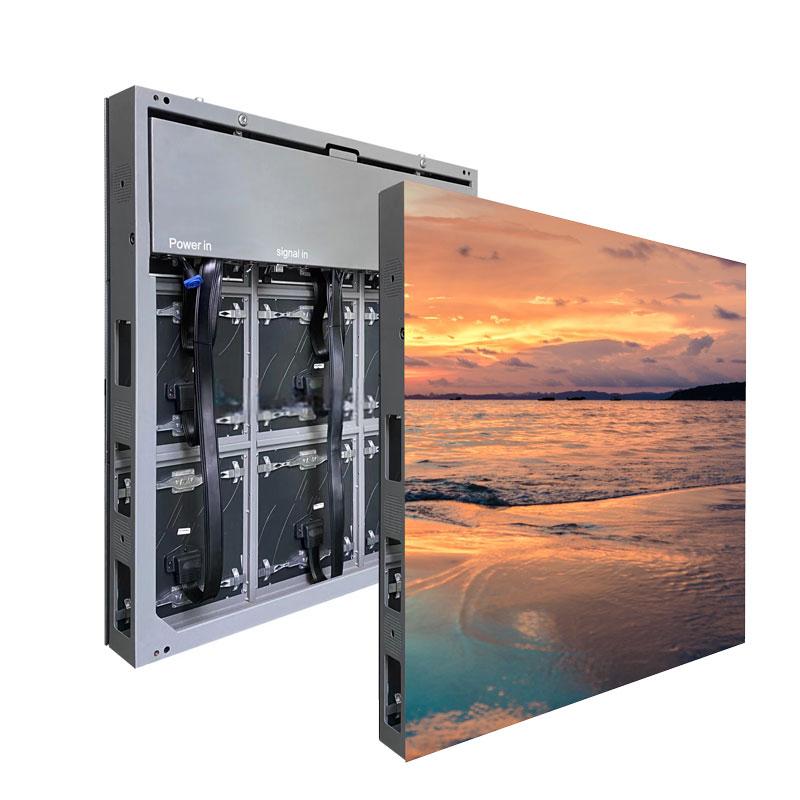

Ultra HD Visual Effect
With the implementation of single-point color correction technology, a true depiction of colors is achieved, accompanied by a smaller pixel pitch. As a result, the world unfolds before your very eyes.

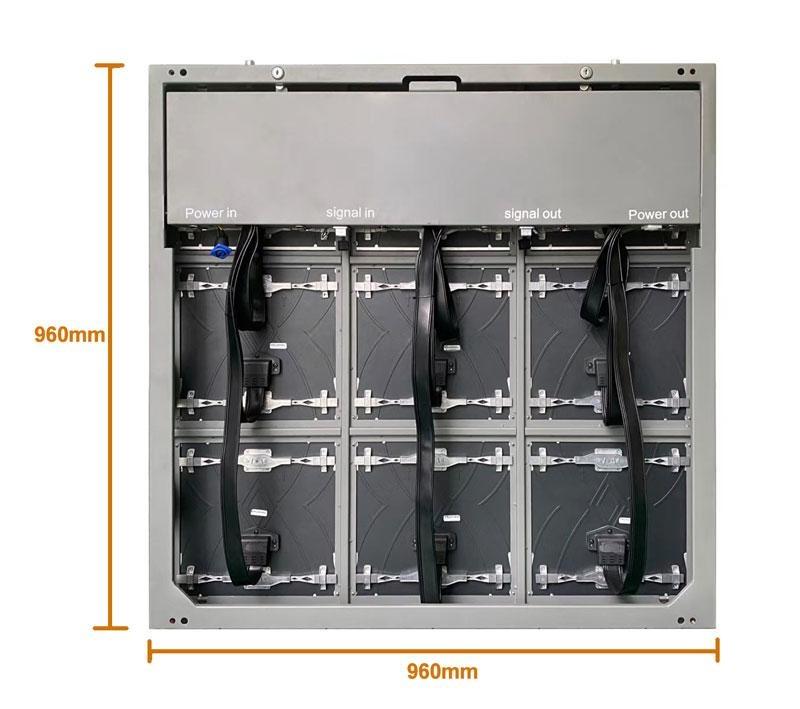

960*960mm
Standard size LED display with 960*960mm, suitable for 320*320mm LED display module.

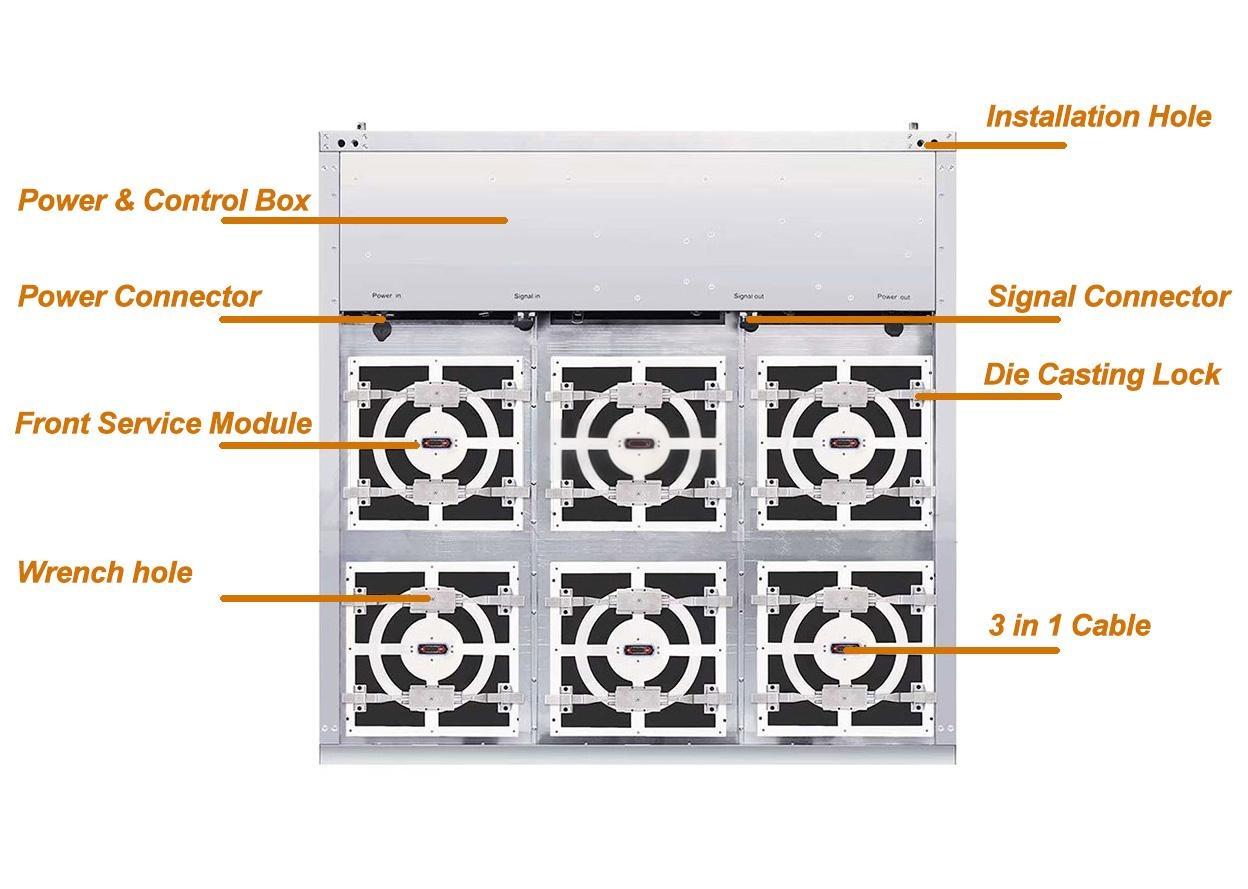

Perfect Cabinet Design
Unique cabinet design with power & control box, installation hole, power connector, signal connector, front service module, die-casting lock, wr`ench hole, and 3 in 1 cable.
Die Casting Module
The LED display module is made with high-quality die-casting material which ensure the LED display is stable in outdoor environments. Die casting shell makes better cooling, die casting lock makes longer durability.

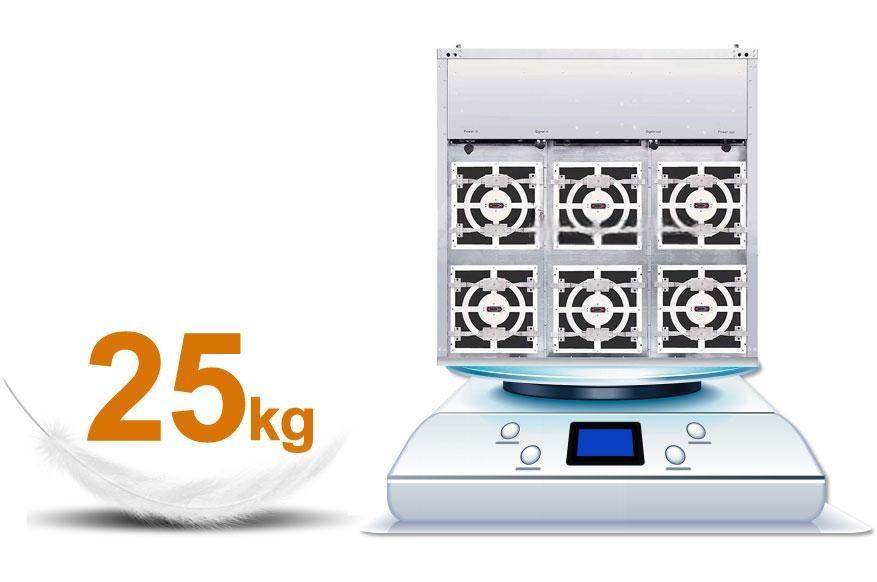

Ultra Lightweight
Experience the perfect visual journey from any angle with our ultralightweight design, weighing only 25kg. Our high-precision aluminum cabinet frame ensures seamless splicing of images and videos, delivering the impeccable display you desire.

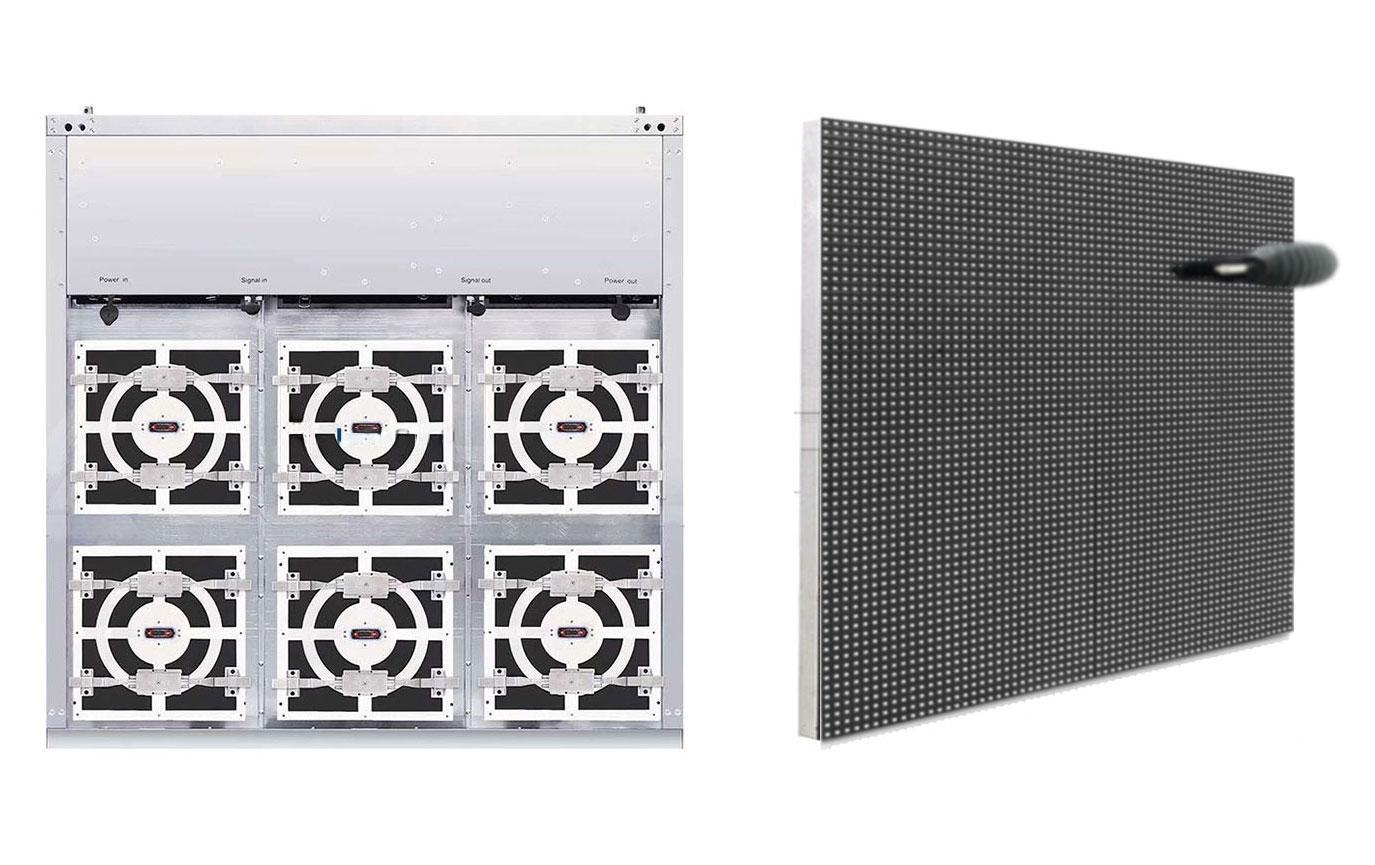

Dual Service Design
Our LED panel is designed with dual service design, allowing for frontal and rear maintenance. This design facilitates easy installation of LED panels, providing convenience and flexibility.

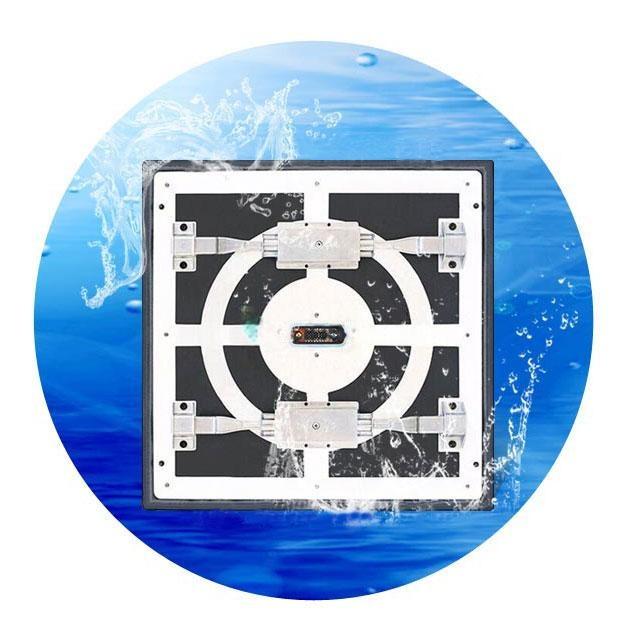

IP67 Waterproof Level
The fully sealed design provides ultra-high water resistance, ensuring that the LED display can adapt to a variety of stringent environments.

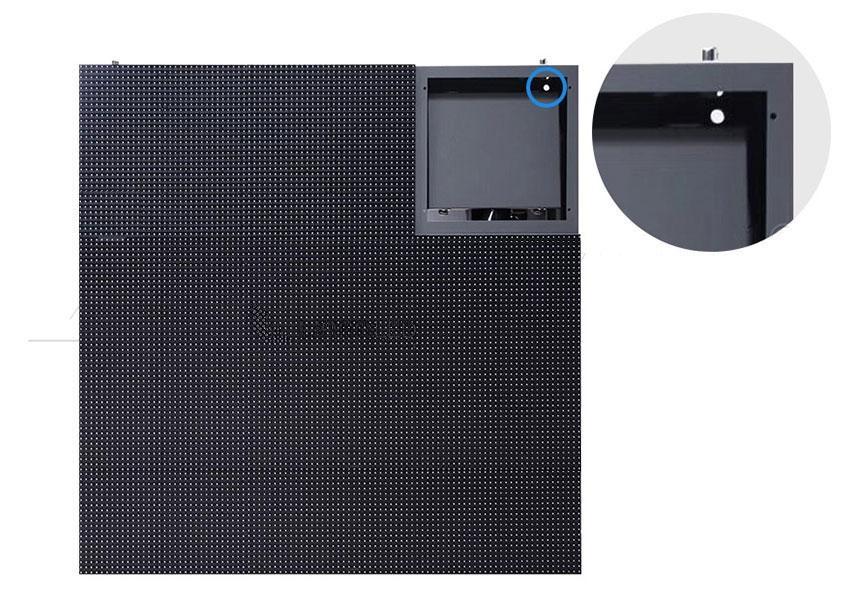

Front Installation
Front installation, the LED display cabinets can be installed in front and mounted directly on the LED Video wall.
Specification
| Model | P5.33 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 5.33 | 6.67 | 8 | 10 |
| Pixel Matrix Per Sq.m | 35200 | 22477 | 15625 | 10000 |
| Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Brightness (nits) | 5500 | 6000 | 5500 | 6500 |
| Scan | 44567 | 44567 | 44566 | 44563 |
| Module Dimension | 320x320mm / 1.05×1.05ft | 320x320mm / 1.05×1.05ft | 320x320mm / 1.05×1.05ft | 320x320mm / 1.05×1.05ft |
| Cabinet Dimension | 960x960mm / 3.15×3.15ft | 960x960mm / 3.15×3.15ft | 960x960mm / 3.15×3.15ft | 960x960mm / 3.15×3.15ft |
| Cabinet Resolution | 180×180 | 144×144 | 120×120 | 96×96 |
| Cabinet Material | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum |
| Cabinet Weight | 32kg | 32kg | 32kg | 32kg |
| Power Con. (Max / Avg) | 561 / 196w/sq.m | 690 / 230 w/sq.m | 690 / 230w/sq.m | 690 / 230 w/sq.m |
| Service Access | Front & Back | Front & Back | Front & Back | Front & Back |
| Refresh Rate (HZ) | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Grey Scale (bit) | 16 | 16 | 16 | 16 |
| Viewing Angle (H/V) | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 |
| IP Rate | IP67 | IP67 | IP67 | IP67 |
| Operation Temperature | -20° ~ 60° | -20° ~ 60° | -20° ~ 60° | -20° ~ 60° |
| Input Voltage (AC) | 100V ~ 240V | 100V ~ 240V | 100V ~ 240V | 100V ~ 240V |
Tech Support
Xingwei LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
