IP68 P6.67mm Waterproof Front Service LED Display Module
P6.67mm
- Pixel Pitch: 6.67mm
- Module Size: 320*320mm
- Module Resolution: 48*48
- Front & Rear Service
- CE,RoHS,FCC Approved
- 2 Years Warranty
Aluminum Case Waterproof Dual Mode Service P6.67mm IP68 Outdoor LED Display module High Waterproof Dual Maintain LED screen panel with 320mmx320mm and 48x48dots.
Remark:
1. P6.67mm IP68 LED Display Module Including the Data & Power Cables, Waterproof Rubber Ring.
2. Epistar LEDs, 2 Years Warranty, Ship in 24 hours,Free Online Support.
3. LED Module Can Work With Xingwei,Novastar,Colorlight,Xixun LED Conrol Card Etc.
P6.67mm IP68 Waterproof LED Display Module Parameters:
| Items | Parameter |
|---|---|
| Product Model | P6.67mm Dual Service LED Module |
| Module size | 320x320mm |
| resolution ratio | 48*48dots |
| Pixel pitch | 6.67 mm |
| Pixel density | 22477 dots/sqm |
| Pixel configuration | SMD 3 in 1 |
| Driving method | Constant Current Driving,1/6 scan |
| Working voltage | DC5V |
| Module maximum power consumption | 50W/Pc |
| Led Lamps | SMD3535 |
| Waterproof | IP68 |
| PCB | Aluminum Bottom Shell |
Electrical Parameters |
|
| Frame rate | 60Hz/Second |
| Refresh rate | ≥1920HZ |
| Brightness in White Color (cd/m2): | 6000-6500 CD/m2 |
| Contrast ratio | ≥4000:1 |
| Life time | ≥100000 hours |
| Operating humidity | 10%-90%RH |
| Average power consumption | ≤400W/m2 |
| Viewing Angle | 120(Horizontal),120(Vertical) |
| Best Viewing Distance | 6.67m-67m |
| Input Voltage | 110V/60HZ-220V/50Hz Switchable |

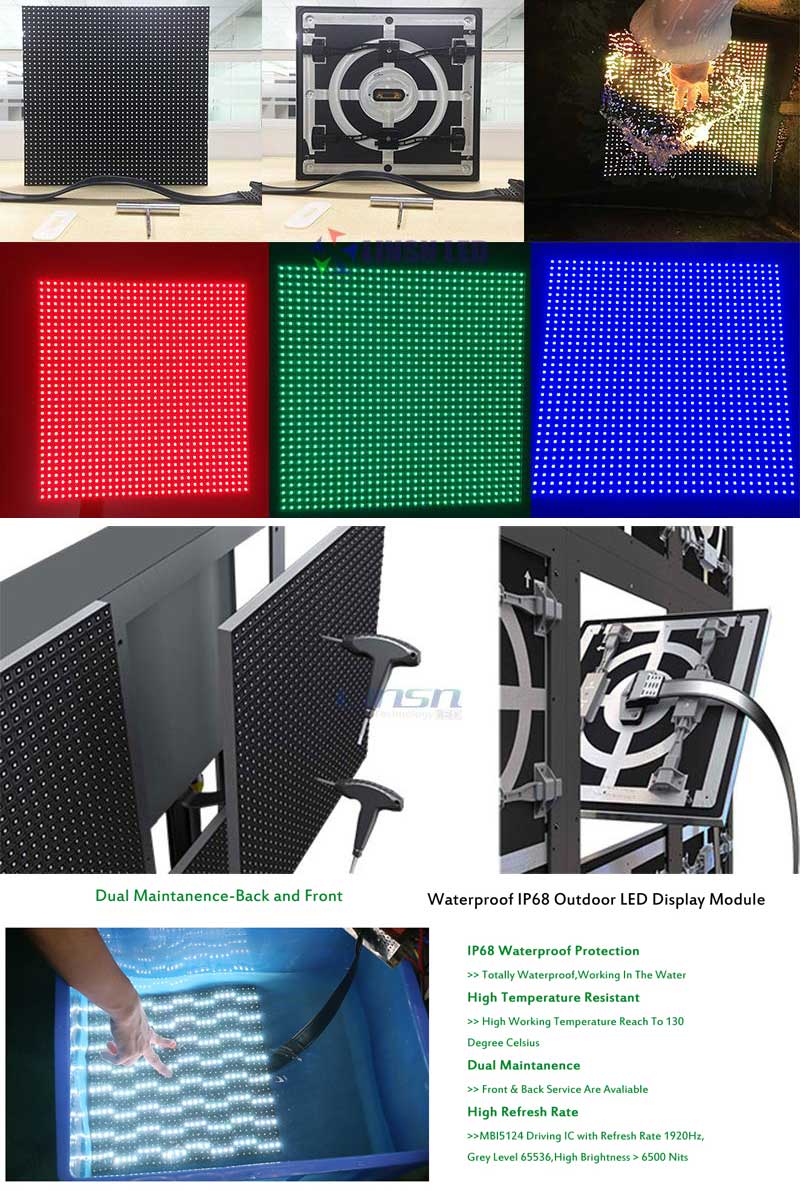

Outdoor P6.67mm Frontal and Rear Service LED Screen Module
Latest P6.67mm Waterproof LED Module with Aluminum Bottom Case,EMC Standard Design.Lower Consumption and High Brightne
To achieve the best visual performance of IP67 IP68 Waterproof LED Display Module,we use the best Driving IC,such as MBI5124,MY9868 with high refresh rate,high grey level with latest technology.
IP68 LED Display Module with good design for weather protection.high reliability and contrast,wide view angle and good consistency which meet the need of high refresh rate,high gray scale and keep natural color at one time with best color uniformity.
LED Display Cabinet with best design for easy connnection and easy assembling, aslo the Monitoring Function to check the working status of LED Display Parts. Customer Logo is avaliable for Your Brand Building.
Where there is no space behind of led screen,you can choose our waterproof ip67 front service led module,the cabinet is still with back doors,but that is only for easy assembly in Xingwei led factory.when the ip67 led display installed,it is no longer necessary to open the back doors,becasuse you can take out the ip68 led display module from the front side.
Tech Support
Xingwei LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
