EV960 EX SERIES LED DISPLAY
High Quality LED Display
- 960*960, 640*640 LED Display Cabinet
- P2.5mm, P3.076mm, P4mm, P5mm, P6.67mm, P8mm, P10mm
- Support 3D Display
- IP65 protection level on rear and the front side
- 3 Years Warranty and 5% Spare Part
Two Size Available
With 960*960*90mm and 640*640*90mm sizes available.
Lightweight and Thin
Portable and good stability with weight of only 13kg for 640*640 cabinet and 27kg for 960*960 cabinet and the thickness of 90mm.
The feature of lightweight makes the LED display easy to carry,
transport and install, saving a lot of money on your labor costs.
Actively dissipate heat
With the thermal conduction channel, Green environment,Energy saving and long service life,
No air conditioner, no fan, less maintenance, low power consumption, low heat

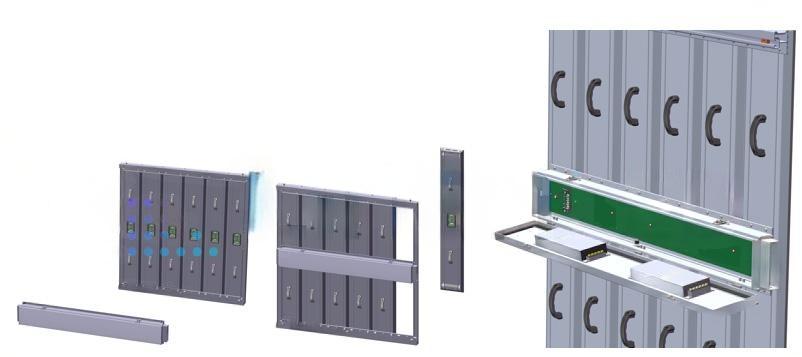

Front and rear maintain
Lightweight and integrated rotary lock pin design, realize the rear and front install and maintenance,Simplify operation, and reduce construction difficulty. Remove the panel from the front side and than remove the cover plate than the power ＆ control box can be maiontained easily
Easy installation
The outer frame steel frame is designed with self guiding positioning plate, which is easy to assemble and greatly improves the flatness

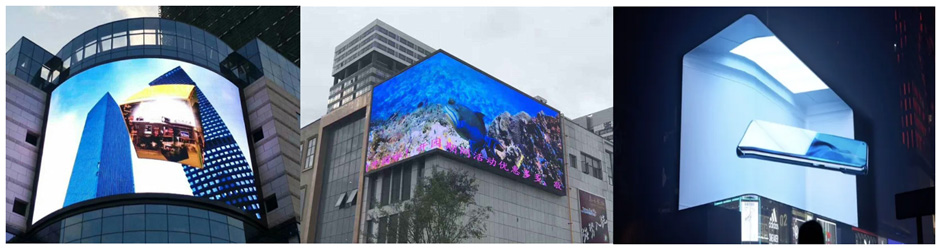

Support 3D Display
It can be spliced into any arc and any angle, has more installation scenarios and wider application
Light integrated power ＆ control box
Light metal alloy integrated power ＆ control box, lightweight, easy to maintain.
Integrated protective junction box, with neat threading and high water resistance.
Easy to dissipate heat, no need for air conditioning, has strong weather resistance

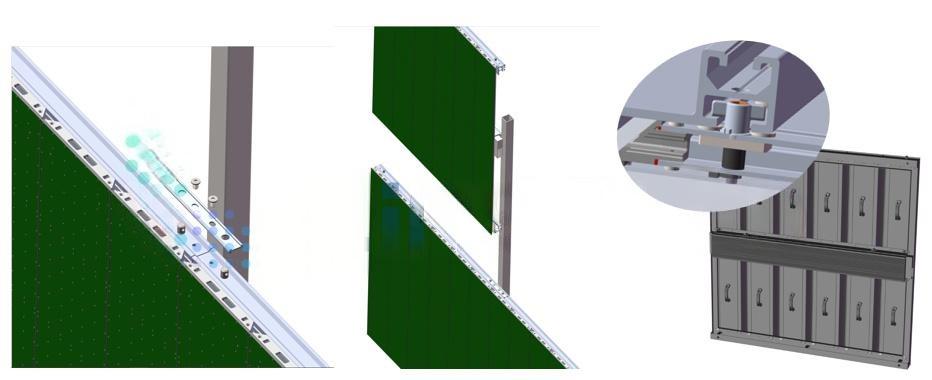

Automatic positioning
The design of the steel frame has the upper and lower positioning guide plates and positioning screws more Convenient. When the panel fixed on the steel frame,an adjustable range of 7mm above and below shall be reserved, with high fault tolerance and easy assembly
Specifications
| Pixel pitch | 2.5mm | 3.076mm | 4mm | 5mm | 6.67mm | 8mm | 10mm |
|---|---|---|---|---|---|---|---|
| Panel Size | 640*640*90mm | 960*960*90mm | |||||
| Panel Resolution | 256x256dots | 208x208dots | 240x240dots | 192x192dots | 144x144dots | 120x120dots | 96x96dots |
| LED | 1415 SMD | 1415 SMD | 1921 SMD | 1921 SMD | 2727 SMD | 2727 SMD | 2727 SMD |
| Unit Size | 640*160mm | 960*160mm | |||||
| Unit Resolution | 256x64dots | 208x52dots | 240x40dots | 192x32dots | 144x24dots | 120x20dots | 96x16dots |
| Weight | 13KG±2 | 27KG±2 | |||||
| Weight | Light metal alloy material | ||||||
| Service Way | Front and Rear | ||||||
| Brightness | ≥5000 cd/㎡ | ≥6000 cd/㎡ | |||||
| Max Power consumption | 600W/㎡ | 500W/㎡ | |||||
| Avg Power consumption | 200W/㎡ | 150W/㎡ | |||||
| Working voltage | 100-240V / 50-60Hz | ||||||
| Operating Environment | Outdoor | ||||||
| Refresh rate | ≥3840Hz | ||||||
| Operation power voltage | 100-240V / 50-60Hz | ||||||
| Operational temperature | -40°C to +60°C / 14°F to 104°F | ||||||
| Operational humidity | 10-80% | ||||||
| IP rating | IP65 | ||||||
| Warranty | 3 years standard product warranty | ||||||
Tech Support
Xingwei LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
